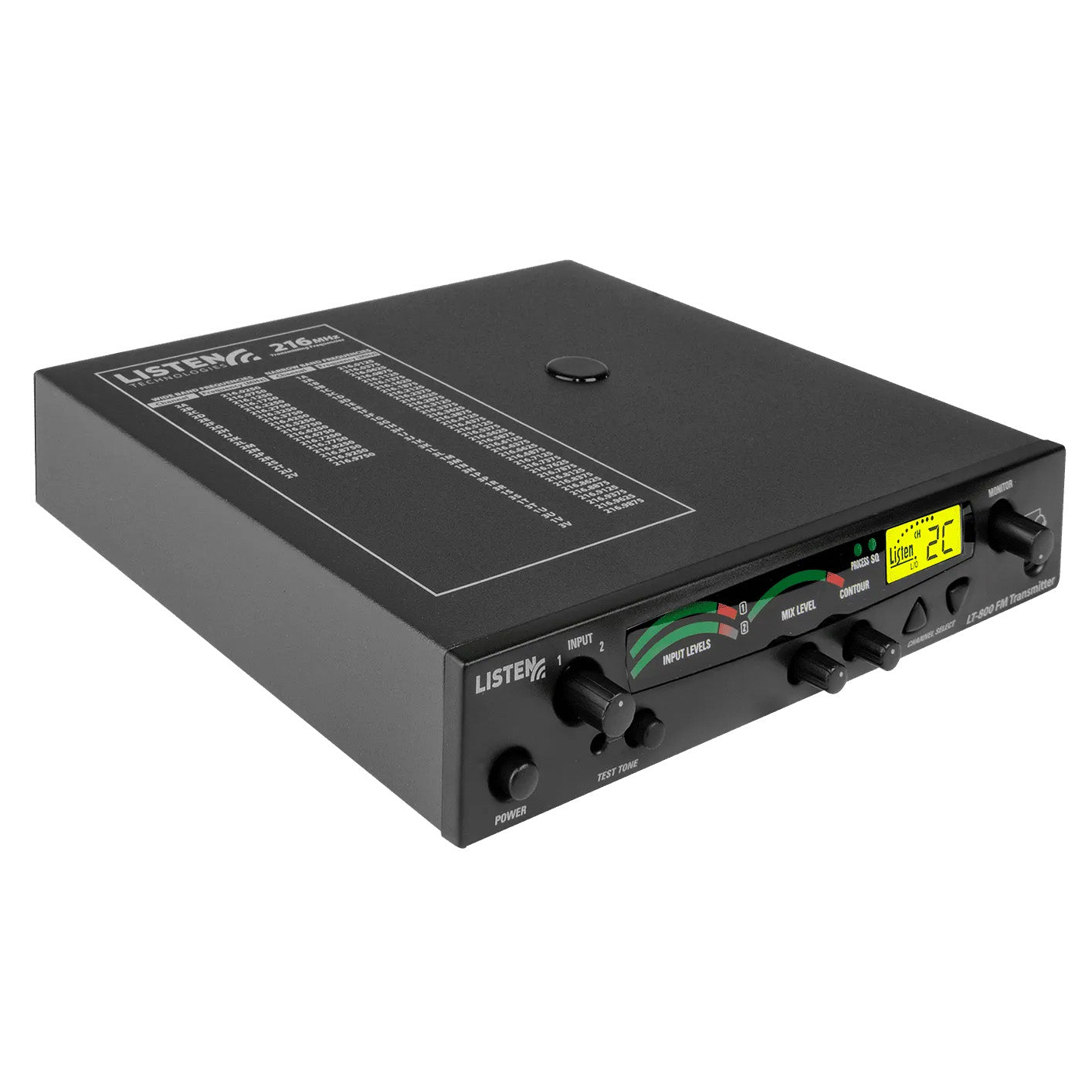

Listen Technologies LT-800-216-01 Stationary RF Transmitter

Thanks to its outstanding audio quality, the Listen Technologies LT-800-216-01 Stationary RF Transmitter can be used in a variety of applications. The LT-800 is connected to your main audio system, broadcasting a high quality audio signal to belt pack receivers, stationary receivers, or wireless speaker / receivers. The end result, your audience can hear and understand the presentation better because of improved speaker placement or because they have their own belt pack and headset. The signature Look & Listen LCD shows channel, lock, programming and RF power.

Listen Technologies LT-800-216-01 Features

• Look & Listen (TM) LCD display for quick channel, programming, and channel lock status information
• Balanced and unbalanced audio inputs allow for use with any audio source
• Built-in auto processor optimizes audio (voice or music) prior to transmission
• 57 available, selectable channels
• VU level meter and test tone for simple installation and set up
• 30-day, no-obligation demonstration available for your venue or business

• LT-800 Stationary RF Transmitter (216 MHz)1
• LA-207 Power Supply for LT-8001
• Line Cord1
• Quick Reference Card1

• Audio
  • Frequency Response: 50 Hz - 15 kHz (±3 dB)
  • Signal-to-Noise Ratio: SQ enabled 70 dB, SQ disabled 50 dB
  • Audio Input 1: Rear panel, one (1) Female XLR or 1/4 in combo connector, balanced, 0 / -55 dBu (line/mic) nominal input level adjustable, -30 / +21 dBu (line/mic) maximum input level, impedance 20k / 1k ohm (line/mic), phantom power +12 VDC
  • Audio Input 2: Rear panel, two (2) phono connectors, unbalanced, -10 / +10 dBu nominal input level adjustable, +30 dBu maximum, impedance 100k ohm
  • Audio Processing: Compression can be turned on/off, slope internally adjustable from 1:1 to 4:1, default 2:1
  • Contour Cuts and boosts frequencies above 5 kHz
  • Distortion: < 2% total harmonic distortion (THD) at 80% deviation
  • Audio Output: Input 1 and input 2, mixed output (rear panel), two (2) phono connectors, unbalanced, -10 dBu nominal output level, +15 dBu maximum, impedance 10 ohm
  • Headphone Output: Front panel, one (1) 3.5 mm (0.14 in.) stereo connector, unbalanced, adjustable output level, +3 dBu maximum, impedance 10 ohm
• Controls
  • User Controls: Front Panel: Power, test tone on/off, channel up/down, input levels, mix level, contour, monitor volume controlRear Panel: Input 1 Level, (Line, Mic, Mic-Phantom Power), Input 2 level (-10 / +10 dBu), RF power level (low, mid, high)
  • Internal Adjustments: Compression ratio for audio processor
  • Programming: SQ on/off, process on/off, channel lock
• Indicators
  • LCD: Channel designation, lock status, RF power level, programming (front panel)
  • Audio Input Status LEDs: Indicates Input 1, Input 2, and Mix audio levels; 10 segment LED's (8 green, 2 red)
  • Processing: Indicated by a green LED when on (front panel)
  • Test Tone: Red LED illuminates when test tone is enabled
  • RF Power: Indicated on the LCD (low, mid, high)
• RF
  • Frequency Range: 216.0125 - 216.9875 MHz
  • Number of Channels: 19 wide band, 38 narrow band
  • Frequency Accuracy: ± .005% stability +32º to +122 ºF (0º to +50 ºC)
  • Antenna Type: Various antennas available
  • Transmitter Stability: 50 PPM
  • Transmission Range: Up to 3,000 ft. (914 m)
  • Antenna Connector: BNC, 50 Ohms (Use RG-58 < 50 ft or RG-8 > 50 ft)
  • Output Power: 100 mW (max allowed by FCC)
  • Number of Simultaneous Transmitters: Up to 5
• Power
  • Power Supply: In line power supply, Listen part number LA-207 (Line cord is determined by the each Country's AC power standards)
  • Power Supply Input: 100-240 VAC, 50-60 Hz, 0.4 A
  • Power Supply Output: 12 VDC, 1.3 A, 15.6 W
  • Power Supply Connector: 0.02 in (5.0 mm) OD, 0.01 in. (2.5 mm) ID, barrel type
  • Compliance: UL, CE, GS, TÜV, RoHS
• Physical
  • Dimensions (W x H x D): 8.5 x 1.75 x 9.13 inches (21.5 x 4.5 x 23 cm)
  • Color: Dark Grey with white silk screening
  • Unit Weight with Power Supply: 3.5 lbs. (1.6 kg)
  • Shipping Weight: 6 lbs. (2.7 kg)
  • Rack Mounting: One (1) rack space height, 1/2 rack space wide. One (1) or two (2) transmitters can be mounted in one rack space, optional rack mount (LA-326)
  • Weight: 2.6 lbs (1.2 kg)
• Environmental
  • Temperature - Operation: -10 ºC (14 ºF) to +40 ºC (104 ºF)
  • Temperature - Storage: -20 ºC (-4 ºF) to +50 ºC (122 ºF)
  • Relative Humidity: 0 to 95% relative humidity, non condensing
• Compliance
  • Safety: RoHS
  • RF: FCC Part 15, Part 90, Industry Canada
