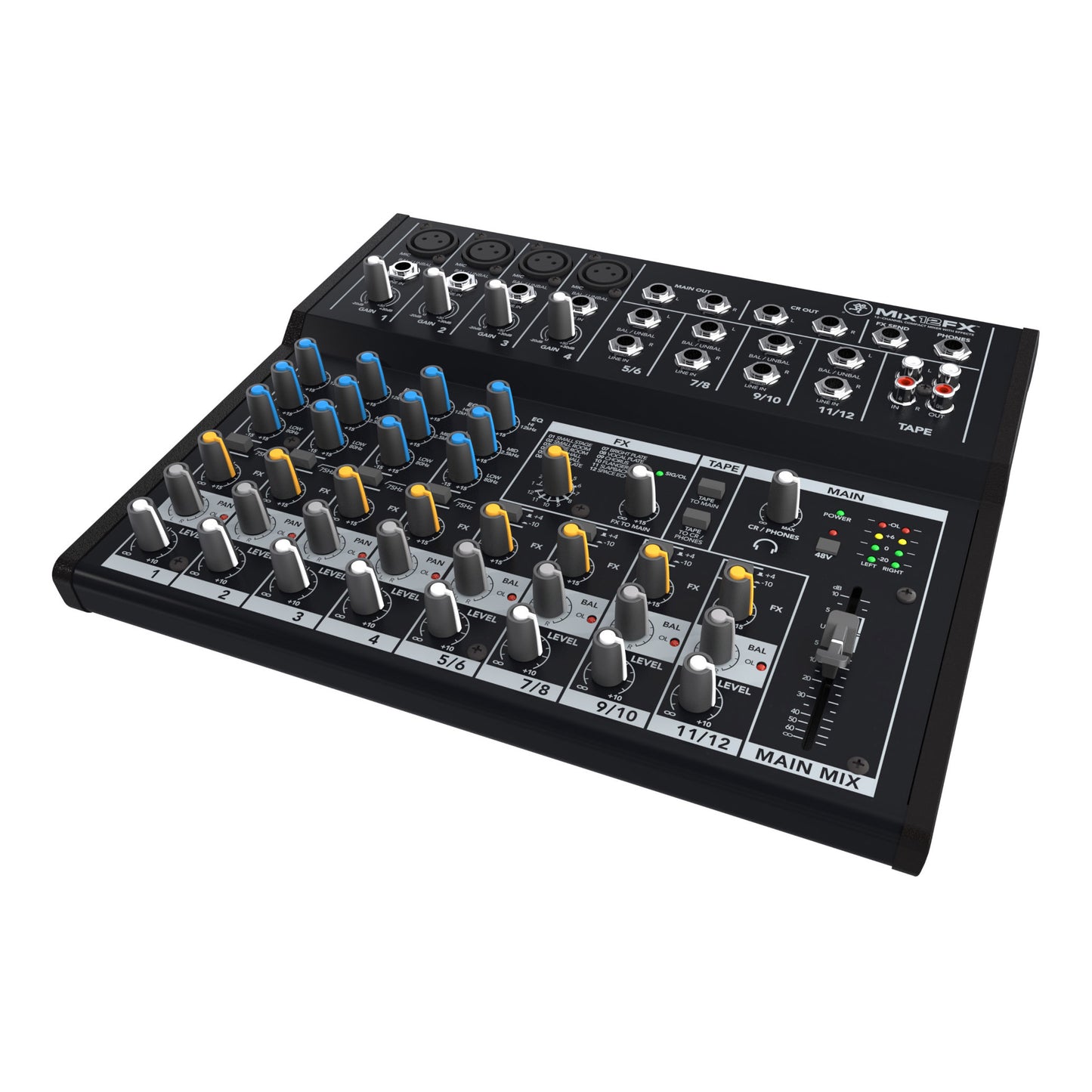

Mackie Mix12FX 12-Channel Compact Mixer with FX

Mackie Mix12FX 12-Channel Compact Mixer with FX delivers the quality you expect from the world leader in compact mixer design. The professional and affordable Mix Series mixers feature high quality components, a rugged metal chassis and features designed for a variety of applications. With Mackie preamps and proven high-headroom, low-noise design, Mix delivers great sound from any source.

Using quality components throughout, including the proven sonic quality of Mackie mic preamps, Mix series mixers deliver high-headroom, low-noise performance that maintains audio quality from any source and always sounds great. With the right mix of I/O, EQ and routing, Mix Series mixers provide features like phantom power and dedicated FX sends offer flexibility to dial in a great mix.

Mackie Mix12FX Features

• 12-channel compact mixer with proven high-headroom, low-noise performance
• 4 mic/line input with studio-level audio quality
• 4 stereo 1/4” line inputs
• Great-sounding integrated effects including reverbs, choruses, and delays
• Dedicated stereo RCA inputs/outputs for playback or recording
• 60mm fader for main L/R outputs
• Headphone output with separate volume control
• Rugged, reliable design built to last
• Extremely compact and portable

• Mix12FX 12-channel compact mixer with FX1

• Noise Characteristics
  • 20Hz - 20kHz bandwidth, 150Ω source impedance
  • All Outputs, Master Levels and Channel Levels Off: -100 dBu
  • All Outputs, Master Levels Unity, All Channel Levels Off: -90 dBu
  • All Outputs, Master Levels Unity, 1 Channel Level Unity: -85 dBu
• THD (mic input to main output)<0.01% @+4 dBu output
• Attenuation and Crosstalk (20Hz - 20kHz bandwidth)
  • Inputs to Outputs @ 1kHz: -85 dB
  • Main Mix Off @ 1kHz: -80 dB
• Frequency Response (mic input to any output, gain @ unity)+0, -1 dB, 20Hz to 30kHz
• EIN (mic in to insert send out, max gain)150Ω termination: -122 dBu
• CMRR (mic in to insert send out, max gain, 1kHz)better than 70 dB
• Max. Levels
  • Mic Inputs (XLR): +19 dBu
  • All Other Inputs: +21 dBu
  • All Other Outpus: +21 dBu
• EQ
  • High Shelving: ±15 dB @ 12kHz
  • Mid Peaking: ±15 dB @ 2.5kHz
  • Low Shelving: ±15 dB @ 80Hz
  • Low Cut Filter: 18 dB/octave, -3dB @ 75Hz
• AC Power Requirements
  • Input (US): AC120V~,60Hz
  • Output (US): AC18V~1000mA
• Operating Temperature32°F to 104°F (0°C to 40°C)
• Dimensions (HxWxD)2.1" x 11.7" x 9.6"
• Weight3.7 pounds
