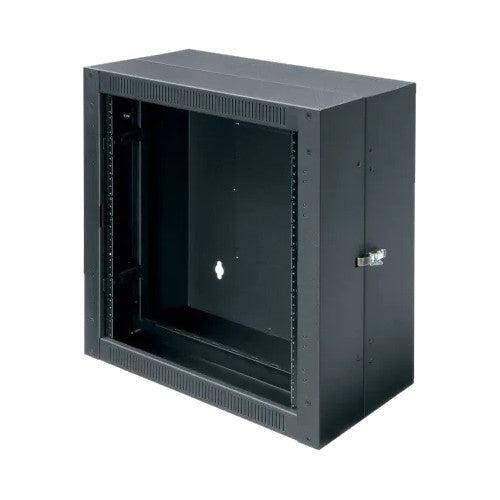

SWR Series shallow sectional wall racks are ideal for wall mounting interconnect panels in stage and performing arts, house of worship, and broadcast applications.
The shallow front section includes adjustable rack-rail for mounting 19” connector panels and shallow shelves, while the generous 7” deep back-pan features conduit entry LKO’s top and bottom. This versatile shallow wall rack does double duty as both a connector panel and a generous pull-box that swings the connector panels out of the way during cable pulling. Available in two racking heights; accepts universal solid, vented, or plexi front doors.
Middle Atlantic SWR Features
- Front section can be easily reversed for left or right hand swing
- Latch can be mounted top or bottom to allow side-by-side mounting
- Backpan features conduit entry LKO’s top and bottom
- Standard front adjustable 10-32 threaded rackrail with numbered spaces
- SWR Series Shallow Wall Rack1
- Dimensions
- Depth: 12.5 in (31.8 cm)
- Height: 25.1-32.1 in (63.8-81.6 cm)
- Primary Package Weight: 49.2-50 lbs (22.3-22.7 kg)
- Rack Units: 12-16 RU
- Usable Depth: 11.9 in (30.2 cm)
- Usable Height: 21-28 in (53.3-71.1 cm)
- Weight Capacity: 150 lbs (68 kg)
- Width: 23.4 in (59.5 cm)
- Federal Ops Country of Origin Mexico
- Rack Rail Type 10-32
- Certifications TAA Compliant
