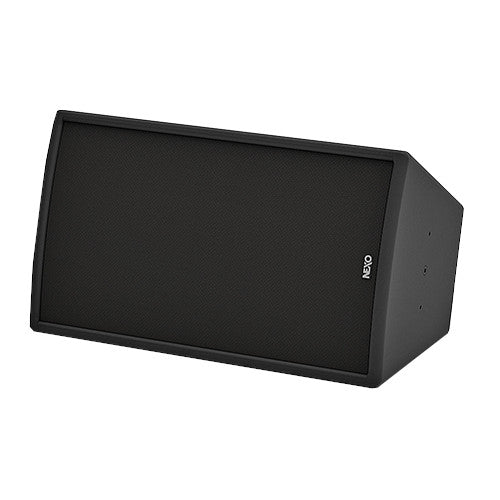

Measuring 423mm high x 250mm wide x 227mm deep and weighing 8.1Kg, the ePS8 combines a high excursion 8-inch LF driver with a 1.4-inch voice coil HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch plywood. Achieving a peak SPL of 128dB with a frequency range of 80Hz to 20kHz, the ePS8 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.
NEXO EPS8 Features
- Available in black, white, and customizable finishes (black finish pictured only)
- High power (128 dB peak) point source loudspeaker for fixed installation
- Lightweight (8.1kg / 17.9lbs) design
- Robust 15 mm Birch plywood enclosure
- NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
- IP55 protection level
- Comprehensive range of accessories for deploying in a wide variety of fixed installation applications
- EPS8 8-Inch Passive Installation Speaker1
- Frequency Response @-6 dB 80 Hz to 20 kHz
- Sensitivity 1W@1m 100 dB SPL Nominal
- Peak SPL@1m 128 dB
- Vertical Dispersion +25°/-30°
- Horizontal Dispersion 50° to 100° Asymmetrical
- Crossover Frequency 80 Hz, 120 Hz
- Nominal Impedance 8Ω
- Recommended Power 350 to 570 Watts / 8 Ohms
- Number of ways 2 ways passive
- LF Component 8" 8 Ohms long excursion neodymium driver
- HF Component 1.4" diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn
- Connectors 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles)
- Compatible cables section Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section
- Compatible cables outside diameter Cable with maximum outside diameter of 11 mm
- Rigging points 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
- Material 15 mm thick birch plywood body and galvanized grille
- Finish Black structural paint (RAL9005 or Custom RAL upon request)
- Front Finish UV & Fire resistant acoustic fabric
- Height x Width x Depth 423x250x227mm (16.7x9.8x8.9")
- Net Weight 8.1 kg (17.9 lbs)
- Operating temperature range 0°C - 40 °C (32°F - 104°F)
- Storage temperature range -20°C - 60°C (-4°F - 140°F)
- IP Rating IP55
- System Operation
- Recommended powering solution: NXAMP4x1mk2 Powered TDcontroller: Up to 3 x ePS8 per channel
- Optional powering solution
- DTDcontroller + DTDAMP4x0.7: Up to 2 x ePS8 per channel
- DTDcontroller + DTDAMP4x1.3: Up to 2 x ePS8 per channel
- NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS8 per channel
- NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS8 per channel
In The Box
- Sensitivity 1W@1m 100 dB SPL Nominal
