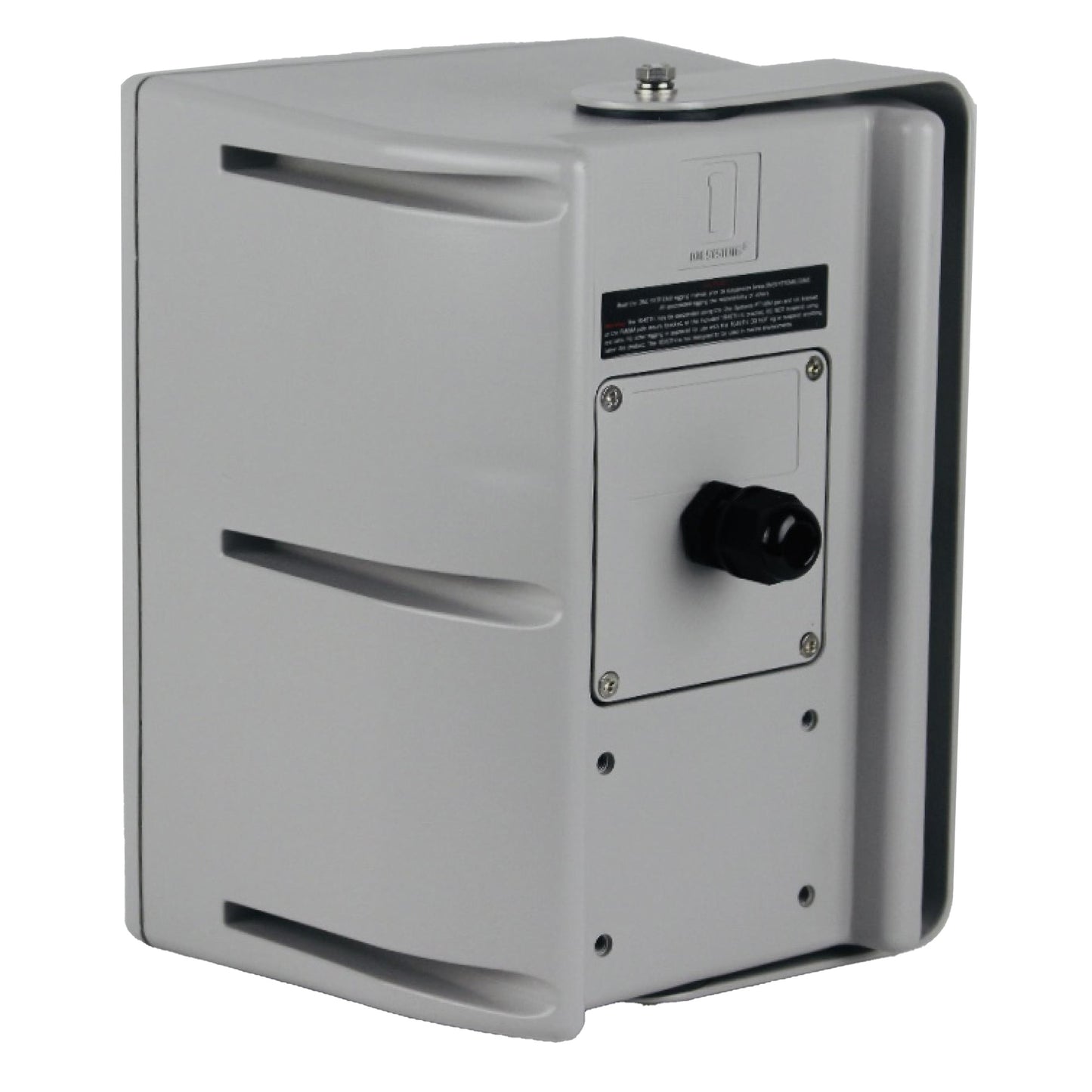

The One Systems 106.STH™ is a premium-grade 6.5" two-way loudspeaker suitable for indoor and outdoor professional audio applications where high intelligibility and accuracy are required. The system’s direct-radiating transducers include a 6.5" woofer with a large-sized voice coil that provides high reliability and excellent linearity. Its HF section utilizes a small-format compression driver with a Low-Q 110o x 70o waveguide. The 106.STH is installer-configurable for Lo-Z (8 ohm) or Hi-Z (70.7 / 100 volt) operation using separate input barrier strips. The 106.STH’s rugged thick-walled enclosure, specially-built components and its stainless steel rigging hardware ensures long life in direct weather applications. The 106.STH U-Bracket is comprised of structural steel with a zinc powder coating. Wall and pole mount pan/tilt brackets are available for added installation flexibility.
One Systems 106.STH-GRAY Features
- Stainless steel rigging points
- Dual layer zinc rich powder coat utilized on grille and included U-Bracket
- Combined 70.7V/100V/Direct operation
- No performance degrading passive protection devices
- 80W continuous power handling in direct (8 ohm) operation
- Highly suitable for inland direct weather environments
- Optional PM2/M pole mount system and PT10/M pan/tilt bracket available
- IEC 529 IP 56 ingress protection
- 106.STH-GRAY 6.5” Silver Series Speaker1
- U-Bracket1
- Frequency Response/span>90Hz-20kHz
- Coverage Pattern/span>110 (H) x 70 (V)
- Crossover Frequency/span>1.5kHz
- System Sensitivity 1w/1m/span>87dB
- Power Handling/span>80w
- Input Impedance (Lo Z)/span>8
- Input Taps (Hi Z)/span>50/25/12.5w
- Weight/span>11.4 lbs (5.2kg)
- Dimensions (Not including U-Bracket)12.3x7.3x8.5" (312x185x217.1mm)
