The 312.HC is a 3-element vertical array that delivers very high output vocal material and wide-range music reproduction with superior intelligibility. Thanks to its clever design, the 312.HC’s array maintains its 70-degree vertical radiation pattern to below 300 Hz, thereby making its performance perfect for long-throw outdoor applications as well as for reverberant indoor spaces such as arenas and houses of worship. The 312.HC's 1,200 watts continuous power handling and its input sensitivity provides high output capability. The 312.HC’s tough injection-molded enclosure is optimized for high UV exposure and long life in harsh weather environments. Everything from the 3-layer “rain shield” stainless steel grille, the enclosure’s material, the weather covered inputs and its multiple 316 marine-grade stainless steel suspension points are capable of handling direct weather exposure for years while providing phenomenal performance. If your application requires ultra high output, long throw, full-bandwidth response with incredible pattern control, the 312.HC is a unique solution.
One Systems 312.HC Features
- Available in black and white (white not pictured)
- 3-Element 12” Shaded Vertical Array
- Marine-grade (316) stainless steel rigging points
- Very High SPL extended bandwidth response
- EC 529 IP 45 (IP 56 with vent plugs)
- Optimized for high-intelligibility and vocal articulation
- Multiple M10 rigging points
- Pan and Tilt (PT76/M), Pole Mount (PM4/M) rigging brackets
- 312HC-U/M U-bracket available (sold separately)

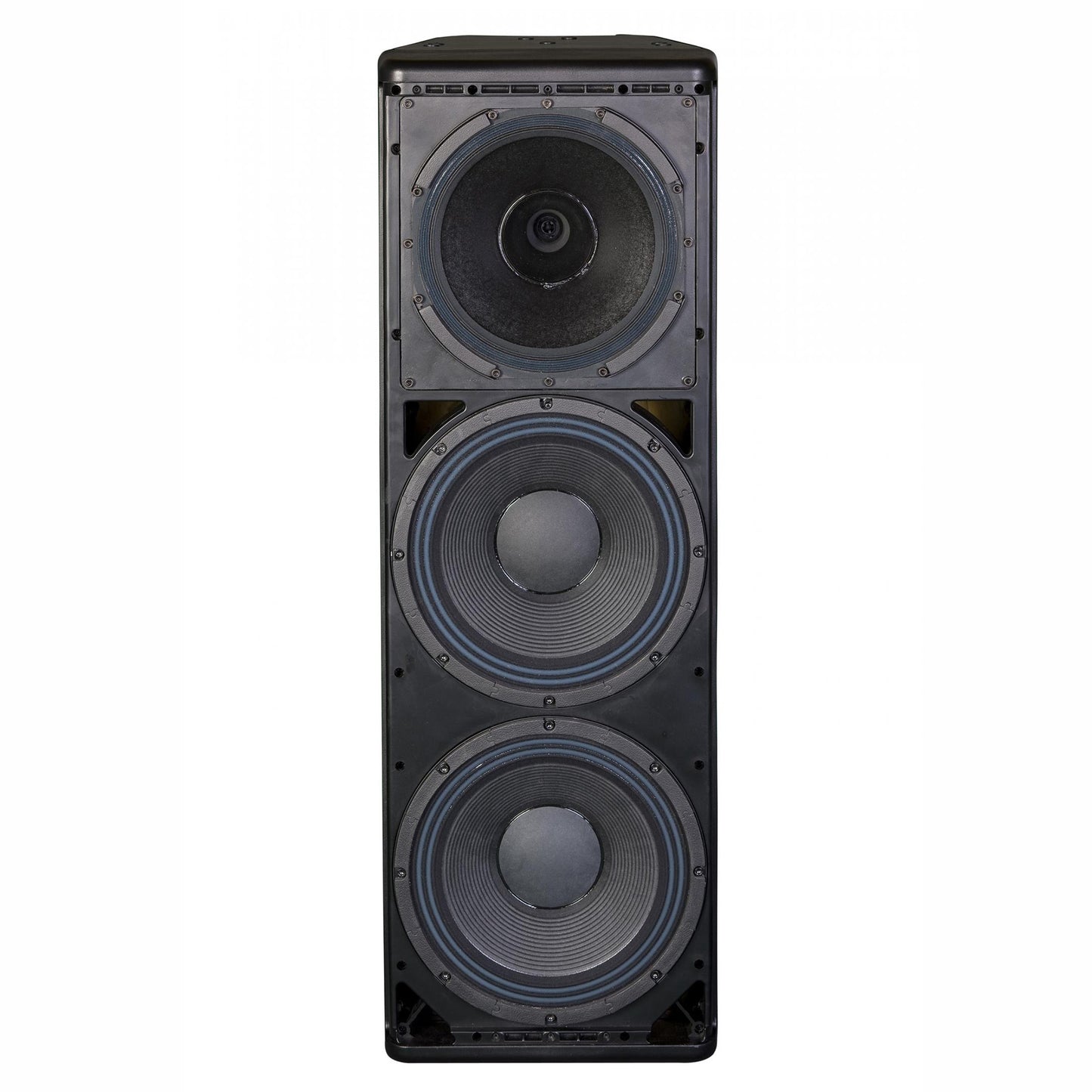

- 312.HC Platinum Hybrid Series Speaker1
- Frequency Response75Hz – 16kHz
- Coverage Pattern60 degrees conical
- Passive Crossover Frequency400HZ and1800 Hz (Shaded Vertical Array)
- Inputs4-position barrier
- System Sensitivity (1W/1m)99dB
- Power Handling
- 1200W Continuous
- 2400W Program
- 4800W Peak* (*All system power handling rating are amplifier headroom dependent)
- Nominal Impedance4-ohms
- Low Frequency
- ONE SYSTEMS 12I/O-1 V4 and 12I/O-2 V4
- ONE SYSTEMS 12CXVII
- High FrequencyModified large format compression driver
- Suspension/Mounting Points19 each M10
- Weather PerformanceIEC 529 IP 45
- Dimensions (HxWxD)43.3x14.5x16.3" (1100x368x414mm)
- Net Weight93.5 lbs (42.2kg)
