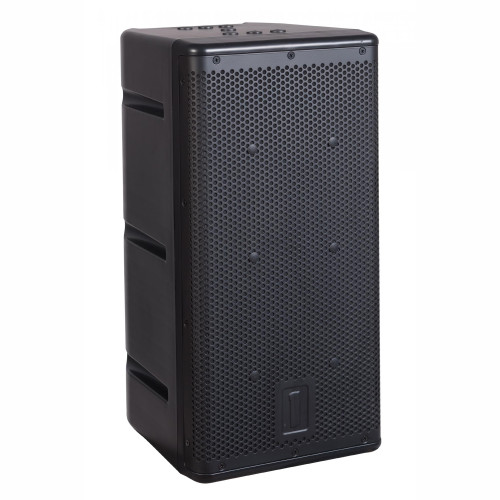

The CFA-2 HTH is a direct weather design that features a three layer stainless steel grill assembly. The enclosure design is a laminated fiberglass construction with high safety factory structural rigging points molded in the enclosure shell.
The CrossField Array-2 (CFA2.HTH) is a two-way long-throw speaker that provides very high intelligibility, wide frequency response and prodigious acoustic output. Unlike many other "long throw" speakers, the CFA2.HTH's configuration of 6 x large-format drivers are direct-radiators instead of being horn loaded. This design provides far better intelligibility and wider, smoother response that reproduces both voices and music with a high level of accuracy. The CFA2.HTH's combination of high sensitivity and prodigious power handling provides high acoustic output capability. To add to its installation flexibility, the CFA2.HTH's HF array is rotatable and its LF array is a 2 x 2 configuration permitting the enclosure to be oriented horizontally or vertically. The enclosure is made of hand-laminated, gel-coated fiberglass with fully reinforced M10 suspension inserts. The CFA2.HTH's enclosure is very compact for a system that provides such high output, intelligible, full-range audio. To add to its installation flexibility, a range of optional U-Brackets, pan / tilt and pole mount brackets are available. For long-throw applications, the CFA2.HTH's is an excellent solution.
One Systems CFA2.HTH-GRAY Features
- Very High Intelligibility
- 316-grade stainless steel rigging
- Long Throw/High Acoustic Output
- Fully Rotatable High Frequency Waveguide
- IP 56 Direct Weather Rated
- Double Large Format High Frequency Drivers
- 4 x 10” (254mm) Low Frequency Long Throw
- Array (2x2 array configuration)
- Multiple Fly Points and Rigging Accessories
- CFA2.HTH-GRAY Platinum Hybrid Series Speaker1
- Frequency Response60Hz – 16kHz
- Coverage Pattern55º x 30º Fully Rotatable
- Passive Crossover Frequency1500 Hz
- Inputs4-Position Barrier Strip
- Input Impedance4 ohms
- System Sensitivity (1 Watt / 1 Meter)104dB
- Maximum Calculated Output (Peak Power/Peak Pressure)
- 134.8dB @ 1 meter* Continuous
- 140.8dB@1 meter
- Power Handling
- 1200W continuous, 2400W program, 4800 watts peak*
- NOTE: All system power handling rating are amplifier headroom dependent
- Nominal Impedance4-ohms
- System Components
- Low Frequency: 4 each 10 in (254 mm)
- High Frequency: 2 each Large Format Titanium
- Compression Drivers
- Suspension/Mounting Points9 each M10
- Weather Performance
- IEC 529 IP 56
- Mil Spec 810
- Dimensions (HxWxD)34.5x22.5x17.6" (876.5x572.6x446.3mm)*
- Net Weight133.6 lbs (60.6 kg)
- Optional Accessories
- Pole Mount System PM4/M; PT76/M
- (new 2012); M10 Forged Shoulder
- Stainless Steel “U” Bracket and strap kit
- Notes*Based on RMS sound pressure levels. +3dB may be added for peak sound pressure levels
