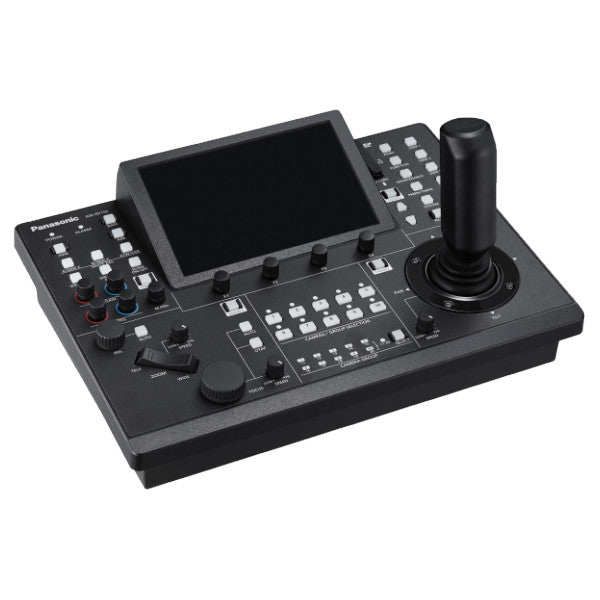

Panasonic AW-RP150 Touchscreen Remote PTZ Camera Controller

The AW-RP150 will be the newest remote camera controller to compliment Panasonic's comprehensive professional PTZ camera lineup. It has the same great functionality of the AW-RP120 and AW-RP50, and joins the lineup with significant improvements over those models, including a new one-hand operation joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting.

Panasonic AW-RP150 Features

• Large touchscreen for easy usability
• New joystick for one-handed operation
• Simplified PTZ camera presets and tracing memory
• Intuitive design elements based on direct feedback from everyday robotic camera operators 3G-SDI Active Through Output, 5 x RS-422, LAN PoE+, 2 x GPIOs

• AW-RP150 Touchscreen Remote PTZ Camera Controller1

• Power Requirements 12 V DC (10.8 V to 13.2 V)
• Current consumption
  • 1.0 A (Connector Input)
  • 0.6 A (PoE+ power supply)
• Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
• Ambient Operating Humidity 20% to 90% (no condensation)
• Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
• Weight Approx. 3.2 kg (7.05 lb)
• Dimensions (WxHxD)Excluding protrusions: 13-15/32x7x9-21/32" (342x178x245 mm)
• Controller Supported Equipment
  • IP/RS422
  • AW-UE150W/K, AW-HR140*1, AW-HE130W/K*1, AW-HN130W/K*1, AW-UE70W/K*1, AW-UN70W/K*1, AW-HE40 Series*1, AW-HN40HW/HK*1, AW-HE38HW/HK*1, AW-HN38HW/HK*1
• Input/Output Connector
  • INPUT
  • DC 12 V
  • IN XLR 4-pin
  • 3G-SDI IN
  • SMPTE292 / 75 Ω (BNC x 1)
  • Supported formats: 1080/59.94p*2, 1080/50p*2, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF
  • OUTPUT
    • ACTIVE THRU OUT
    • SMPTE292 / 75 Ω (BNC x 1)
  • INPUT/OUTPUT
    • IP CONT:
      • 100BASE-TX
      • PoE+ input
      • Connection cable: LAN cable, max. 100 m (328 ft) - When connecting the unit via a switching hub: Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
      • When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
    • SERIAL CONT (RJ-45)
      • RS-422 (control signals for remote cameras), TALLY OUT
      • Connecting cable: Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft)
      • TALLY OUT: Open collector output (negative logic)
      • Maximum voltage resistance DC 24 V, Maximum current 50 mA
      • TALLY/GPIO 1: D-sub 25-pin, female, inch thread
      • TALLY IN : 10 inputs (for receiving photocoupler signals)
      • GPI : 6 inputs (for receiving photocoupler signals)
      • GPIO : 5 inputs (for receiving photocoupler signals) or 5 outputs (open collector outputs, negative logic) - Input/output switched with menu settings
      • GPIO 2: D-sub 25-pin, female, inch thread
      • GPI : 10 inputs (for receiving photocoupler signals)
      • GPIO : 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic): Input/output switched with menu settings
      • Reserve connectors: 2 connectors (For future expansion feature)
    • LCD Display: 7-inch Touch Panel GUI Monitor (WVGA (800×480) )
    • SD Memory Card slot: SDHC / SDXC Memory Card Slot x 1
• Connection
  • No. of Connectable Cameras: 200 (IP), 5 (RS422)
  • No. of Camera Selection Buttons: 10
  • No. of Camera Groups: 20 (10 units per 1 group)
• Memory
  • Preset Memory: No. of memory : presets 100
  • Tracing Memory: No. of cameras : Cam1 to Cam10; Recording time, no. of memory settings: Maximum 5 min. total per camera, maximum of 10 settings per camera
• Other Functions
  • No. of User Assignable Buttons: 6 + up to 10 on the LCD menu
  • Pan / Tilt Speed Adjustment: 7 levels
  • Tally LED display color: green / red
  • Note: *1: Connection with the AW-RP150GJ is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. *2: Level-A support only.
  • PoE+: IEEE802.3at standard: DC 42 V to 57 V (Camera Input)
