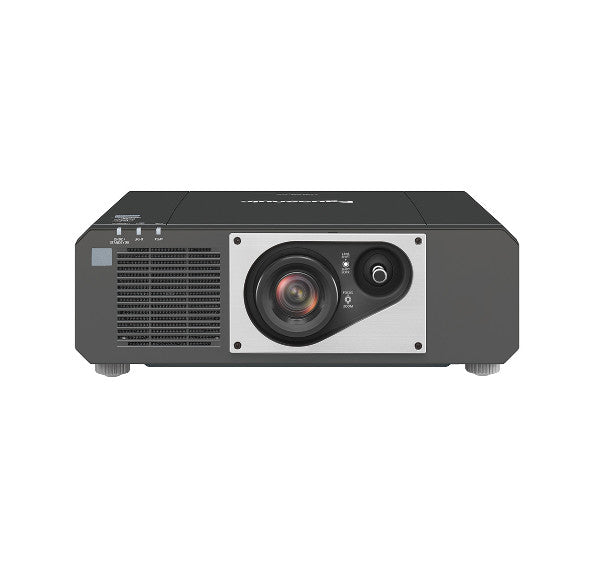

Panasonic PT-FRQ50U 5200 Lumen 1-Chip DLP 4K Laser Projector

The 5,200 lm PT-FRQ50 1-Chip DLP™ 4K laser projector delivers smooth, detailed images for an insightful visual experience.

Panasonic PT-FRQ50U Features

• 1-Chip DLP™ laser projector, 5,200lm​ brightness
• 4K (3840 x 2160) output resolution, ideal for museum exhibitions, education, and corporate offices
• 2.0x zoom lens and wide V/H Lens Shift (V: +71 %, -48 %, H: +34 %, -27 %)
• Preactivated upgrade kit for Geometry Manager Pro
• Supports 240Hz/1080p high frame rate with minimal input-to-output latency

• PT-FRQ50U 5200 lumen 1-chip DLP 4K laser projector1
• Wireless remote control unit1
• Power cord1
• AAA battery2

• Projector Type1-Chip DLP™ projector
• DLP™ chip | Panel size16.5 mm (0.65 in) diagonal (16:9 aspect ratio)
• DLP™ chip | Display methodDLP™ chip x 1, DLP™ projection system
• Light Sourcelaser diodes
• Resolution4K (3840 x 2160 pixels) (With Quad Pixel Drive)
• Screen Size (diagonal)1.02–7.62 m (40–300 in), 16:9 aspect ratio
• Lens2.0x manual zoom (throw ratio: 1.46–2.93:1), manual focus, F 2.0–3.4, f 21.5–43.0 mm
• Lens Shift (from the origin point of the lens mounter)
  • Horizontal: +34 %, -27 % (manual)
  • Vertical: +71 %, -48 % (manual)
• Keystone Correction Range
  • Vertical: ±40°
  • Horizontal: ±20°
• Terminals | SERIAL IND-sub 9-pin (female) x 1 for external control (RS-232C compliant)
• Terminals | LANRJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
• Power SupplyAC 100–240 V, 50/60 Hz; AC 110 V, 60 Hz (Taiwan)
• Power Consumption480W
• Operating Temperature32–113°F (0-45°C)
• Operating Humidity10-80% (no condensation)
• Applicable SoftwareLogo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro 10
• Terminals | DIGITAL LINK/LANRJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input 6 )
• Terminals | Computer InD-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
• Operation noise*235 dB (NORMAL/ECO) / 28 dB (QUIET
• Terminals | MONITOR OUTD-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
• Terminals | USBUSB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory, and for power supply (DC 5 V, maximum 2 A)
• Contrast ratio*220,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. HDMI signal input)
• Center-to-corner zone ratio*290%
• Terminals | Audio In/OutM3 stereo mini-jack x 2
• Time until light output declines to 50 %*420,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
• DLP™ chip | Number of Pixels*11920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.)
• Light Output*2 *35,200 lumens
• Terminals | HDMI IN 1/2HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input 5), CEC supported
• Weight*8approx. 35.5 pounds (16.1 kg)
• Dimensions (WxHxD)*719.63" x 6.63" x 19.38"
• Note
  • *1 If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution
  • *2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped
  • *3 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]
  • *4 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment.
  • *5 4K/60p signals are converted to the projector's resolution upon projection
  • *6 4K/60p signal input is converted to projector's resolution, supports YPBPR 4:2:0 format only
  • *7 With legs fully retracted
  • *8 Average value. May differ depending on the actual unit
  • *9 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F)
  • *10 Feature only available after May 2022
