PreSonus CDL10P 10-Inch Constant Directivity Line Array Speaker

The CDL-series loudspeakers impressed ears around the world, thanks in no small part to their unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. That same constant-directivity performance is available in the CDL10P, a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in a portable design.

Like the CDL12P, CDL10P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.

The CDL10P’s hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL10P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL10P’s integrated 1000W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.

PreSonus CDL10P Features

• Continuous-directivity constant curve array with six 2-inch cone drivers disperses sound 120° horizontally
• 15° vertical directivity can be extended from 30° to 90° with additional arrayable CDL10Ps
• 10-inch long-throw LF transducer with 2.5-inch voice coil
• Low 420 Hz crossover point minimizes comb filtering and enhances line array intelligibility
• 1000 watts Class D power for high SPLs and lightning-fast transient response
• Onboard DSP: 90 Hz High-pass filter, Array Mode (1-6 boxes), Sub Mode (Off, CLD18s, ULT18, or AIR18s)
• 35 mm pole socket with 7.5° downward tilt use with up to two CDL10P on a tripod or atop PreSonus® CDL Sub18 subwoofer

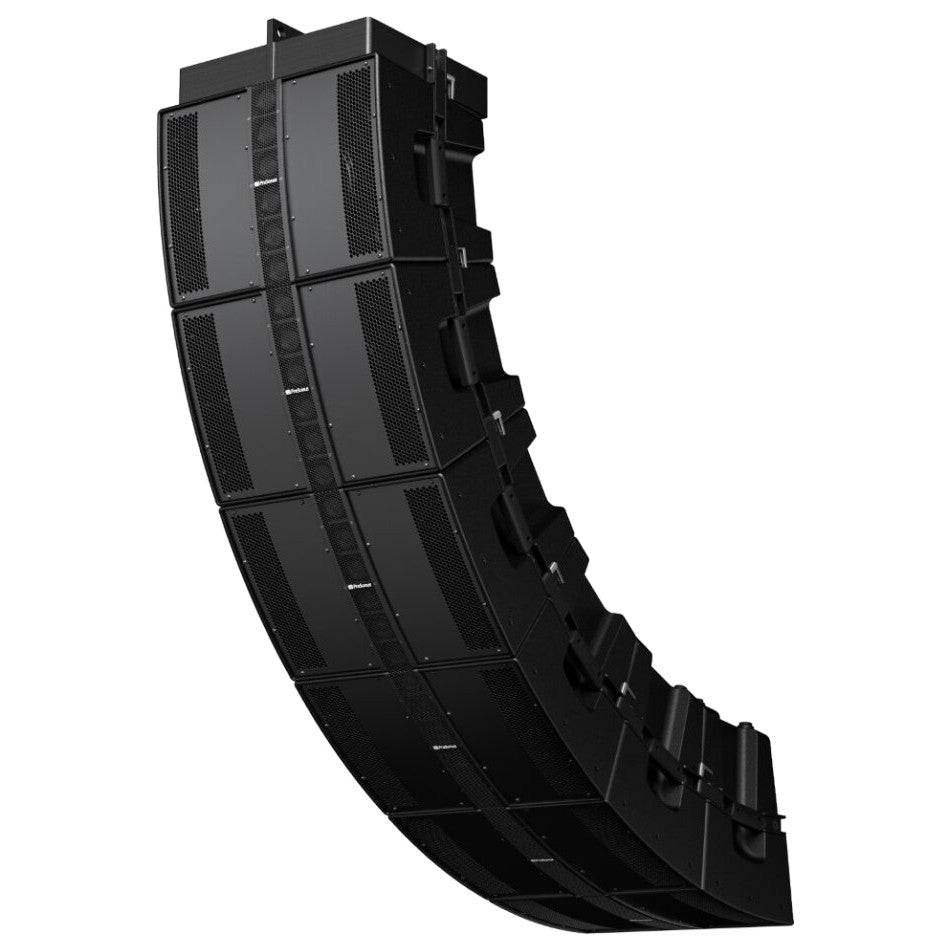

• Integrated flyware to create an array of up to six CDL10Ps
• Signal, -3 dB, Limiter Protection, and Clip Monitoring LEDs
• Rugged, lightweight plastic enclosure and tour-grade, 1.2 mm steel grille – great for touring bands and mobile DJs

• CDL10P 10-Inch Constant Directivity Line Array Speaker1

About Line Arrays at Sound Productions

Take your sound system to the next level with the myriad options from Sound Productions’ line array speakers and subwoofers. These speakers and subs are specifically designed to work together in large groups, perfectly positioned to reach your audience with clear, powerful audio and reliability. Especially for large crowds, line array systems deliver the coverage you need while minimizing distortion—resulting in an immersive audio experience for everyone!

Line arrays are most commonly used to deliver great audio during live performances or presentations. The possibilities are endless when it comes to where and how line array systems are used. Examples include indoor and outdoor stages, concert halls, sports stadiums, houses of worship, clubs, and festivals or special events. Because line array speakers and subs are engineered for optimal clarity, they can also be used in large auditoriums for speech purposes.

No matter what your venue, line array speakers and subwoofers are ideal for permanently installed sound systems of all shapes and sizes. Because you can mount them together, their streamlined installation offers a clean look for your final product.
