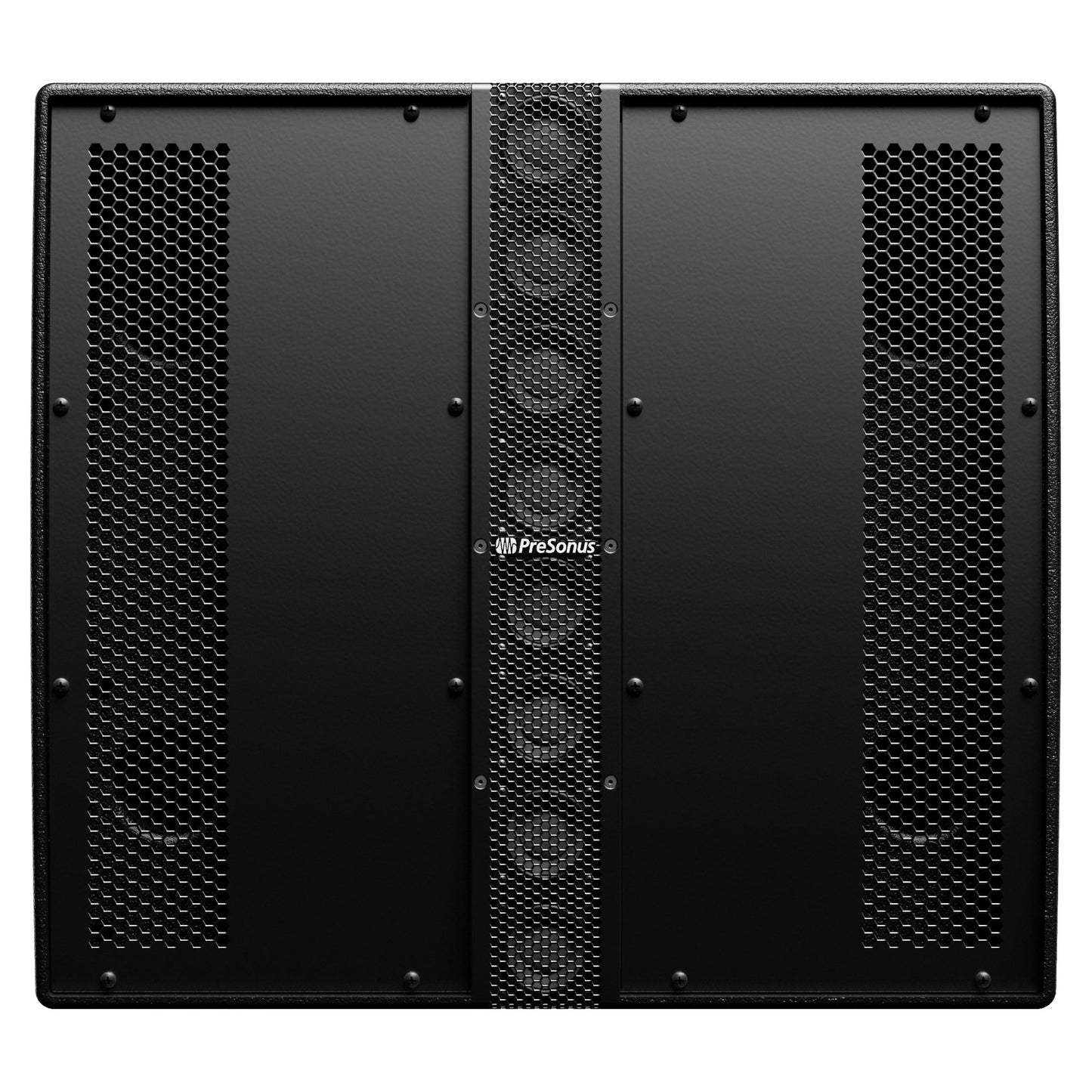

PreSonus CDL12P 12-Inch Constant Directivity Line Array Speaker

The CDL12 offers unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. Now that same constant directivity performance is available in the new CDL12P, a lighter weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in portable design.

PreSonus CDL12P Features

• Integrated flyware to create an array of up to six CDL12P’s
• Signal, -3 dB, Limiter Protection, and Clip monitoring​
• Easy-to-handle, compact form factor and 63 lb. weight
• Rugged plastic enclosure
• Tour-grade, 1.2 mm steel grille​

• CDL12P Powered Line Array Speaker1
• Six Year Warranty1

• ConfigurationActive 2-way
• Frequency Response (-3 dB)48 Hz – 18 kHz
• Nominal Coverage (-6 dB)120° (H) x 15° (V) per enclosure
• Maximum Peak SPL130 dB
• Crossover Frequency420 Hz
• Transducer
  • LF Transducer: 12” (2.5” voice coil)
  • HF Transducer: 8 x 2” (1” Voice Coil)
• Amplifier
  • Type: Class D
  • Total Power Output: 2000W Peak, 1000W Program (500W RMS)
  • LF Power: 1000W Peak, 500W Program (250W RMS)
  • HF Power: 1000W Peak, 500W Program (250W RMS)
  • Dynamic Range: 119 dB (A-weighted)
  • Bandwidth: 20 Hz - 20 kHz
  • Mains Connection: Locking AC In and Out
• Connections and Controls
  • Input Channels: 1 Line
  • Input Connector Types: 1 XLR
  • Line Input Impedance: 40 kΩ
  • Maximum Input: +4 dBu
  • Output Connector: Direct Line Out (XLR)
• Enclosure
  • Material: 15mm Polypropylene
  • Grille: Powder-coated steel
  • Dimensions (H x W x D): 18.5 x 20.5 x 18.25 inches (470 x 521 x 464 mm)
  • Unit Weight: 63 lbs. (28.6 kg)
• Power
  • AC Power Input: 90-260V~, 50-60 Hz
  • AC Power Consumption (1/8 Power): 4.2 Amps
• Suspension Mounting
  • Rigging Points: Integrated Rigging (10:1 load)
  • Mounting: Dual-position pole mount (0° and 7.5°) 35 mm

About Line Arrays at Sound Productions

Take your sound system to the next level with the myriad options from Sound Productions’ line array speakers and subwoofers. These speakers and subs are specifically designed to work together in large groups, perfectly positioned to reach your audience with clear, powerful audio and reliability. Especially for large crowds, line array systems deliver the coverage you need while minimizing distortion—resulting in an immersive audio experience for everyone!

Line arrays are most commonly used to deliver great audio during live performances or presentations. The possibilities are endless when it comes to where and how line array systems are used. Examples include indoor and outdoor stages, concert halls, sports stadiums, houses of worship, clubs, and festivals or special events. Because line array speakers and subs are engineered for optimal clarity, they can also be used in large auditoriums for speech purposes.

No matter what your venue, line array speakers and subwoofers are ideal for permanently installed sound systems of all shapes and sizes. Because you can mount them together, their streamlined installation offers a clean look for your final product.
