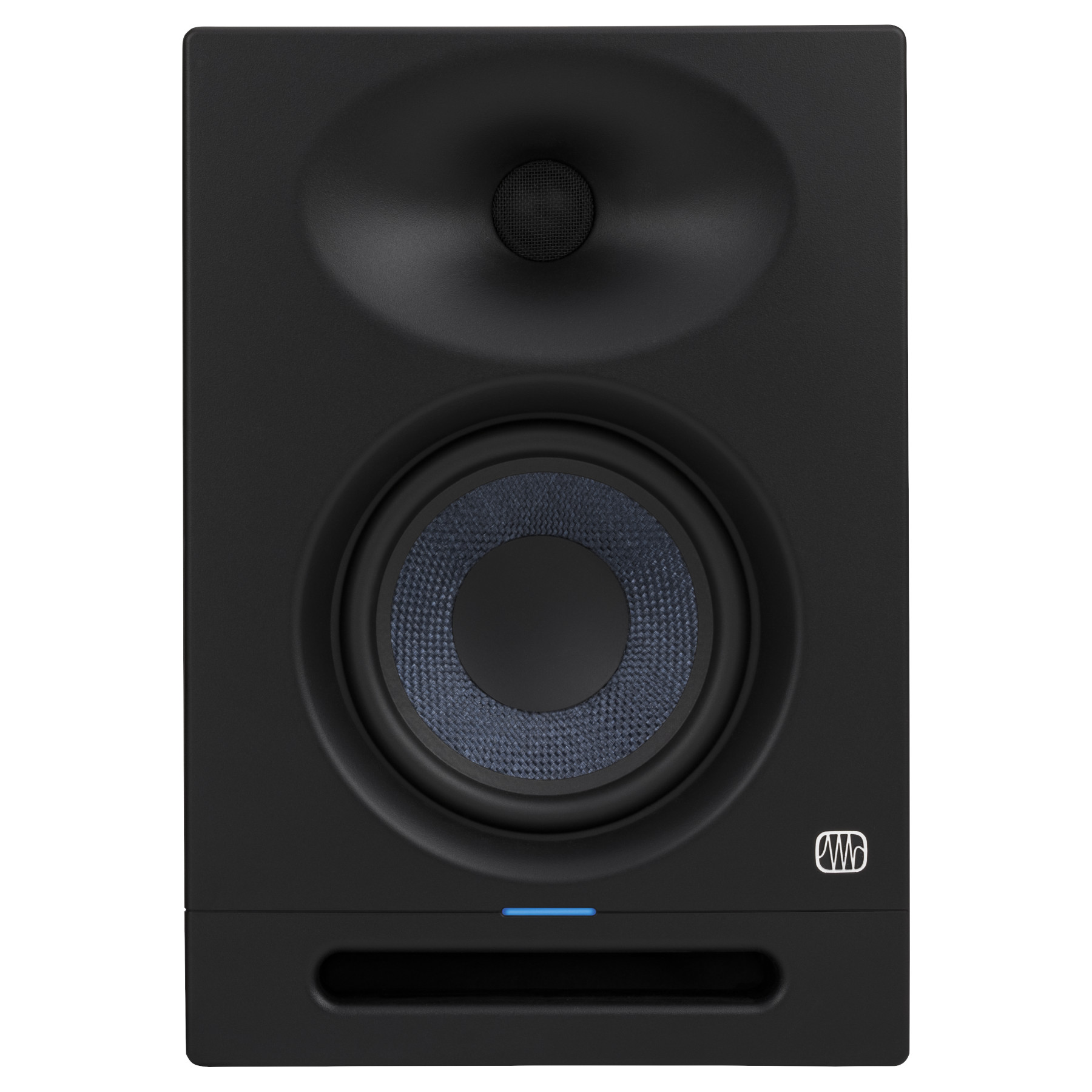

Presonus Eris Studio 5 5-Inch Powered Studio Monitor

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broad sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you’ll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris' signature tight, clear bass, with plenty of punch. The ported enclosure and 80W of biamped power maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz — without a subwoofer. Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

Presonus Eris Studio 5 Features

• 5.25-inch, woven-composite, low-frequency transducer
• 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
• 120˚(H) x 60˚(V) EBM waveguide for a wide sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB biamplification
• 48 Hz to 20 kHz frequency response
• 102 dB SPL (Peak, @ 1 meter)
• Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
• RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier “soft start” feature (eliminates popping on power-up)
• Internal power supply with IEC connector and power switch with on/off LED
• Balanced XLR and ¼-inch inputs and unbalanced RCA inputs

• Eris Studio 5 5-Inch Powered Studio Monitor1

• Electronics
  • Voltage: 100-120V
  • Wattage: 80W
• HardwareCabinet Material: Vinyl-Laminated, Medium-Density Fiberboard
• Connection TypeIEC
• Monitors
  • Protections
    • RF interference
    • Output-current limiting
    • Over-temperature
    • Turn-on/off transient
    • Subsonic filter
  • Audio Switches: Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
  • Audio Controls: Volume - High Frequency (±6 dB, center 10 kHz, continuously variable); Mid Frequency (±6 dB, center 1 kHz, continuously variable)
  • Peak SPL: 102 dB (@ 1 meter)
  • Crossover Frequency: 3.5 kHz
  • Monitor Inputs: 1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA
  • HF Transducers: 1” Ultra Low Mass, Silk Dome Tweeter
  • LF Transducers: 5.25" Woven Glass Fiber Composite
  • Frequency Response: 48 Hz - 20 kHz
  • Input Impedance: 10 kΩ
  • Coverage Pattern: 100 degree (H) x 60 degree (V)
  • Monitor Amplifier Power: LF Amplifier - 45W, HF Amplifier - 35W
• Input Impedance10 kΩ
