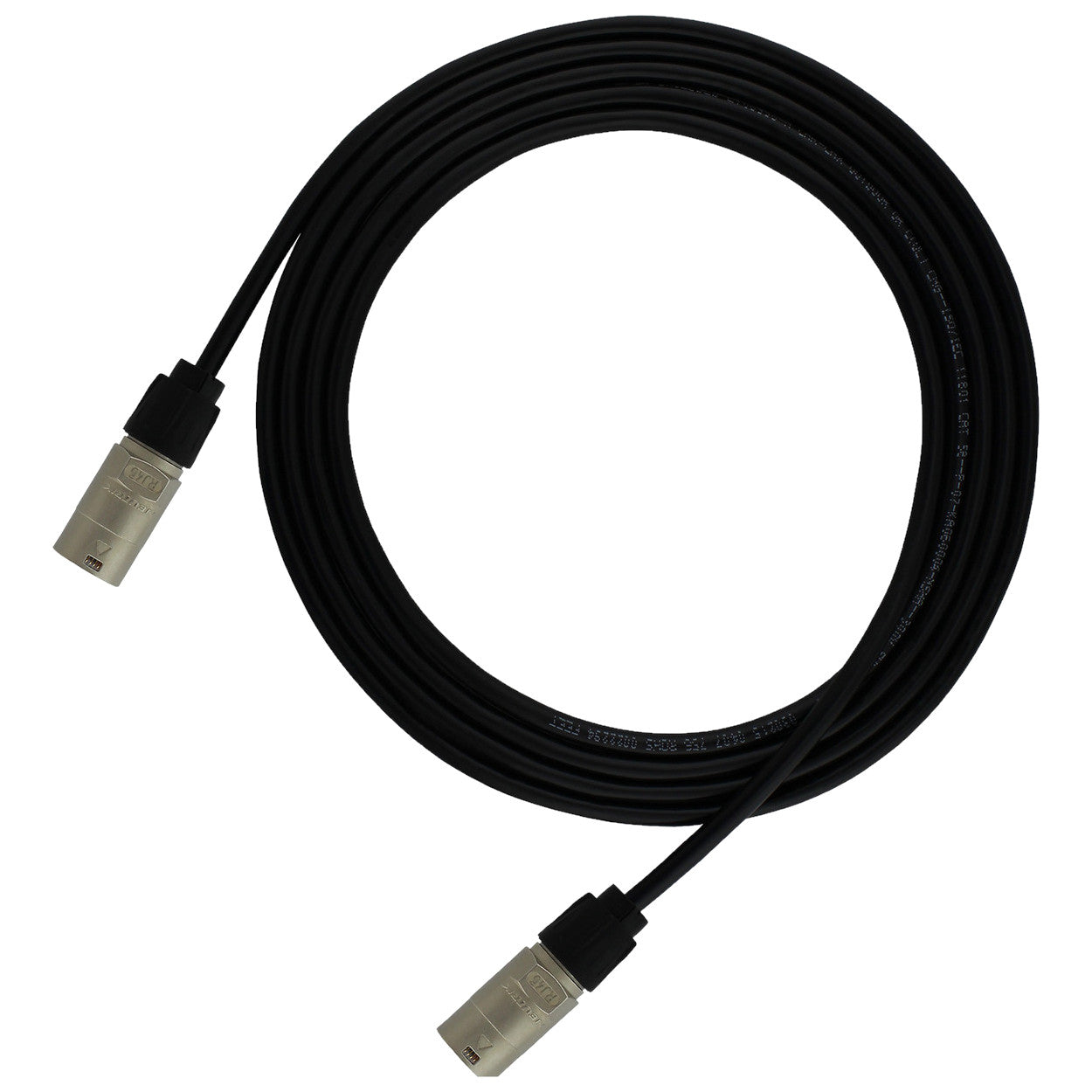

ProCo C270201 Shielded Cat5e Cable with etherCON Connectors

SoundPro Item: 132684

MPN: C270201-25F

Description
Specifications
Documentation
Questions & Answers

The C270201 Shielded Cat5e Cable with etherCON Connectors from ProCo is a 24 AWG 4Pair F/UTP Category 5E cable that has been tested to 350 MHz. Aluminum Mylar Foil Shield. Available in Pull Box.

Applications:

IEEE 802.3 1000Base-T, 100Base-TX, 10Base-T, PoE, PoE+
CDDI, Token Ring, ATM
Broadband and Baseband Analog Video

Standard Compliances:

ANSI/TIA 568-C.2
ANSI/TIA 862 (Building Automation)
ISO/IEC 11801 Ed. 2.0 (Class EI)
ICEA 8-102-700 (Category 6 or 5E)
REACH Compliant
CPR Compliant (Fully Comply to 305/2011 & EN 50575:2014-09)
RoHS Compliant Directive 2002/95/EG

ProCo C270201 Features

Structured cabling for Ethernet Networks
Foil shield reduces electromagnetic interference (EMI) for optimal performance
Performance guaranteed to 350 MHz
Sequential footage markings
Verified by third-party for guaranteed performance

C270201 Shielded Cat5e Cable with etherCON Connectors1

PHYSICAL PROPERTIES
- Conductor
  - Material Copper
  - Nominal Outside Diameter (mm) 0.515
- Insulation
  - Material HDPE
  - Diameter (± 0.05mm) 0.96
- Screen Material: Al-Foil
- Construction: CMR/Non-Plenum
- Jacket
  - Material: FR-PVC
  - AverageThickness: 0.55mm
  - Minimum Point Thickness: 0.50mm
  - Outside Diameter (±0.2mm): 5.7
- Rip Cord: 250D Nylon
- Drain Wire: 0.4 TC
- Packing
  - Length: 1000ft/Pull Box
  - Weight: 25 lbs
- Voltage Rating (Max): 300V
ELECTRICAL CHARACTERISTICS
- 1.0 - 250.0MHz characteristic impedance (ohms): 100±15
- 250-650.0MHz Delay Skew (ns/100m): 45
- Pair-to-Ground Capacitance Unbalance (Pf/100m): 53
- Max. Conductor DC Resistance Unbalance (%): 95
- Max. Resistance Unbalance (%): 3
- Max Mutual Capacitance: 330
- Max DC Loop Resistance: 25
- Min DC Insulation Resistance: -
- Max Propagation Delay Skew: 4
- Before Aging
  - Tensile Strength (Mpa): ≥13.8
  - Elongation (%): ≥100
- Aging Period (C x hrs)
  - Tensile Strength (Mpa) ≥85% of unaged
  - Elongation (%): ≥50% of unaged
- Cold Bend (No Visible Crack): -40±2C
- Temperature Range: -20 ~ 75C
- Velocity of Propagation (%): NVP 70
ELECTRICAL PERFORMANCE
- ACRF - Attenuation to Crosstalk Ratio - Far End (dB/100m)
- NEXT - Near End Crosstalk (dB/100m)
- ACR - Attenuation to Crosstalk Ratio (dB/100m)
- PSNEXT - Power Sum Near End Crosstalk (dB/100m)
- ELFEXT - Equal Level Far End Crosstalk (dB/100m)
- PSELFEXT - Power Sum Equal Leverl Far End Crosstalk (dB/100m)
- RL - Return Loss (dB)
- TCL - Transverse Conversion Loss (dB/100m)
- ATT - Attenuation (dB/100m)
