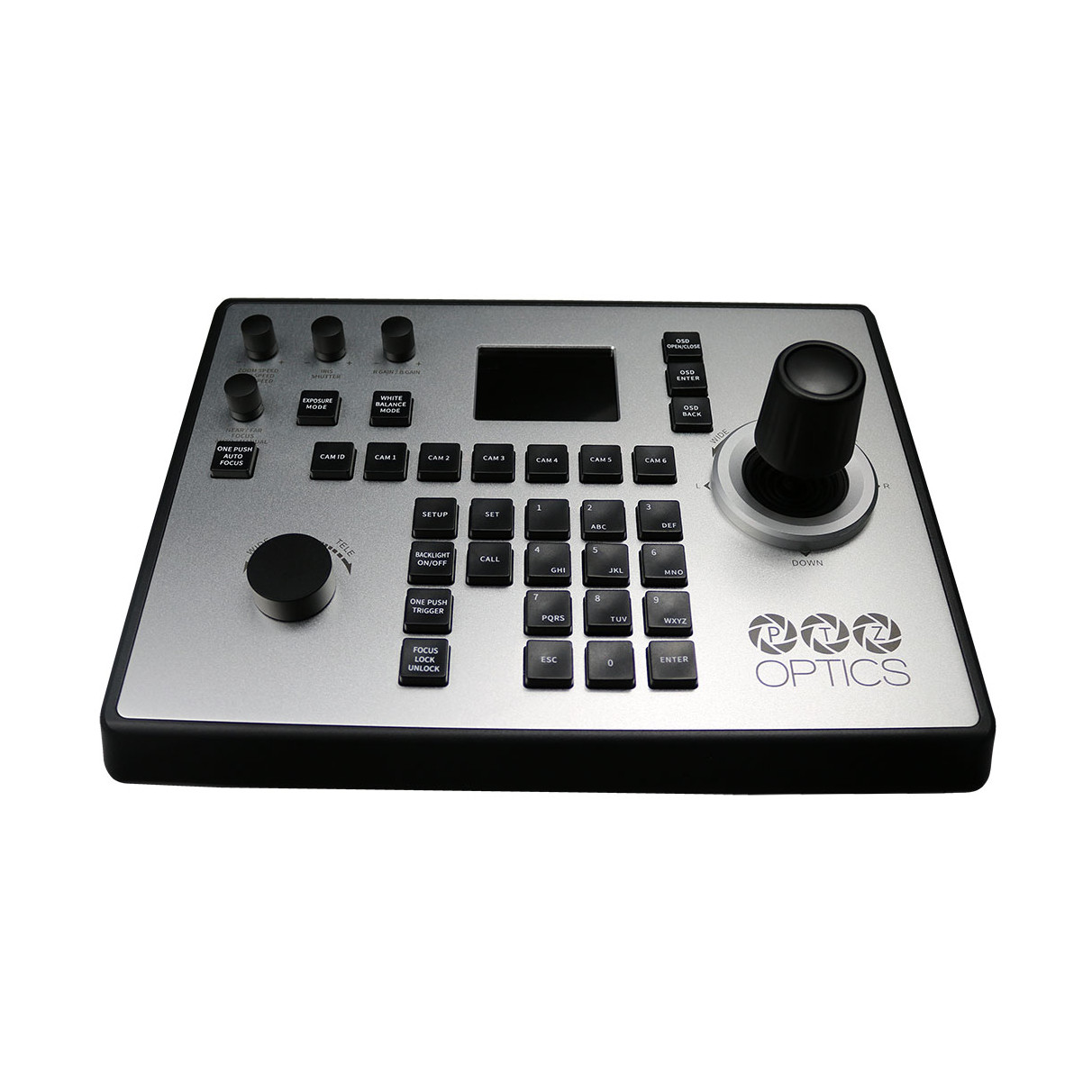

PTZOptics PT-JOY-G4 IP or Serial PTZ Camera Controller

Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.

A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, simply import and export settings for specific use cases or production environments. For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.

With an expanded LCD screen and a wide range of knobs for fine tuning, a single camera operator can easily:

• Operate cameras in basic, matrix and normal modes
• Access cameras and quickly recall preset locations
• Control white balance, red and blue gain, shutter speed and more
• Use web-based and smartphone app control for added flexibility

PTZOptics PT-JOY-G4 Features

• Easily integrate into existing systems
• Minimal setup time
• PT-JOY-G4 dynamically obtains an IP address upon connecting to your LAN
• Sizable LCD screen with controller status
• VISCA over IP or Serial Control
• Full pan, tilt, zoom camera control
• Fine tune focus control
• Focus lock and unlock
• Direct exposure
• White balance
• Red and blue gain control
• Ideal in schools, houses of worship, and other broadcast and live streaming scenarios

• PT-JOY-G4 IP or serial PTZ camera controller1
• 12V 2A DC international power supply1
• RS-232C cable (8 ft)1
• Grounding pin1

• ConnectionsRS-232, RS-485, RS-422, RJ-45
• Max. Cameras
  • 253 cameras via network
  • 7 cameras via serial VISCA
• Recommended Max. Distance
  • RS-232/RS-422: 50 ft (15m)
  • RS-485: 3,937 ft (1200m)
  • Ethernet: 328 ft (100m)
• Baud Rate1200 ~ 19200 bps
• Power6W (12VDC) / PoE (802.3af)
• Working Temperature14°F to 122°F (-10°C to 50°C)
• Working Humidity10% - 90% non-condensing
• Dimensions (WxDxH)11.94" x 9.25" x 4.25"
• Weight4.45 pounds
