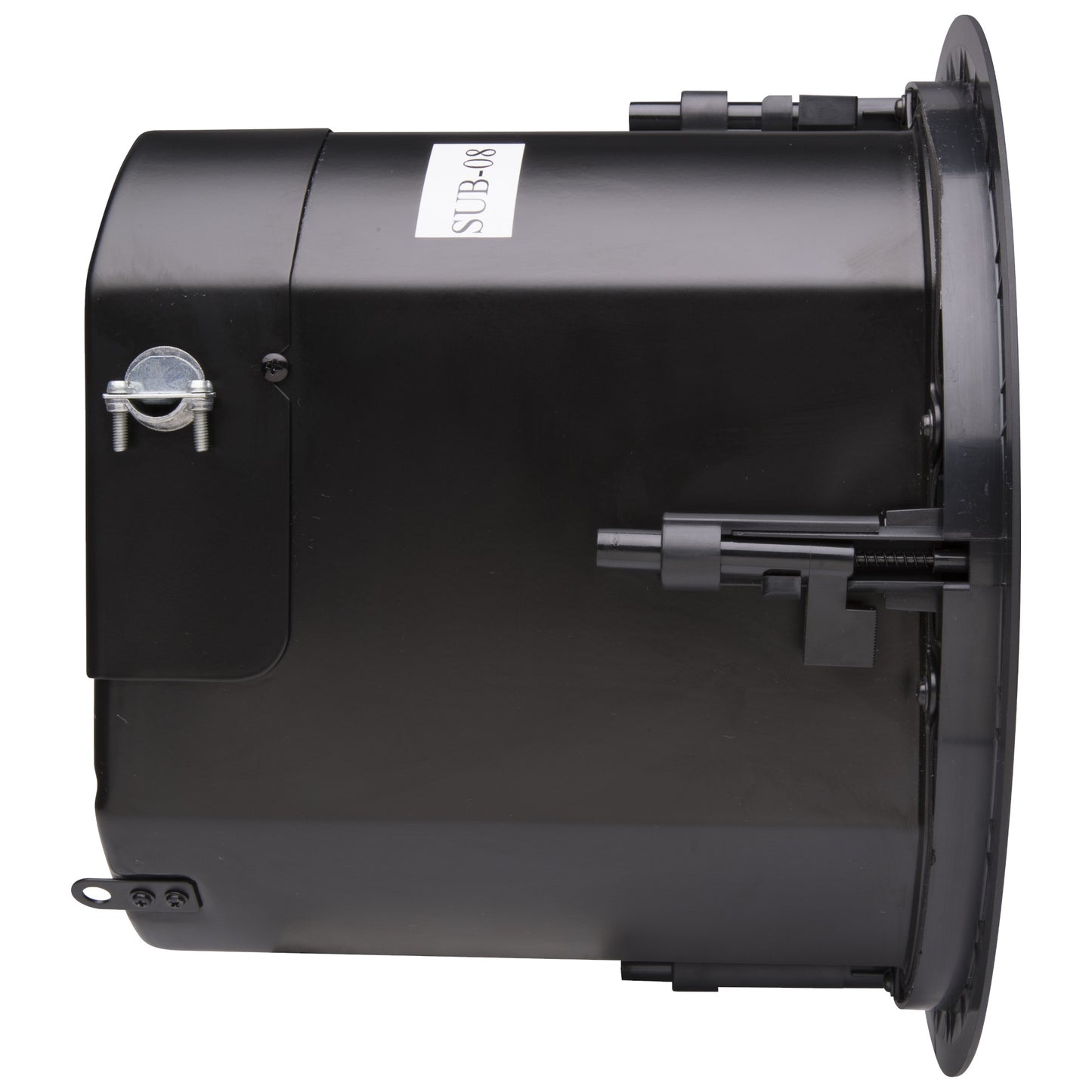

QSC AD-C.SUB AcousticDesign 6.5-Inch Ceiling Subwoofer

A high-quality 6.5” weather-treated paper cone woofer on a dual voice coil in the AD-C.SUB ceiling subwoofer from QSC ensures optimal thermal dissipation and a higher output with its small form factor.

Low-loss, low-saturation 100W transformer with selectable taps (including 4Ω bypass) keeps frequency response accurate and consistent even in 70/100V applications. The transformer operates using a rotary selector under the snap-fit magnetically attached powder coat steel grille.

Connect up to four AcousticDesign™ SUB/SAT satellites via the high-pass filtered outputs. Using these outputs to connect greatly reduces system setup and amplifier channel count, as well as allows for wiring ease.

Experience optimized performance and a faster install process with Intrinsic Correction™ voicings. These voicings are seamlessly deployed via MP-M Series music and paging mixers or Q-SYS Platforms (such as CXD-Q Series amps).

Inputs and outputs are easy to access due to being located behind a removable conduit cover plate with captive screws that keep it in place during installation. All in-thru and outputs are terminated to locking 4-pole Euroblock style connectors capable of 12AWG wire thickness.

With aesthetics being of considerable importance, the rugged ABS baffle gets additional protection from a powder-coated steel backcan and UV inhibitors. These inhibitors also prevent discoloration. A stick-on logo on the magnetic grille can be removed without creating any blemish.

Easily install the AD-C.SUB into the ceiling thanks to the 4x long travel dog-ear blind mounting system. This system captures 0-1.75 inches of ceiling thickness.

More about the AcousticDesign™ Series from QSC

The AcousticDesign™ Series places performance, consistent coverage, and aesthetics as the most important qualities of their SUB and SAT speaker options. Series was designed specifically to maintain a consistent tonal characteristic no matter what style of speaker is being used, so integrators get seamless transitions within blended installations. Part of the AcousticDesign™ Series, the AD-C.SUB is ideally suited for background music applications that demand refined depth and clarity even when the volume is lower.

QSC AD-C.SUB Features

• Dual voice-coil for improved thermal dissipation and higher output
• Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
• 4x built-in high-pass filtered outputs
• Snap-fit magnetic grills
• Locking 4-pole Euroblock connectors
• Removable conduit cover plate
• 4x double stepped, long travel dog-ear blind mount system
• Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
• Available in black or white
• UL1480 and UL2043 certified

• AD-C.SUB 6.5-Inch Ceiling Subwoofer1
• C-ring1
• Tile rail2
• Rail screws2
• Euroblock connector3
• Cut-out template1
• Grille1

• LF transducer 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
• HF transducer N/A
• Effective frequency range 45 Hz – 150 Hz
• Rated noise power / voltage 100 W / 20 V (rms)
• Sensitivity [dB] (rated @ 1 W, 1 m) 86
• Coverage (‐6 dB) Omni
• Maximum SPL [dB] (continuous / peak) 100 / 106
• Recommended amplifier 100W
• Transformer taps / impedance
  • Bypass: 4Ω
  • 100W (70V); NA (100V) Tap: 50Ω
  • 50W (70V); 100W (100V) Tap: 100Ω
  • 25W (70V); 50 W (100V) Tap: 200Ω
  • 12.5W (70V); 25 W (100V) Tap: 400Ω
• Connectors
  • Mono input: 4-pole Euroblock with thru output
  • Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
• Enclosure materialABS baffle on powder coated steel back can
• Grille materialPowder coated steel
• Ingress protection IP-34
• Operating environment Designed for indoor use
• Operating temperature range -4 to 122° F (-20 to 50° C)
• Net weight 19.2 lb (8.7 kg)
• Product dimensions (Ø x H) Ø 13.4 x 10-inch (Ø 340 x 254 mm)
• Safety agency
  • UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant.
  • Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
