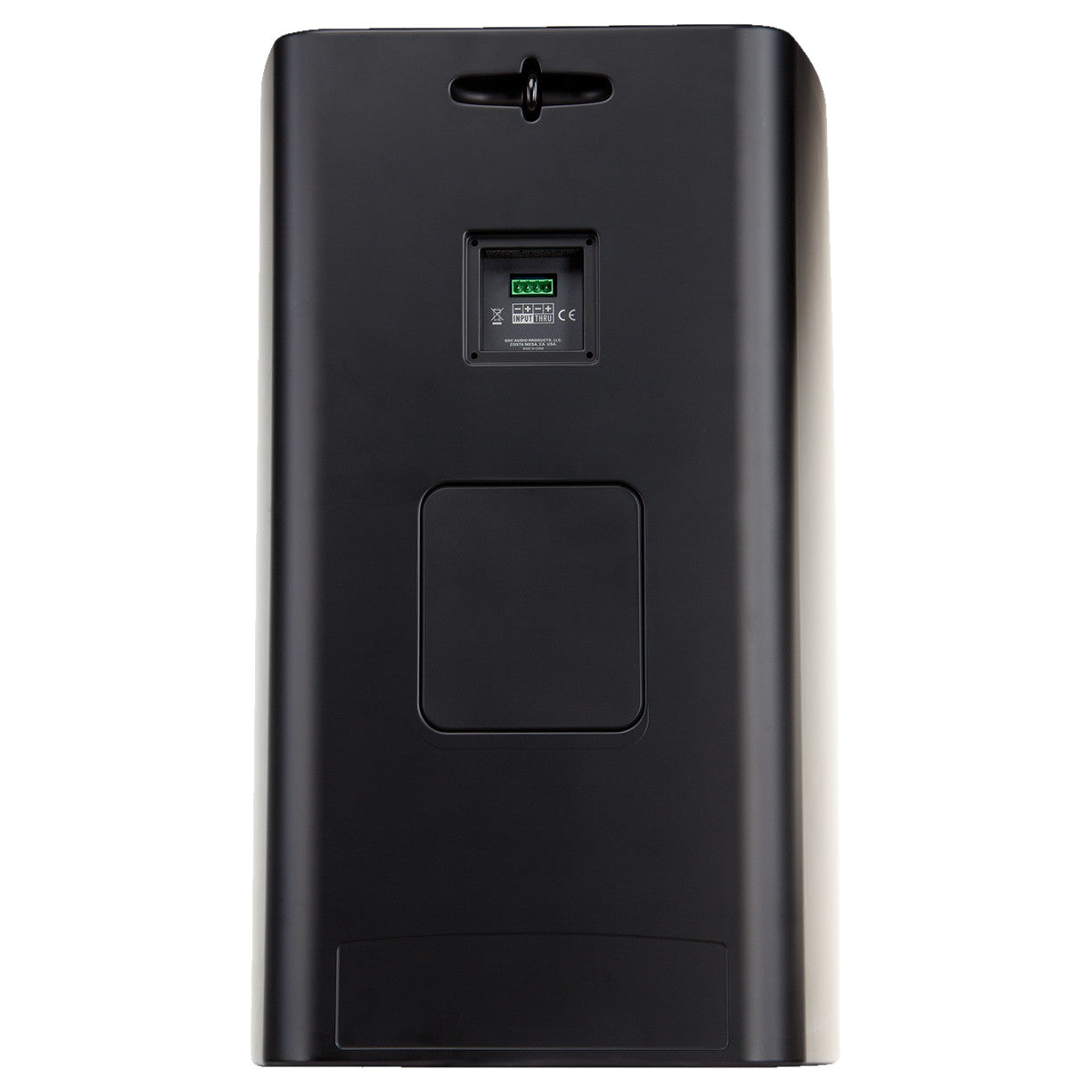

QSC AD-S112SW AcousticDesign 12-Inch Surface Mount Subwoofer

SoundPro Item: 99891

MPN: AD-S112-sw-BK

Description
Specifications
Documentation
Questions & Answers

The AD-S112sw from QSC’s AcousticDesign series is a low-impedance, surface-mounted, direct-radiating subwoofer ideal in foreground and background sound reinforcement situations utilizing 70/100V or 16Ω bypass configurations. The AD-S112sw features a 12” weather-treated paper cone woofer with a 2.5" voice coil.

Among its many features, Intrinsic Correction™ voicings can be deployed to optimize installation and performance. Angulated Pressure Flow™ (APF) enhances enclosure resonance and woofer performance and extends the sub’s frequency capacity down to 30Hz. Transmission of vibrations is minimized by its included yoke mount assembly. Additional M10 fittings on the AD-S112sw’s enclosure lets you deploy it via suspension of flown arrays using the optional accessory M10 KIT-C (sold separately).

AcousticDesign speakers are free of obtrusive branding. They’re available in black or white, as well as paintable to match any décor. Boasting rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles, all surface-mounted models exceed IEC60529 IP-54 ratings for dust and splash resistance.

More about QSC’s AcousticDesign Series

Easy installation, flexible mounting options, and rugged, high-weather resistance are just three of the features that set QSC’s AcousticDesign™ series apart. These premium loudspeakers are designed to give contractors and integrators versatile, reliable solutions for permanent sound installations. Unified by premium audio quality and consistent tonal characteristics this series is comprised of ceiling, surface, and pendant alternatives ideal for environments where you need the perfect combination of performance, coverage, and aesthetic appeal.

QSC AD-S112SW Features

Available in black (pictured) and white (not pictured)
TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
Included yoke bracket and M10 fittings for optional suspension
Advanced voicing filter sets using QSC Intrinsic Correction™ available through either Q-Sys processing or CXD amplifier platforms
Lightweight ABS enclosure offer long-term durability and lasting good looks
Sealed input panel cover and powder coated aluminum grilles for added weather resistance
Meets IEC60529 IP-54 for dust and splash resistance

AD-S112SW 12-Inch Surface Mount Subwoofer1
YMS12 yoke mounting system1
Euroblock connector1
Input panel cover1

Effective frequency range130 - 135 Hz
Rated noise power / voltage2300 watts / 50 volts (rms)
Broadband Sensitivity390 dB SPL
Maximum continuous SPL4115 dB
Maximum peak SPL4121 dB
Rated impedance8 ohms
Recommended amplifier power (loudspeaker "program" power)600 watts
Transformer tapsn/a
HF transducer-
LF transducer12-inch weather resistant paper cone woofer, 2.5-inch / 64mm voice coil
Input connector typeEuroblock connector with parallel output terminals
Enclosure materialPainted ABS polymer
Grille materialPowder coated aluminum
Yoke material Powder coated galvanized steel (included)
Ingress protectionIP-54
Operating environmentDesigned for indoor and outdoor use
Testing
- The AD Series loudspeakers qualified for outdoor use using the following tests:
- Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
- Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
- High and low temperature: tested to QSC internal standards between -20° & 50°C
Product Dimensions (HxWxD)23.4x13.9x12.7" (594x354x323mm)
Net weight29 lbs (13.2 kg)
Shipping weight43.1 lbs (19.6 kg)
Shipping dimensions27.5x21.75x18.5" (698x552x470 mm)
Notes
- 1 Free-field, -10 dB from on-axis sensitivity
- 2 IEC60268-1 noise signal for 2 hours
- 3 On-Axis, free-field sensitivity, 2.83V, 1 m
- 4 Calculated from rated noise voltage and sensitivity
