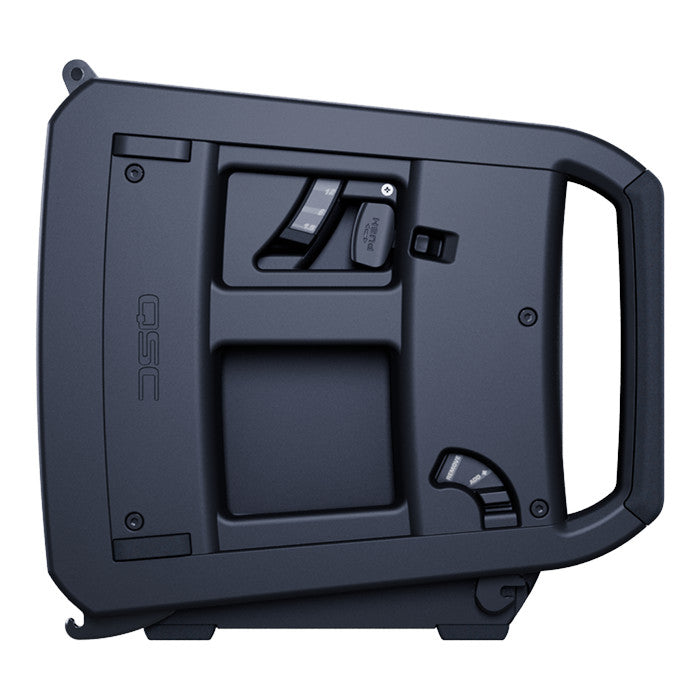

The LA112 from QSC is a 12-inch powered line array speaker designed to deliver great sound solutions from a system that’s easy to set up.
Part of the L-Class Series, this speaker offers intuitive operation, simple installation, and flexible mounting choices to fit applications needs of myriad shapes and sizes.
QSC LA112 Features
- Purpose-designed, lightweight neodymium transducers deliver high, undistorted SPL
- Energy efficient Class D amplifier modules with Power Factor Correction and extremely low AC consumption
- Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage and exceptional throw
- Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue
- Intuitive, single operator QSC RapidDeploy™ rigging technology with short, medium, and long-throw options guarantees fast deployment without tools or additional hardware
- Onboard QSC AWARE™ (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker’s Rear User Interface (RUI) or QSC System Navigator™ App
- Ar-Q™ (Array Equalization) processing automatically makes the appropriate equalization adjustments based on the total splay angle of the array, total number of boxes in the array, and the location of each loudspeaker in the array
- QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays, or groupings of both
- Network solution includes digital audio-over-IP (Dante®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions
- Flown, ground-stacked over subwoofer(s), loudspeaker stand/pole mounted, or horizontal ground deployment options
- Industry-best global 6-Year Extended Warranty with product registration
- LA112 12-Inch Powered Line Array Speaker1
- AC power cord, with PowerCON® TRUE1 (3 m / 10 ft) connectors1
- Quick Start Guide1
- Safety Sheet TD-001655-001
- SPL134 dB / 136 dB peak
- Class D amplifier modules1300W / 2400W peak power
More about the LA112
The LA112 features a splay angle adjustment and array optimization function, compatibility with networked audio systems (Dante®), and can be deployed via a dedicated array frame, ground-stacked (array frame combined with optional sub-stack adapters), or mounted using loudspeaker stand/pole.
It also features daisy-chain connections for analog and digital audio as well as AC power (PowerCON TRUE1).
More about QSC's L-Class Powered Line Array Loudspeakers
Advanced, intelligent, and active, L-Class speakers are designed specifically to meet the needs of a wide range of applications: from simple to complex, portable to installed, plug-and-play to networked, small indie setups to high-tech AV production systems.
No matter what your project or application, L-Class offers solutions that will make your audio sound its best…all in a build that’s easy to configure and integrate into your space.
