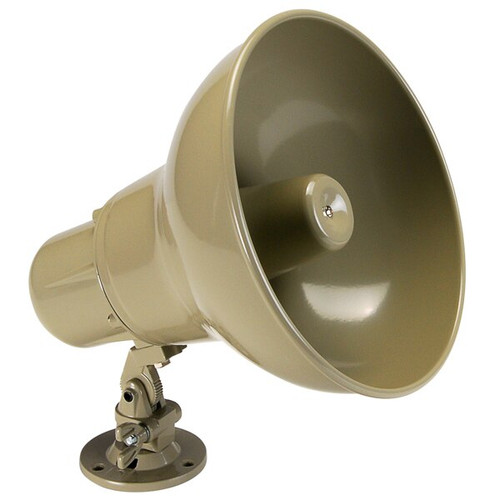

The QH16T is a double re-entrant horn, compression type loudspeaker with an integrated 16W-25/70V rotary select transformer and an adjustable mounting base.
Quam QH16T Features
- Double re-entrant horn, compression type loudspeaker
- Integrated 16W-25/70V rotary select transformer
- Adjustable mounting base
- QH16T Paging Horn1
- Speaker TypeCompression, Double Re-Entrant Horn
- Average Sensitivity110 dB SPL, 1W/ 1M
- Loudspeaker Power Rating 16W RMS, EIA 426A Standard
- Calculated Output 121 dB SPL, 16W/ 1M
- Frequency Response 450 Hz - 15 kHz EIA 426A Standard
- Nominal Coverage Angle 110° Included Angle, -6 dB / 2 kHz, Half space
- Audio Connection Screw Terminals
- Transformer 25/70V 16W-5 Tap, Rotary Select (16W, 8W, 4W, 2W, 1W)
