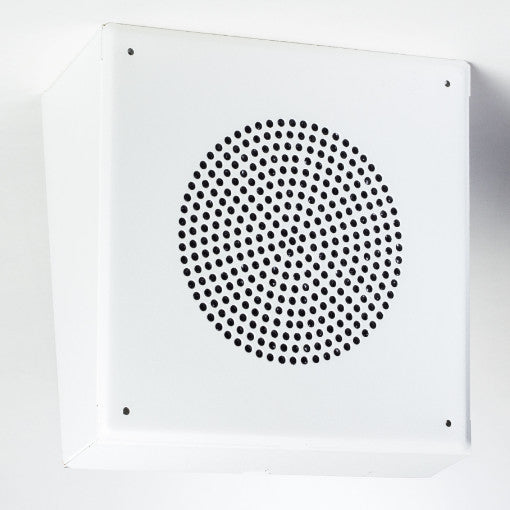

Quam SYSTEM 2 Speaker System

SYSTEM 2 is a complete loudspeaker system consisting of an 8″ O.D., dual cone loudspeaker and a 5W, 25/70V transformer mounted on a square, screw mount, steel baffle with a slanted, steel, vandal resistant, surface mount enclosure with four (4) 8-32 threaded inserts, a single 1/2″ conduit entrance on the back, and two (2) Wiremold knockouts and a white, powder coat finish.

Quam SYSTEM 2 Speaker System Features

• Complete loudspeaker system consisting
• 8″ O.D., dual cone loudspeaker
• 5W, 25/70V transformer
• Square, screw-mount, steel baffle
• Steel, vandal-resistant, surface-mount enclosure
• Four 8-32 threaded inserts
• One 1/2″ conduit entrance on the back
• Two Wiremold knockouts
• White, powder coat finish

• SYSTEM 2 Speaker System1

• APPLICATION
  • Intended Use: Indoor environment
  • Program Material: Signal tones, voice and music
  • Installation: Horizontal or vertical surface mount
• AUDIO PERFORMANCE
  • Average Sensitivity: 92dB SPL, 1W/1M
  • Loudspeaker Power Rating: 12W RMS, EIA 426A Standard
  • Maximum Power Rating: 15W @ 8 Ohms
  • Calculated Output: 99dB SPL, 5W/1M
  • Magnet Type & Weight: BeFe Ceramic, 5 oz. Nominal
  • Frequency Response: 65Hz - 17kHz EIA, 426A Standard
  • Nominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half Space
  • Audio Connection: 7, Color-coded, Pre-tinned Leads
• COMPONENT
  • Dimensions (HxWxD): 11 5⁄8 x 11 5⁄8 x 5 3/8”
  • Weight: 10 lbs
  • Loudspeaker: 8C5PAX
  • Transformer: TBLU: 5W, 25/70V, with 5 taps (0.31W, 0.63W, 1.25W, 2.5W, 5.0W)
  • Baffle: BS8W
  • Backbox: SE2WVP with four (4) 8-32 threaded inserts
  • Finish: White powder coat
