Radial LX3 Line-Level Splitter

The Radial LX-3™ is a high-performance balanced line-level splitter designed to send one audio signal to as many as three destinations at once.

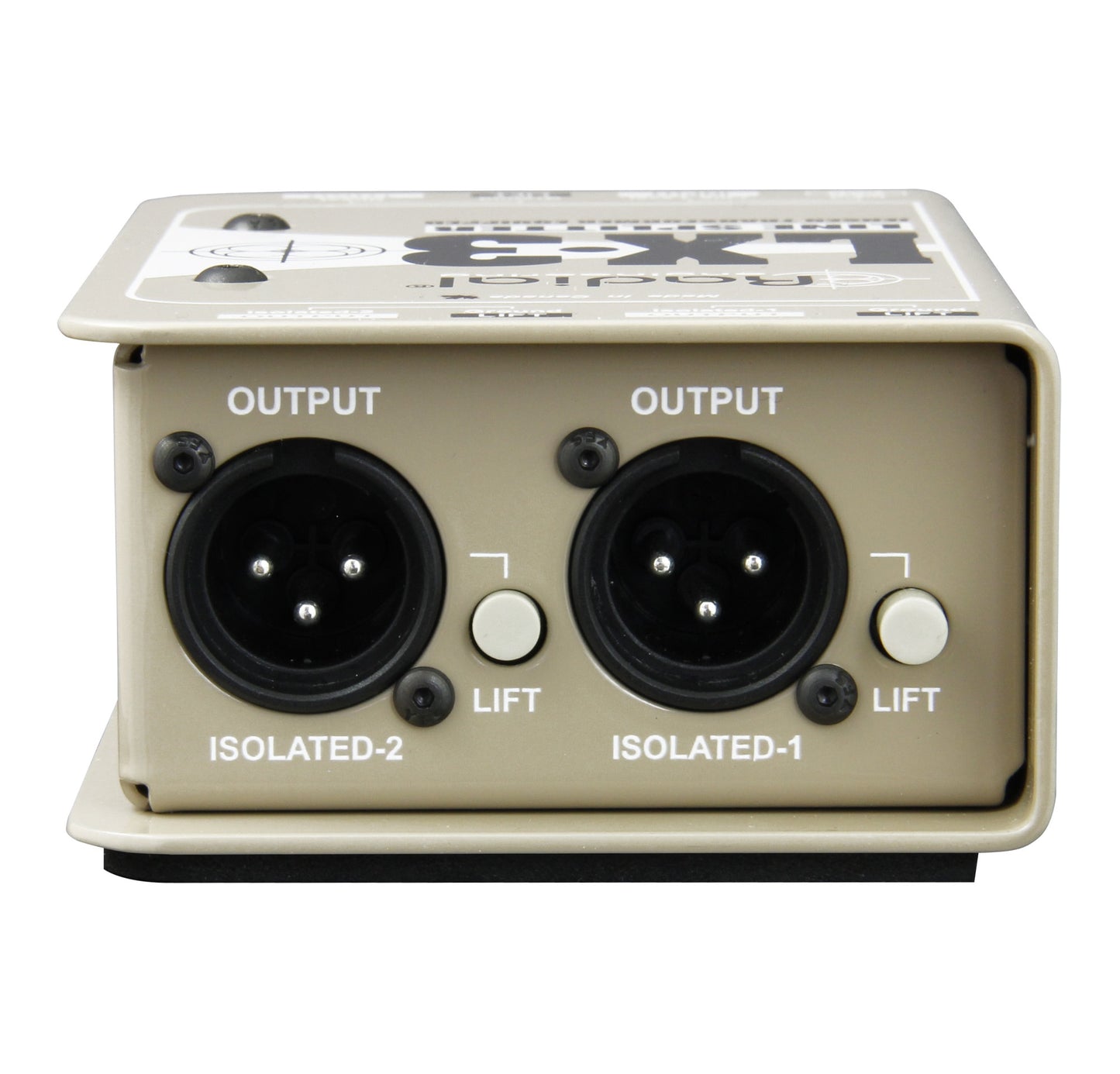

The LX-3 makes use of a premium Jensen transformer to leverage the industry's best combination of frequency response, signal level handling, and low distortion, providing the highest possible signal quality. It features two isolated outputs to eliminate hum and buzz from ground loops, along with a third direct output. All three XLR outputs have ground lift switches for additional noise suppression, and a switchable -12dB input pad allows you to connect even the hottest line outputs without fear of overloading or distortion. The input of the LX-3 is accessed with an XLR/TRS combo jack, which allows you to connect via balanced or unbalanced cables; the LX-3 will automatically balance the signal at the isolated outputs, preventing interference and signal degradation over long cable runs.

Radial LX3 Features

• Send one audio signal to three destinations simultaneously
• Jensen® transformer equipped for exceptional audio quality
• Eliminates hum and buzz caused by ground loops
• 14-gauge steel construction and military-grade circuit board for incredible durability

• LX3 Line-Level Splitter1
• Three Year Warranty (transferable)1

• Audio circuit type Passive, transformer based
• Transformer Jensen JT-123-FLPCH
• Number of channels 1 In, 3 Out
• Frequency response 20Hz - 20kHz +/-0.5dB
• Dynamic range 140dB
• Gain -1.5dBu
• Phase Deviation +0.6° @ 20Hz
• Input Impedance 712Ω
• Output Impedance 112Ω
• Common Mode Rejection Ratio 105dB @ 60Hz, 70dB @3kHz
• Noise Floor -120dBu
• Maximum Input +20dBu
• Features
  • Input pad, Ground lift
  • Input Connectors: Combo XLR / 1/4"
  • Output Connectors: XLR iso and direct
• Construction 14-gauge steel
• Size (LxWxD) 84x127x48mm (3.3x5x2")
• Weight 0.7kg (1.5lbs)
• Shipping size (LxWxD) 102x76x165mm (4x3x6.5")
• Shipping weight 0.87 kg (1.92 lbs)
• Power Passive, no power required
• Conditions For use in dry locations only between 5°C and 40°C
