The OX8™ is an eight channel passive mic splitter designed to send the outputs of multiple microphones to three destinations at once, with transformer isolation and ground lifts to eliminate hum and buzz from ground loops.
The Radial OX8 is a professional audio tool that is equally at home on a live stage as it is in a broadcast studio, splitting eight microphone signals to multiple destinations simultaneously without noise or distortion, and eliminating hum and buzz from ground loops. Each channel is configured with a balanced input, a direct out which also serves as a return path for 48V phantom power, a thru-put with a ground lift switch, and a fully transformer-isolated output. The OX8 may be ordered with premium Jensen JT-MB-CPC transformers or Eclipse ET-MS10 transformers as an affordable alternative. Each channel also benefits from an ultra-short signal path and built in RF filters to ensure absolute quiet performance even in the most noise-prone environments.
Radial OX8 Features
- Balanced 8-channel mic splitter in single space 19" frame
- Delivers exceptional audio without artefact
- Eliminates hum and buzz caused by ground loops
- Ideally suited for live recording, PA and broadcast
- OX8 8-Channel Passive Microphone Splitter1
- Three Year Warranty (transferable)1
- Audio circuit type Passive transformer based mic level splitter
- Transformer choice of Jensen JT-MB-CPC or Radial Eclipse MS10
- Number of channels 8
- Frequency response Jensen 20Hz ~ 20KHz (+0dB/-0.2dB) | Radial 20Hz ~ 18KHz (+0dB/-3dB)
- Dynamic range Jensen 140dB | Radial 140dB
- Total harmonic distortion Jensen 0.003% @1kHz | Radial 0.005% @1kHz
- Phase Deviation Jensen 0.7° @100Hz; 2.8° @20Hz | Radial 1° @100Hz; 5° @ 20Hz
- Input Impedance Source dependent, 10kΩ with Pad on, balanced
- Output Impedance Source dependent, 10kΩ with Pad on, balanced
- Common Mode Rejection Ratio Jensen -115dB @ 60Hz | Radial 114dB @60Hz
- Maximum Input Jensen +2dBu @20Hz | Radial +2dBu @20Hz
- Features
- Input pad, Ground lift
- Input Connectors: XLR, Euroblock, DB-25

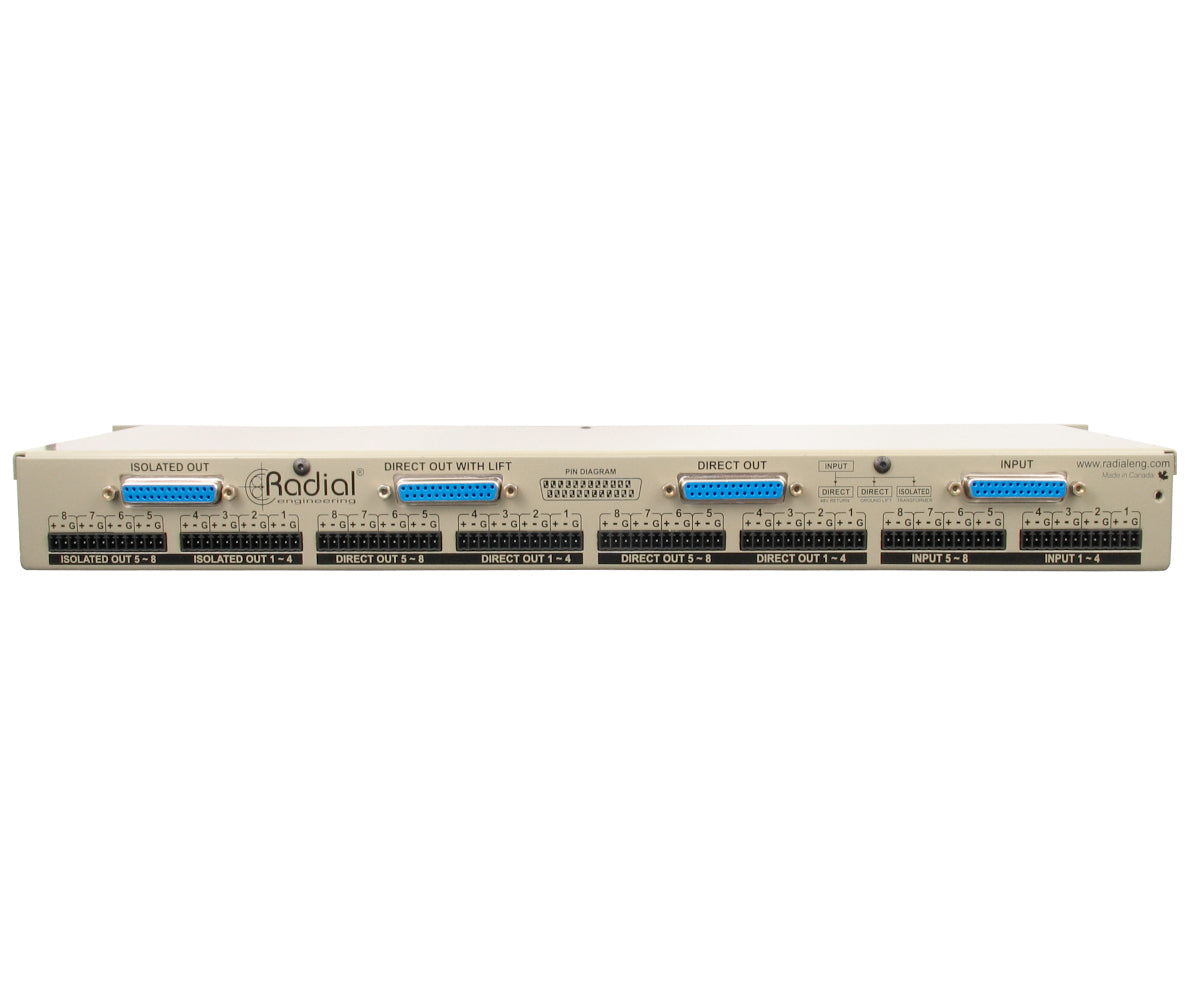

- Output Connectors: Euroblock, DB-25
- Construction 14-gauge steel
- Size (LxWxD) 19x6x1.75" (48.25x15.25x4.45cm)
- Weight 7.5lb (3.4 kg)
- Shipping size (LxWxD) 22x10.375x4.5" (55.9x26.4x11.4cm)
- Shipping weight 8lb (3.63kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
