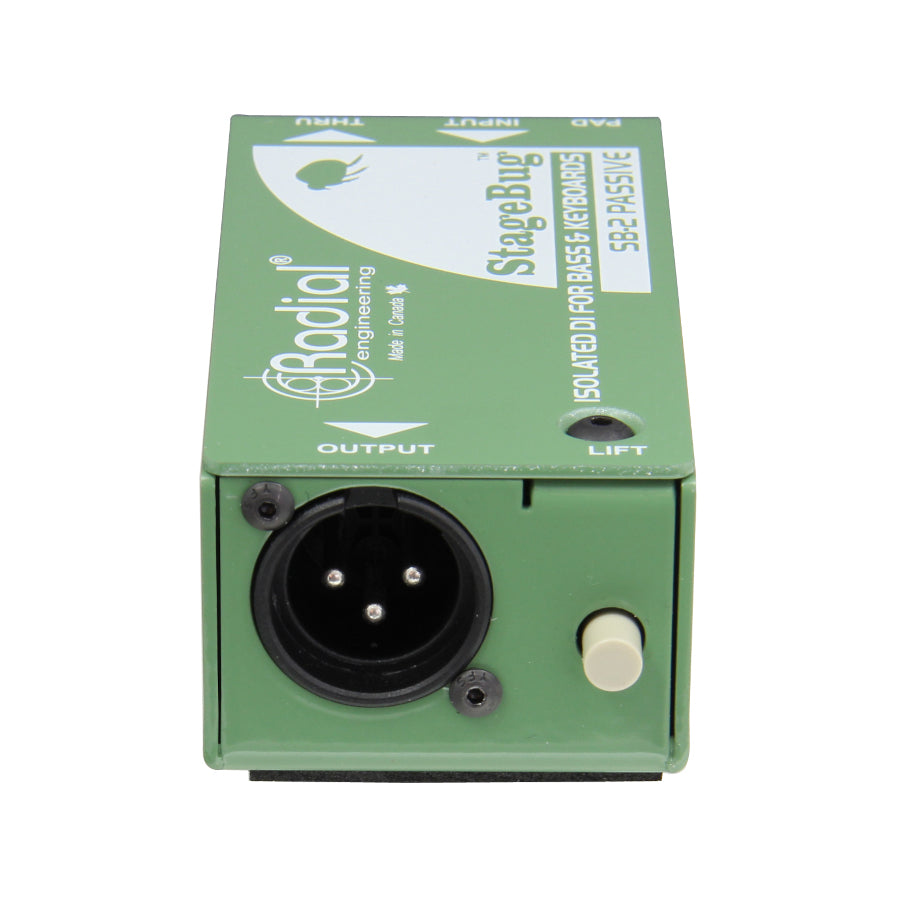

Radial StageBug SB-2 Compact Passive Direct Box

The StageBug SB-2 is a compact passive direct box that is perfect for active basses and keyboards, is small enough to fit inside an instrument case, and features a stereo to mono mix function to save mixer channels.

The compact design begins with a ¼" input and thru-put to feed the on-stage amp. This connects to the custom made Eclipse ET-DB3 transformer which performs the impedance matching and balances the signal. When using extra high output instruments, a -15dB pad can be inserted into the signal path. This enables the SB-2 to be used with active basses and digital pianos that often tend to overload the input side of the interface. An innovative stereo-to-mono merge function provides a convenient way to connect stereo keyboards and computers without having to reset the source for mono operation, saving time and input channels on the PA. The SB-2 output features an XLR wired to the AES standard with pin-2 hot. Once connected, the SB-2 delivers a smooth warm sound reminiscent of older vintage gear. The Eclipse ET-DB3 transformer is magical in its ability to handle extreme signal levels with a natural compression that is pleasing to the ears. The transformer also helps eliminate hum and buzz caused by ground loops by isolating the input from the output. This is augmented with a ground lift switch that lifts pin-1 on the XLR for quiet, professional results.

Radial StageBug SB-2 Features

• Passive DI for bass, acoustic and keyboard
• Ultra compact to fit in your guitar case
• Plug & play easy to use feature set
• Transformer isolation eliminates noise
• Input pad, Ground lift

• StageBug SB-2 Compact Passive Direct Box1
• Three Year Warranty, transferable1

• Audio circuit type Passive, transformer based
• Transformer Eclipse ET-DB3, 12:1 ratio
• Number of channels 1
• Frequency response 20Hz ~ 20KHz (± 0.5dB)
• Dynamic range 115dB
• Total harmonic distortion 0.005% @ 1kHz
• Phase Deviation 3° @ 100Hz; 8° @ 50Hz
• Input Impedance 140k Ohms, unbalanced
• Output Impedance 1k Ohms, balanced
• Maximum Input +20dB
• Input Connectors 1/4"
• Output Connectors XLR
• Construction 14 gauge steel chassis & outer shell
• Dimensions (LxWxD) 4.5x1.85x1.35" (114x47x34mm)
• Weight 0.55 lbs (250 grams)
• Shipping size (LxWxD) 8x5x3" (203x127x76mm)
• Shipping weight 0.8 lbs (365 grams)
• Power Passive, no power required
• Conditions For use in dry locations only between 5°C and 40°C
