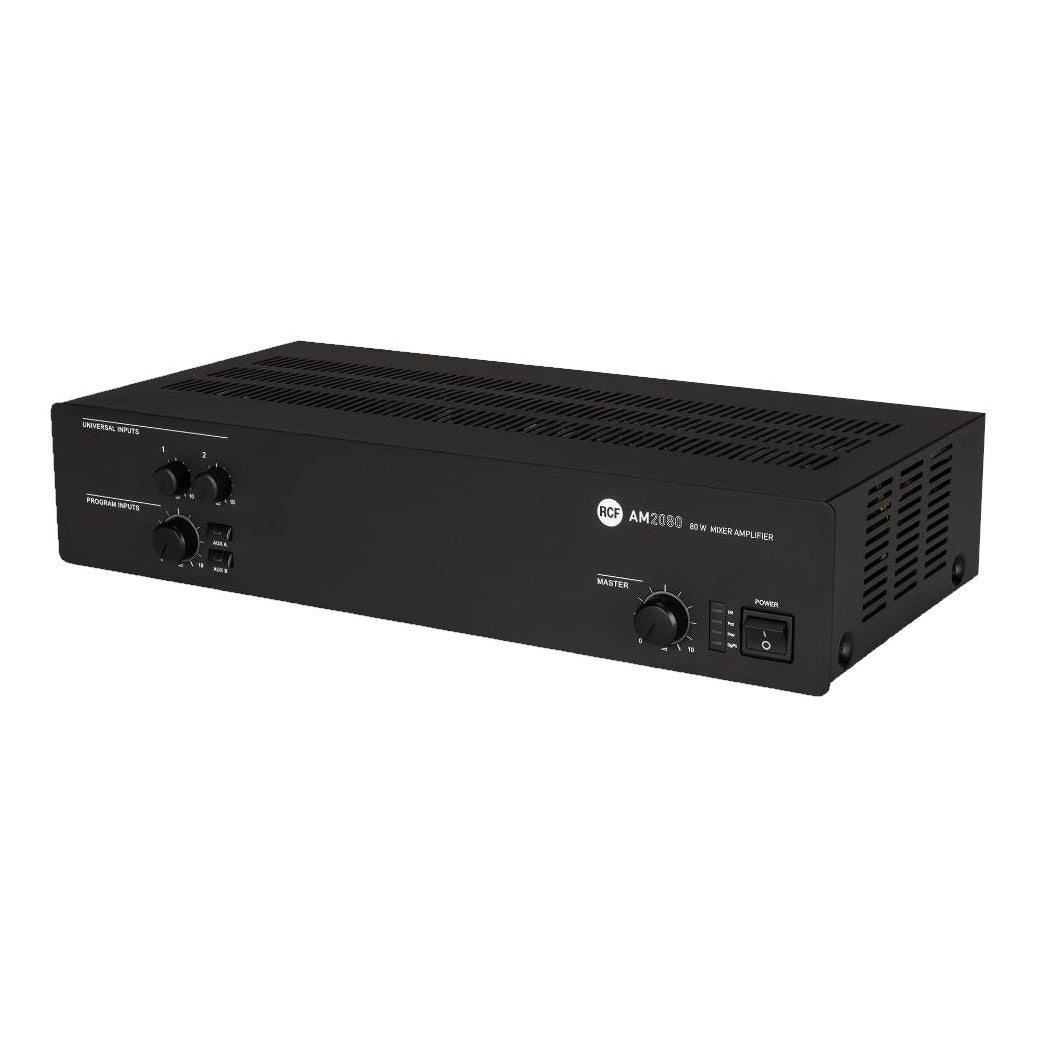

The AM 2080 is a mixer amplifier with 2 universal mic / line inputs and 2 AUX line inputs. The internal amplifier has an output of 80 watts and can be operated on low-resistance (4 ohms) or high-resistance (70 / 100V) loudspeaker networks.
RCF AM2080 Features
- Full digital technology Mixer Amplifier 80 W RMS
- 100 V - 70 V and 4 Ohm outputs
- 2 universal inputs with phantom facility on screw terminal connections
- XLR connector on input 1
- RJ45 connectors on input 2 for connection to BM3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On Hold and PRE outputs
- Digital Chime and Siren built-in generator
- AM2080 80W Mixer Amplifier1
- AMPLIFIER
- Frequency Response (-3dB): 50 Hz ÷ 16 Hz
- Distortion (THD+N) @ 1 kHz nominal power: <0.3 %
- INPUT SECTION
- Total number of inputs: 5
- Balanced: 5
- Unbalanced: 1
- Mono: 4
- Stereo: 2
- Line inputs: 2
- Line connectors: RCA
- Mic+Line inputs: 2
- Mic+Line connectors: Euroblock, XLR
- Mic+Line Phantom: 30 V DC
- VOX: Yes
- Paging inputs: 1
- Paging connectors: RJ45
- Paging command: Contact
- OUTPUT SECTION
- Signal output number: 2
- Signal output connectors: RCA
- Power output connectors: Euroblock
- PROCESSING
- Tone controls: Yes
- High-pass filter: 150 Hz
- CONFIGURATION AND CONTROL
- Configuration: DIP switch, Front panel
- Priority: Yes
- Music on hold: Yes
- Chime tone: Yes
- PROTECTIONS
- Cooling: Convection
- Short circuit: Yes
- Thermal: Yes
- DC: Yes
- Fuses: Yes
- POWER REQUIREMENT
- Operating voltage: 220-240/115V~ 50/60Hz
- Voltage selection: Internal
- Power consumption (MAX): 160W
- PHYSICAL
- Cabinet/Case Material: Metal
- Color: Black
- Rack mounting: 19", 2U
- Dimensions (HxWxD): 3.46x17.4x9.06" (88x442x230mm)
- Weight: 8.31 lbs (3.77 kg)
- SHIPPING
- Package Dimensions (HxWxD): 7.87x12.99x19.69" (200x330x500mm)
- Package Weight: 11.86 lbs (5.38 kg)
