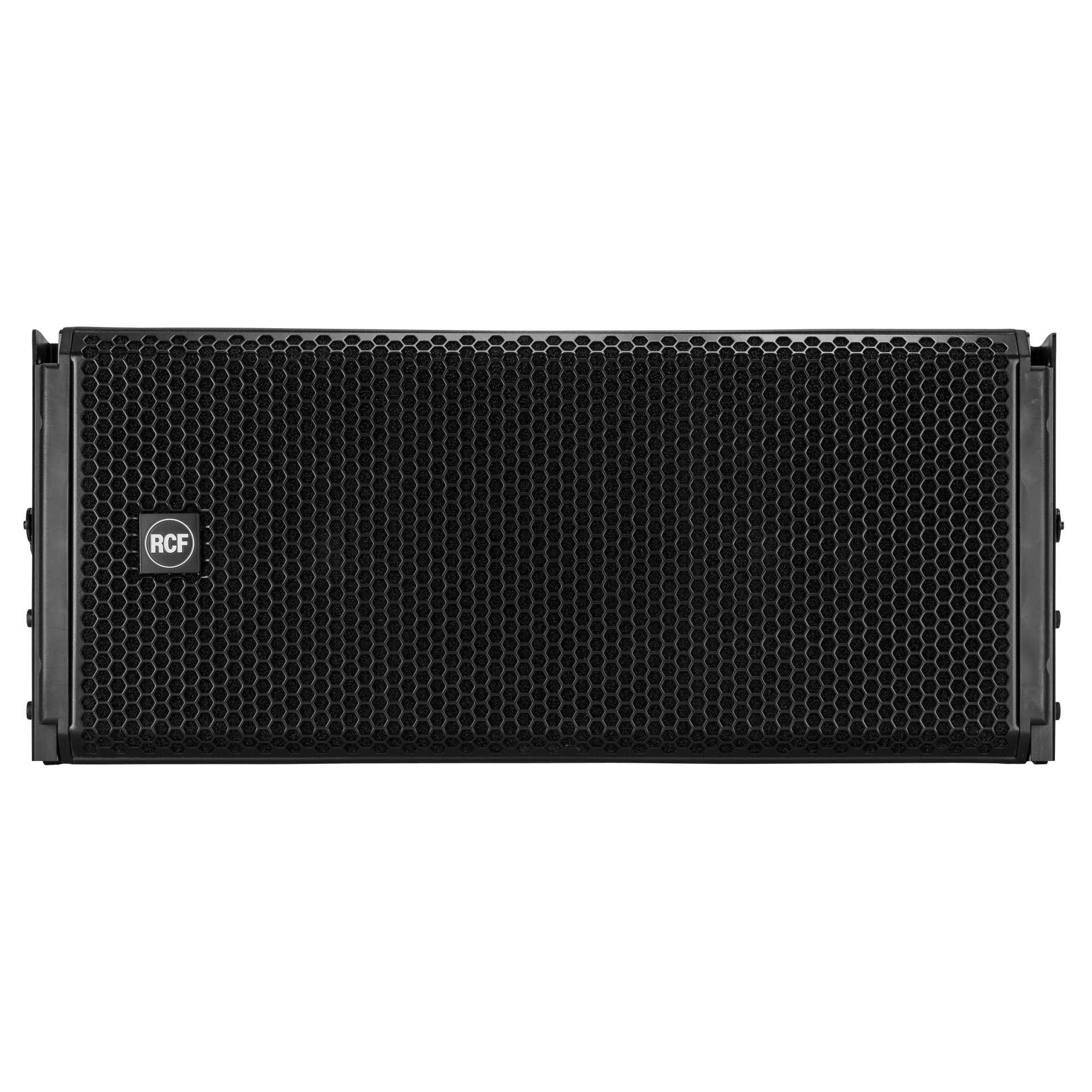

RCF HDL 30-A Dual 10-Inch Powered Line Array Speaker

The HDL 30-A from RCF is a dual 10” powered line array speaker with two 10” woofers and a 4” titanium compression driver.

Great for medium to large events both indoors and outdoors, this compact bi-amped 2-way active touring system offers great acoustical power in a lightweight, easy-to-handle build.

RCF HDL 30-A Features

• Dual 10-Inch Powered Line Array Speaker in a lightweight, easy-to-handle build
• Great for live sound applications in medium to large events both indoors and outdoors
• 2200W two-way amplifier
• 137 dB Max SPL
• 48 kHz, 32 bit DSP processing
• 1.4" titanium compression driver, 4.0" voice coil
• 2 x 10" neodymium woofers, 2.5" voice coil
• Exclusive FiRPHASE technology on-board
• RDNet control and management
• 680 Hz crossover point

• HDL 30-A Dual 10-Inch Powered Line Array Speaker1

• ACOUSTICAL
  • Frequency Response: 50 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 137 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 15°
• TRANSDUCERS
  • Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
  • Woofer: 2 x 10'' neo, 2.5'' v.c
• INPUT/OUTPUT SECTION
  • Input signal: bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu
• PROCESSOR SECTION
  • Crossover Frequencies: 680 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Preset, RDNet bypass
  • RDNet: Yes
• POWER SECTION
  • Total Power: 2200 W Peak, 1100 W RMS
  • High frequencies: 600 W Peak, 300 W RMS
  • Low frequencies: 1600 W Peak, 800 W RMS
  • Cooling: Forced
  • Connections: Powercon IN/OUT
• PHYSICAL
  • Cabinet/Case Material: PP Composite
  • Hardware: Array fittings
  • Handles: 2 Side
  • Grille: Steel
  • Color: Black
  • Dimensions (HxWxD): 11.54x27.76x19.79" (293x705x502mm)
  • Weight: 55.12 lbs (25kg)
• SHIPPING
  • Package Dimensions (HxWxD): 14.37x31.5x21.65" (365x800x550mm)
  • Package Weight: 62.17 lbs (28.2 kg)

More about the HDL 30-A

Other features in the HDL 30-A include its time coherent waveguide, state-of-the-art RCF transducers with neodymium magnets, and composite cabinet with zero-degree phase and ultra-linear amplitude response. In addition, its 2200W class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max.

More about RCF’s HDL Powered Line Array Systems

Using modern and innovative technology to enhance flexibility and functionality, HDL is RCF’s series of powered line array speakers and subwoofers.

Perfectly scalable and equipped for professional applications including live sound rental companies, HDL incorporates transducers to optimize audio purity, reduce distortion, and enhance power handling levels.

Great for venues small and large, HDL features RCF’s innovative dual silicone spider design for maximized stability and increased cooling ability for better ventilation. Meanwhile, RCF’s unique voice coil design is constructed with superior quality. HDL’s custom 4PATH-designed waveguide allows precise coverage while also delivering a superb, linear high-frequency response.

The HDL series also offers a Direct Drive configuration to guarantee optimal transfer of energy between the voice coil and dome assembly to achieve a smoother, more extended frequency response beyond 10KHz while minimizing distortion and breakup modes.

These line array speakers deliver high power handling and the excellent mechanical and thermal properties that make RCF’s neodymium compression drivers robust and reliable. Their RDNet Networked Control functionality enables the best listening experience at any venue.
