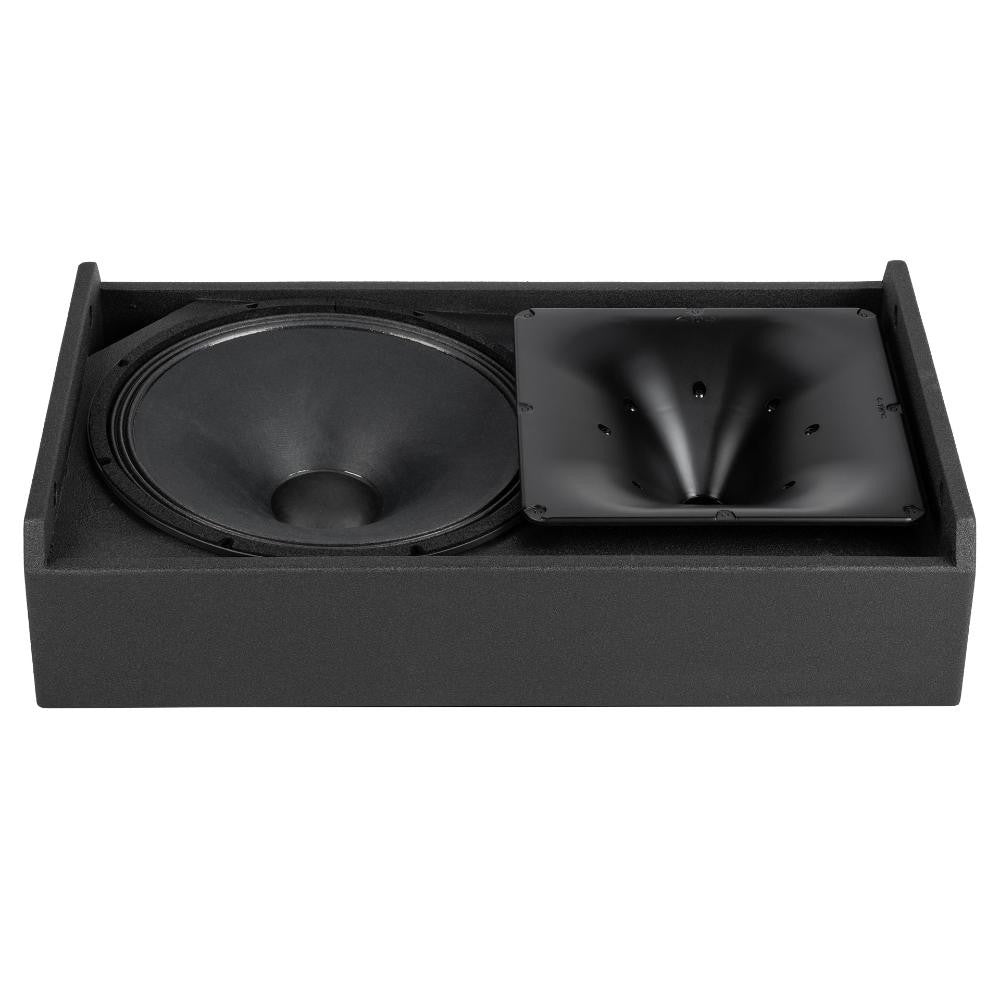

RCF NX 915-SMA 15-Inch Powered Stage Monitor

NX 915-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 15” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 131dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 915-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 915-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.

RCF NX 915-SMA Features

• Up to 131 dB Sound Pressure Level
• 2100W Class-D bi-amplification
• 45-20000 Hz linear frequency response
• 1.75" Compression Driver
• 15" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management
• 70ºx100º Constant Directivity Coverage Angle
• Perfectly tailored for horizontal or vertical deployment

• NX 915-SMA 15-Inch Powered Stage Monitor1

• Acoustical
  • Frequency response: 45 hz ÷ 20000 hz
  • Max spl @ 1m: 131 db
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 70°
• Transducers
  • Compression driver: 1 x 1.0'', 1.75'' v.c
  • Woofer: 15'', 2.5'' v.c
• Input/output section
  • Input signal: Bal/unbal
  • Input connectors: Combo xlr/jack
  • Output connectors: Xlr
  • Input sensitivity: -2 dbu/+4 dbu
• Processor section
  • Crossover frequencies: 1600 hz
  • Protections: Thermal, rms
  • Limiter: Soft limiter
• Power section
  • Total power: 2100W peak
  • High frequencies: 700W peak
  • Low frequencies: 1400W peak
  • Cooling: Convection
  • Connections: Powercon true1 top in/out
• Standard complianceSafety agency: Ce compliant
• Physical
  • Cabinet/case material: Plywood
  • Handles: 1 on side and 1 on top
  • Pole mount/cap: Yes
  • Grille: Steel
  • Color: Black
• Size
  • Height: 357.3 mm / 14.07 inches
  • Width: 705 mm / 27.76 inches
  • Depth: 456.6 mm / 17.98 inches
  • Weight: 17.3 kg / 38.14 lbs
• Shipping
  • Package height: 745 mm / 29.33 inches
  • Package width: 505 mm / 19.88 inches
  • Package depth: 425 mm / 16.73 inches
  • Package weight: 20 kg / 44.09 lbs

More about RCF's NX Column Speakers

RCF's NX Series of are comprised of masterfully engineered wooden speakers with remarkable audio performance and extended versatility for professional audio applications.
