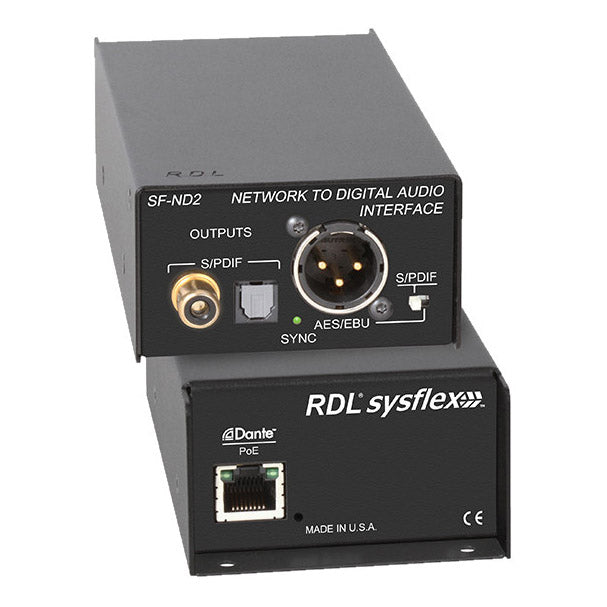

RDL SF-ND2 Dante Network to Digital Audio Interface

The SF-ND2 is a digital audio interface that converts two Dante network audio channels to a stereo digital audio output. The output is switch-selectable to provide an AES/EBU on XLR, or coaxial and optical S/PDIF. The switch enables the appropriate output jack and any required electrical and data format conversion. Special software is not required to configure the module. The SF-ND2 is a professional grade product for studio quality performance.

The SF-ND2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-ND2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

RDL SF-ND2 Features

• Converts Two Dante Network Audio Signals to Left/Right Digital Audio
• AES/EBU or S/PDIF Coaxial or Optical Output
• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Digital Audio Output Sample Rate Equals Dante Sample Rate
• Transformer-Isolated AES/EBU Output
• Dante Audio Signals Remain in the Digital Domain through the Output
• Special Software Not Required for Module Setup
• LED Indicator for Valid Power and Network Sync
• Operation from PoE Power (Class 0, IEEE 802.3af)
• Equipped for SysFlex® Rack Mounting or Surface Mounting

• SF-ND2 Dante Network to Digital Audio Interface1

• Network Connector RJ45 with Link and Speed indicators
• Digital Audio Ethernet Protocol Dante
• Transmission Rate 100 Mbps
• Sample Rates Supported 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
• Bit Depth Supported 24 bits
• Outputs (3) 110 Ω AES/EBU XLR, transformer isolated; 75 Ω S/PDIF RCA jack; S/PDIF optical (selectable)
• Indicators (3) Ethernet Link and Speed (2, rear panel); Sync (front panel)
• Ambient Operating Environment 0° C to 50° C
• Power Requirement PoE Class 0, IEEE 802.3af
• Dimensions 2.79" (7.09 cm) W; 1.68" (4.27 cm) H; 5.77" (14.66 cm) D
• Package Type Cardboard Box
• Package Dimensions 7 x 4.375 x 2.25 in.
• Shipping Weight 1.09 lbs.
• WEEE weight 0.88 lbs.
• Tariff code 8543.70.9100
