The ST-DA3 gives you the advantages of an audio distribution amplifier PLUS you can put it where you need it. The ST-DA3 allows bridging of any audio line, adjusting the gain, and driving up to three high or low impedance, balanced or unbalanced loads. The ST-DA3's wideband circuitry produces the unsurpassed pure clarity, low-distortion and low-noise for which RDL products are known.
The ST-DA3 features RDL's SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the PWR minus terminal and any module ground, the module power becomes ground-referenced.
RDL ST-DA3 Features
- Audio Distribution with up to 3 Outputs
- Balanced or Unbalanced Input and Outputs
- Bridge an Audio Line for Local Distribution
- Distribution with Impedance Conversion
- Distribution with Gain or Loss
- Inputs and Outputs RF-Protected
- 1x3 Mono or Use Two Units for Stereo
- RDL® SupplyFlex™ Power Input Configuration

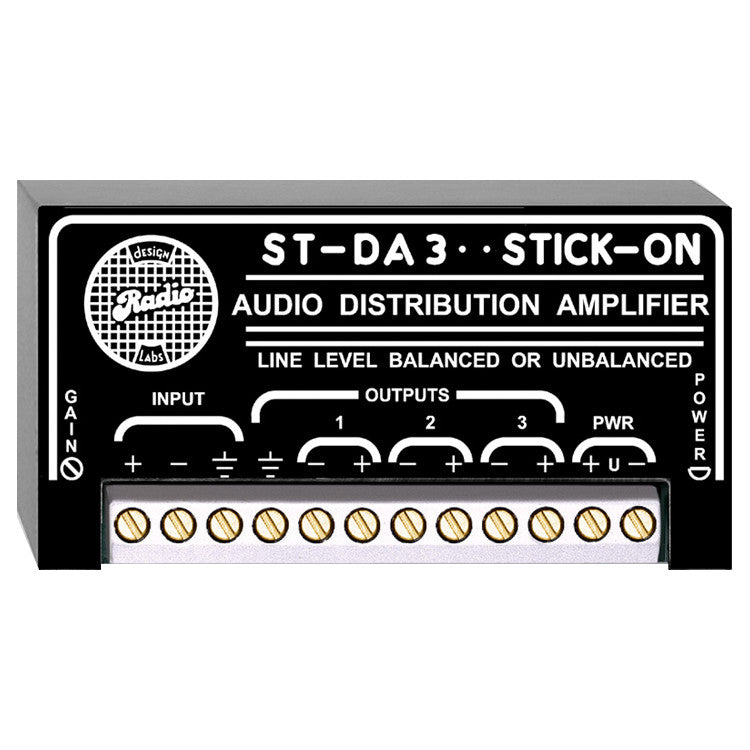

- ST-DA3 1x3 Line Level Distributor1
- Input20 kΩ balanced or unbalanced
- Input Signal-15 dBV to +21 dBu (for +4 dBu output)
- Maximum Input Level+24 dBu
- Outputs (3)150 Ω balanced or 75 Ω unbalanced
- Output Signal
- Balanced:+4 dBu nominal balanced;
- Unbalanced:6 dB below balanced line level
- Maximum Output Level:+25 dBu
- Frequency Response:10 Hz to 100 kHz (± 0.05 dB)
- THD+N:< 0.002% (unity gain)
- IMD:< 0.003% (unity gain)
- Noise below +4 dBu:< -98 dB (unity gain)
- Headroom:> 20 dB (above +4 dBu)
- Gain:Unity ± 17 dB (adjustable)
- CMRR:> 60 dB (50 Hz to 120 Hz)
- Power Requirement:GROUND-REFERENCED or FLOATING, 24 Vdc @ 70 mA
- Package Dimensions:2 x 2 x 4 in.
- Shipping Weight:0.2 lbs.
- WEEE weight:0.145 lbs.
