RDL STD-10K Passive Audio Divider/Combiner

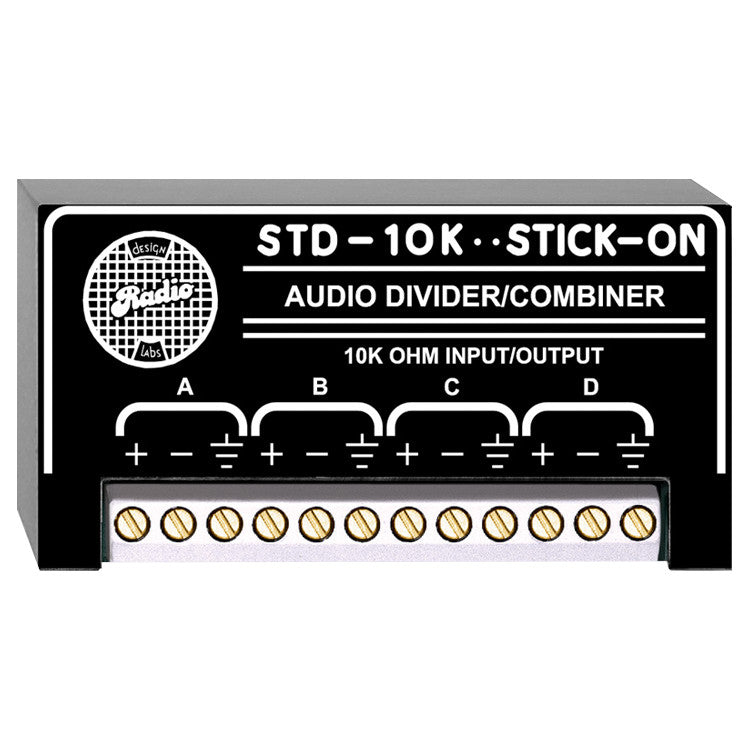

The STD-10K from RDL is a Passive Audio Divider/Combiner.

Each STD module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The STD modules are available in 150Ω, 600Ω, and 10 kΩ models. All inputs and outputs are balanced.

RDL STD-10K Features

• 150, 600 or 10 kO Operation
• Combine Audio Signals to a Single Output
• Filter RF from an Audio Line
• Combine Stereo Signals
• Feed a Mono Signal to Stereo Inputs
• Combine Multiple Mics to a Single Amp
• Compactness of RDL STICK-ONs

• STD-10K Passive Audio Divider / Combiner1

• Circuit TypePassive
• Circuit ConfigurationBalanced
• Input/Output Impedance10kΩ
• Number of Inputs / Outputs4 total; usable in any combination; split 1 in to 3 out; 2 in to 2 out; 3 in to 1 out
• Insertion Loss3dB
• Isolation Between Channels3dB (use RDL mixers or distribution amps for isolation)
• Maximum Signal Input+22dBu
• Power RequirementPassive (not required)
• Package TypeCardboard Box
• Package Dimensions2x2x4 in.
• Shipping Weight0.185 lbs
• WEEE weight0.135 lbs
• Tariff code8543.70.9960
