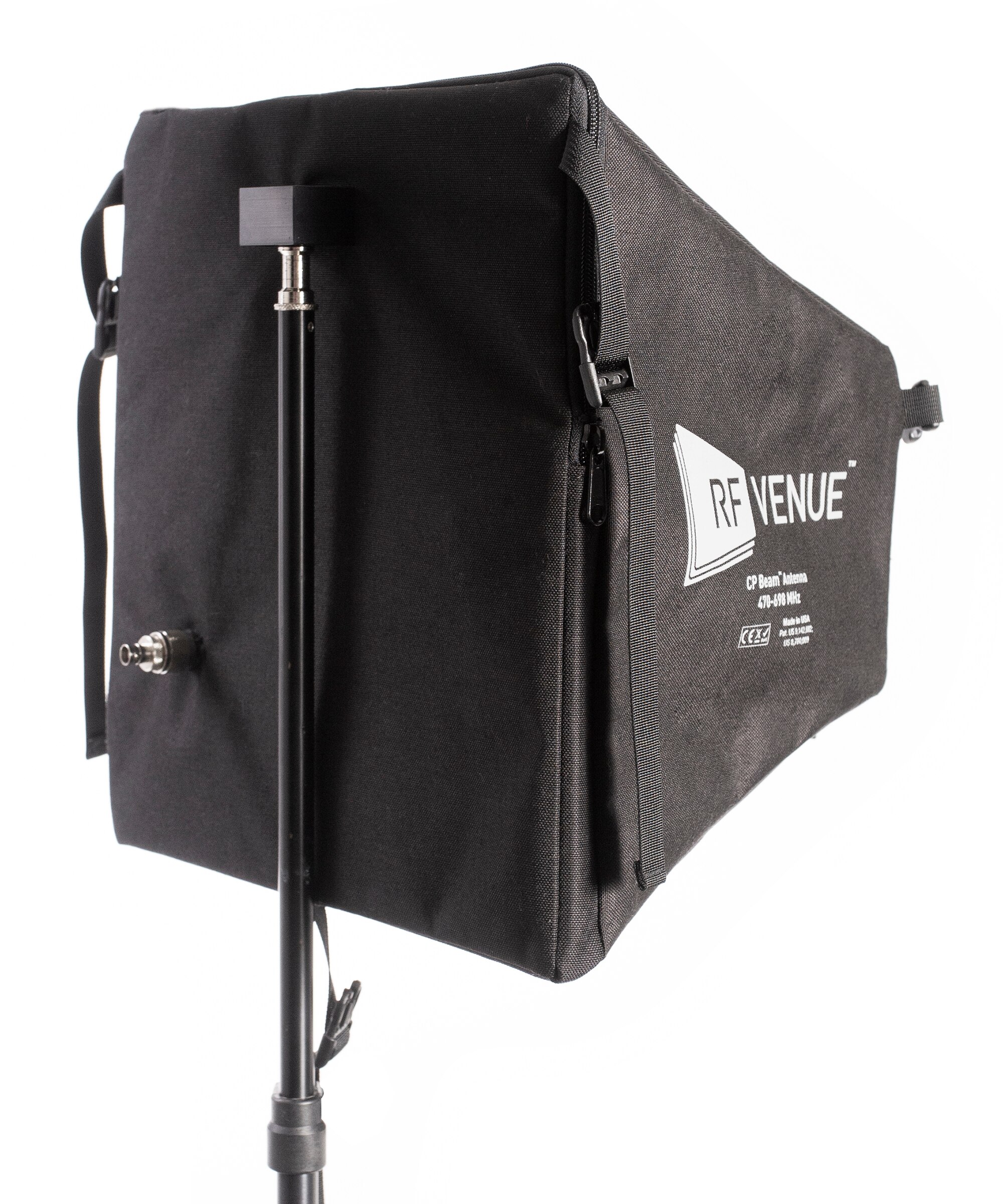

The CP Beam™ antenna from RF Venue is a high performance, directional UHF antenna in a lightweight, portable package. Unlike other bulky helicals that require flight cases, the CP Beam is quickly deployed and stowed - fitting in a 3RU rack drawer and weighing just 2.5 lbs. 9 dBd of gain makes it an ideal choice for long range applications. Widely used on major concert tours for monitoring and comms, the CP Beam connects to any brand IEM, wireless mic, or UHF intercom.
RF Venue CP Beam Features
- Provides constant signal regardless of IEM receiver position
- Can collapse to fit in a rack drawer for transport
- Not buried in a rack--better signal with line of sight to IEMs
- Focused beam signal for better reception compared to omnidirectional
- CP Beam Antenna1
- Electrical
- Operating frequency: 470–698 MHz
- Bandwidth: 228 MHz
- Average return loss: -13.15 dB
- Impedance: 50Ω
- Pattern type: Beam
- Polarization: RHCP
- Azimuth X
- Beam width:. 63°
- F/B ratio: -10 dB
- F/S ratio:. -12 dB
- Azimuth Y
- Beam width: 70°
- F/B ratio: -9 dB
- F/S ratio: -12 dB
- Squint: < 2 dB
- Gain: 9 dBd
- Physical
- Length: 355mm
- Height: 355mm
- Weight: 1100g
- Mount threads: 1/4-20, 3/8-16, 5/8-27
- Operating temperature: -23°C–54°C
- Color: Black fabric
- Connector(s): N female (BNC supplied)
What’s in the Box?
