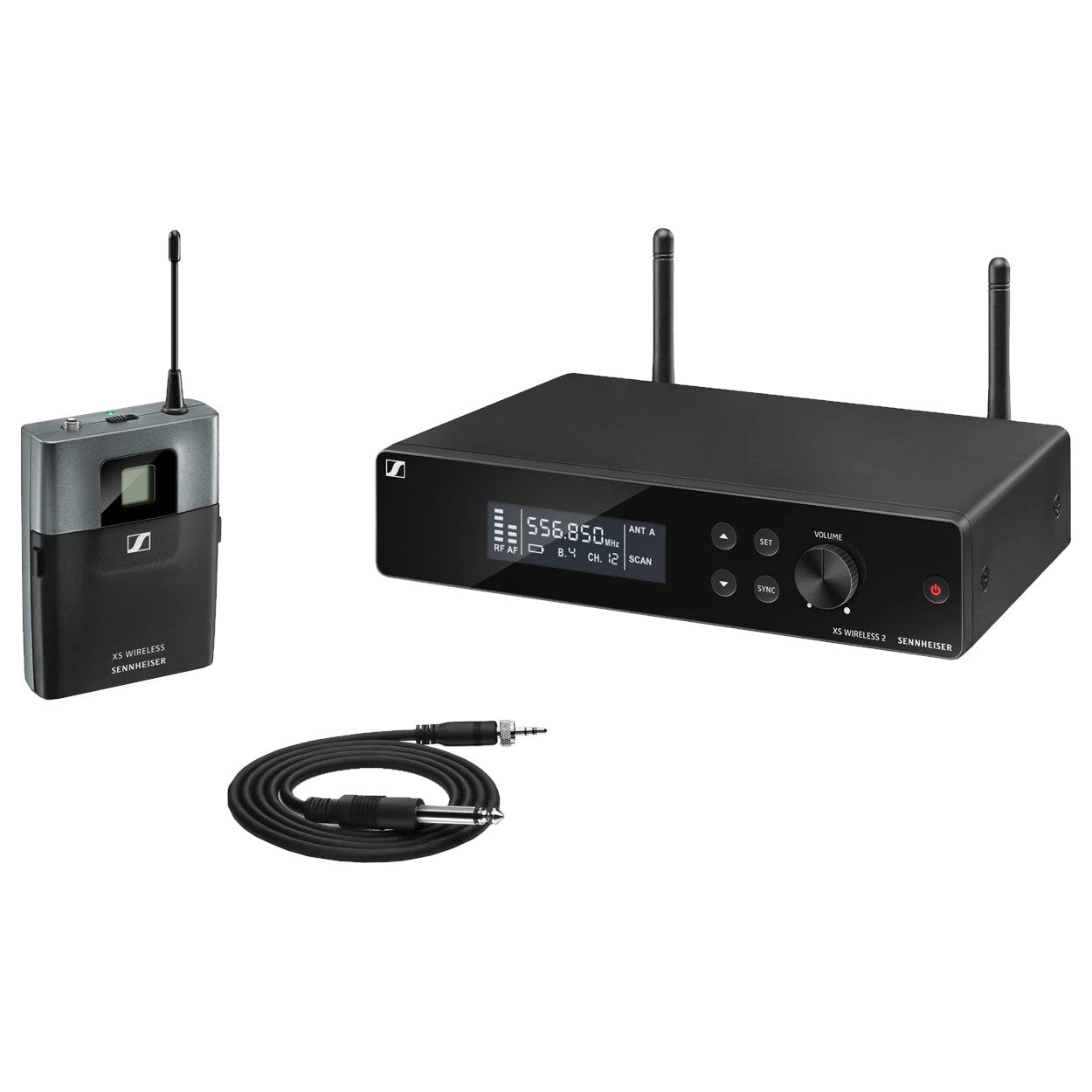

The XSW 2-CI1 Wireless Instrument System from Sennheiser grows with your music. Ideal for guitarists and bassists, and designed specifically to meet the challenges of live sound, this is an easy-to-use, all-in-one wireless system that is packed with features and gives you freedom of movement onstage. This system includes a wireless stationary receiver for quick set-up and hassle-free handling, a lightweight and compact bodypack transmitter, and a robust instrument cable as well as a rackmount kit, power supply, AA batteries, and storage pouch.
Sennheiser XSW 2-CI1 Features
- Robust instrument cable and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
- Receiver EM-XSW 21
- Bodypack transmitter SK-XSW1
- Instrument cable Cl11
- Power supply NT 12-5 CW1
- 2 AA batteries2
- Rackmount kit1
- Pouch1
- User manual1
- Receiver
- Dimensions: approx. 200x42x127 mm
- Weight: approx. 680g
- Power supply: 12 V DC nom. / 300 mA
- Housing: metal
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Transmitter
- Dimensions: approx. 71x96x28 mm
- Weight: approx. 95g
- Operating time: approx. 10 hrs
- Power supply: 2 AA size batteries, 1.5 V
- Housing: robust ABS
- Frequency response: 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion: ≤ 0.9%
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Modulation: wideband FM
- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Diversity reception: True Diversity
- Frequency: 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range: A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)"
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 40 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
The XSW 2 Receiver
Enjoy flexibility without losing user-friendliness. The XS Wireless 2 Receiver from Sennheiser boasts more features than the XS Wireless 1, but is still intuitive and easy to set up. Simply plug it in and choose your settings from the manual options at the top of the receiver. The XSW 2 delivers pounding bass, crisp treble, two tuners (true diversity technology) to eliminate dropouts, and low-noise transmission that doesn’t create acoustic feedback. This receiver boasts an all-metal housing that can take the punishment of performances, day in and day out, without compromising its audio signal quality.
More about Sennheiser’s XS Wireless Series
Professional live sound. Effortless operation. Unmatched value. Sennheiser’s XS Wireless Series are products that offer the features and functionality that live sound applications demand. Ideal for stages and settings of all kinds, XSW delivers cordless freedom of movement—without compromising on audio quality.
XSW systems work in the professional UHF range, using predefined frequency banks to achieve fast, simple configurations that allow users to customize their setup while integrating seamlessly with preexisting gear. Each member of the XSW family offers advanced features such as integrated equalization, limiter, and focus mode, ensuring that you get the quality you need today, while each product in the line is sturdily built to continue to perform into the future.
Choose from handheld, lavalier, or headworn microphone transmitters. Effortlessly sync with an XSW receiver. Get up-to-the-second feedback with XSW’s In-Ear Monitoring systems. Round out your setup with accessories including rack mount kits and more. Sennheiser also offers all-in-one sets that come with all you need to get started right out of the box—and yet can be further scaled as your needs change or grow.
