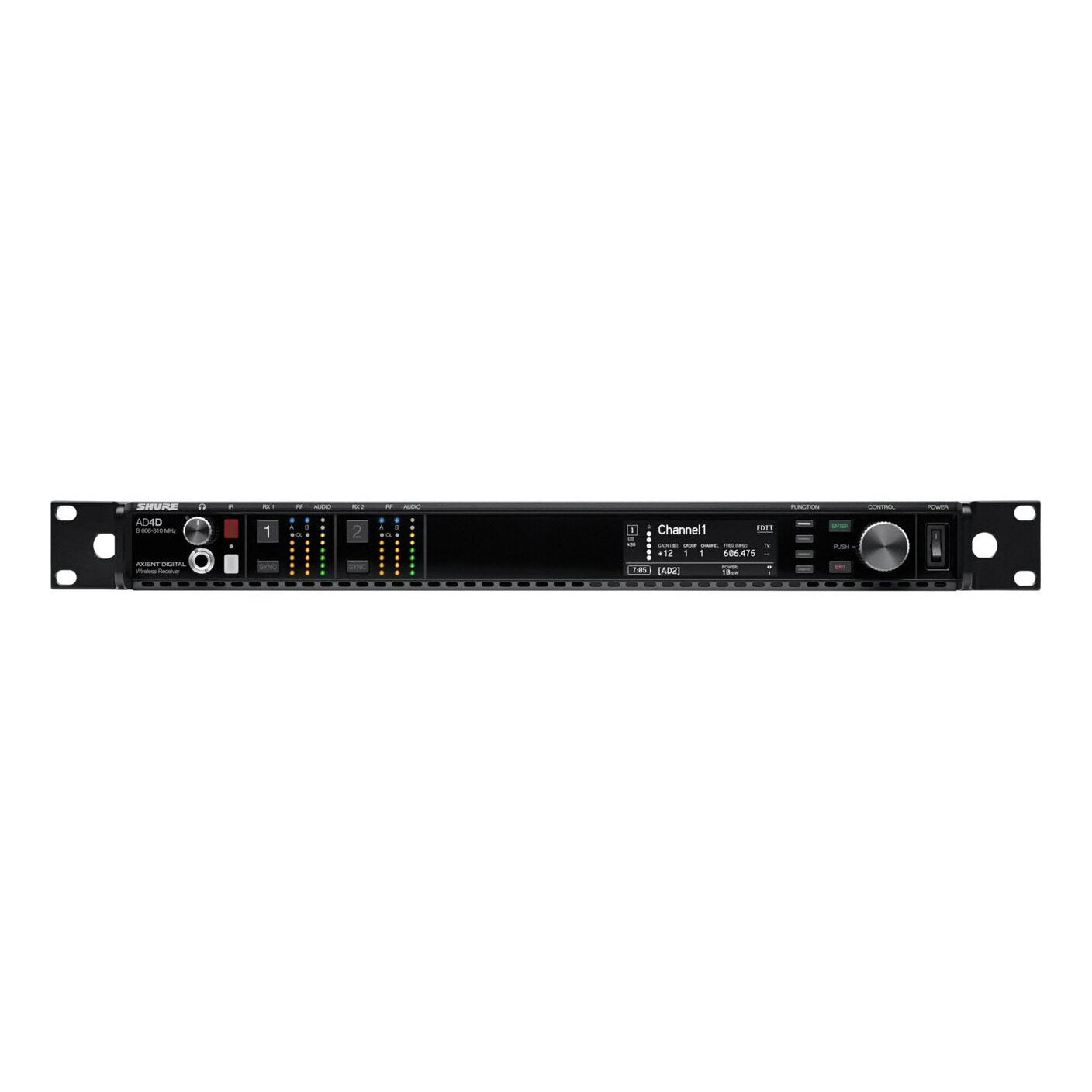

Setting the standard in spectral efficiency, the AD4D from Shure is a dual-channel digital wireless receiver that offers reliable wireless audio in even the most challenging environments. Part of the Axient® Digital Wireless Systems series, this receiver is compatible with AD and ADX series transmitters.
This receiver boasts all the bells and whistles you need to optimize your audio while cutting the cord on wired sound setups. High Density Mode intensifies the coverage and maxes out the system’s channel count, while the receiver’s true digital diversity reception minimizes dropouts and a Channel Quality meter gives you real-time status of RF signal-to-noise. Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app deliver streamlined management and flexibility to your workflow. A configurable Ethernet switch lets you choose between a Dante or AES67 digital output, while the headphone jack on its front panel enables Dante™ Cue and Dante™ Browse monitoring. Other features include low latency performance, wide tuning up to 184 MHz, locking AC connectors and secure transmission via its encryption enabling.
This receiver is sold in multiple varieties, allowing you to choose accessory options as well as frequency alternatives.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Shure AD4D Features
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- AES3 output
- Channel Quality meter displays RF signal-to-noise
- Locking AC connectors
- AD4D 2-Channel Receiver1
- Hardware Kit1
- BNC Bulkhead Adapter1
- 1/2 Wave Receiver Antenna2
- BNC-BNC Cable (short)1
- BNC-BNC Cable (long)1
- Coaxial RF Cascade Cable1
- AC Power Cable, VLock1
- AC Power Jumper Cable1
- 3 Foot Ethernet Cable1
- Ethernet Jumper Cable1
- Receiver TypeRackmount
- Channels2
- Antenna TypeDetachable
- SpectrumDigital UHF / 900 MHz ISM
- DiversityTrue Digital Diversity
- Working Range330 feet
- Frequency Response20 Hz-20 kHz
- Audio Outputs2 x XLR
1 x XLR (AES3)
2 x 1/4"
1 x 1/4" (headphones) - Network I/O4 x RJ45
- Power SourceAC Input
- Dimensions (HxWxD)1.73x19x13.1"
- Weight10.1 lbs
More about Shure’s Axient Digital Wireless System
The Axient® Digital Wireless System from Shure is designed to provide pristine audio clarity, advanced connectivity, scalable hardware, network charging, and premium wireless signal stability—all in a system that gives you precise control while offering optimal convenience of use in professional wireless production. Developed according to the input of top audio professionals, Axient Digital boasts 184 mHz tuning across all receivers and transmitters, up to 47 active transmitters per 6 MHz TV channel, and an industry-leading 2 milliseconds of latency. These features, with flat frequency response, multiple digital audio output options, next-generation digital radio with encryption, and Quadversity and High-Density modes, make the Axient Digital Wireless System a powerhouse for modern broadcast needs no matter how crowded the spectrum environment.
Every component of the Axient Digital Wireless Systems has been stress-tested and fine-tuned for efficiency, durability, and reliability so you get the best results. Choose from a handheld transmitter (the AD2 wireless microphone transmitter) or a bodypack transmitter (AD1, AD1LEMO3, or ADX1), and pair it with a receiver such as the AD4D Dual Channel or AD4Q Quad-Channel. Other members of the Axient Digital series of equipment include the ATX600 Axient Spectrum Manager, the AD610 Diversity ShowLink Access Point, and the SBC-AX Axient Charging Module.
Complex setups, high channel counts, and constrained spectrum are everyday hurdles for today’s major events and tours. Axient Digital was built to tackle these problems head-on to give you ultimate control over professional production and improve every aspect of your workflow. Offering big sound quality for big audiences, this wireless system is the ideal solution for major award shows, halftime performances, music festivals, and even Broadway.
