Shure ADX1M Axient Digital Wireless Micro Bodypack Transmitter

Achieve impeccable audio and enhanced RF performance with Shure’s ADX1M Axient Digital Wireless Micro Bodypack Transmitter. Compatible with Axient Digital Wireless Systems, its integrated Diversity ShowLink remote control allows real-time settings adjustments and automatic interference avoidance.

Perfect for applications where you need your gear to be heard and not seen, this micro-bodypack’s dimensions (68x60x18mm) and streamlined build allow it to be easily concealed. It contains a patent-pending adaptive antenna that boosts the wireless signal when the ADX1M is worn against the body. Sealed controls and a recessed LEMO connector protect the bodypack’s inner workings from sweat, humidity, and other moisture and environmental variables. Additionally, the lightweight Ultem®PEI construction delivers durability, comfort, and heat resistance, making the ADX1M a rugged choice for the most demanding performances and presentations.

Compact, yet feature packed. Choose between two transmission modes: Standard Mode optimizes wireless coverage, while High Density Mode intensifies the coverage and maxes out the system’s channel count. The AXD1M offers a high-contrast OLED display so you can see your settings even in low-light environments. Other features include wide tuning up to 184 MHz, an included detachable ¼-wave antenna, and secure transmission via its encryption enabling.

The bodypack comes with two SB910 rechargeable batteries that empower the bodypack to operate uninterrupted for up to 7 hours. It also includes a threaded TA4F adapter, a transmitter carrying case, a detachable belt clip, and a zippered bag.

This digital wireless bodypack transmitter is available in multiple frequency options.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ADX1M Features

• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Small and streamlined design for better concealment and wear (68mm — 60mm — 18mm)
• High-contrast OLED display
• Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
• Ultem®PEI construction for heat resistance and durability
• Recessed LEMO connector
• Sealed buttons and LEMO connection for protection against sweat and moisture ingress
• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission
• Up to 7 hours of runtime with SB910M rechargeable battery

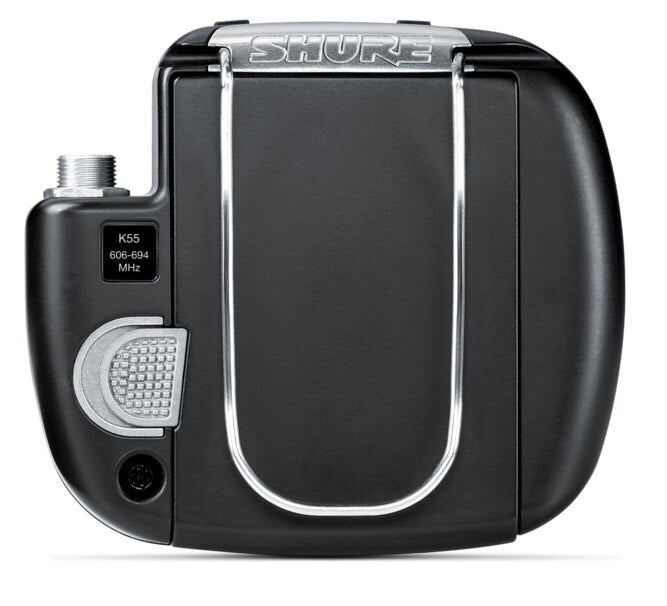

• Detachable belt clip

• ADX1M Axient Digital Wireless Micro Bodypack Transmitter1
• Rechargeable battery1
• Var. By Region: 1/4 Wave Antenna1
• WA340: Threaded TA4F Adapter1
• WA610: Transmitter Carrying Case1
• 29A13: Zipper Bag1
• 44A12547: Belt Clip1

• Gain Offset Range–12 to 21 dB (in 1 dB steps)
• Battery TypeShure SB910M Rechargeable Li-Ion
• Battery Run Time @10 mWup to 7 hours
• Dimensions (HxWxD)2.4" x 2.7" x 0.7"
• Weight1.9 oz (53 g) without battery
• HousingUltem® (PEI)
• Audio Input
  • Connector: LEMO3 Connector
  • Configuration: Unbalanced
  • Impedance: 8.2 MΩ
  • Maximum Input Level 1 kHz at 1% THD
  • Pad Off: 8.5 dBV (7.5 Vpp)
  • Pad Off: 20.5 dBV (30 Vpp)
  • Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥20: –120 dBV A-weighted, typical
• RF Output
  • Antenna Type: Integrated Helical
  • Impedance: 50 Ω
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Axient Digital Propietary
  • Power: 2 mW, 10 mW, 20 mW Varies by region
  • Specific Absorption Rate (SAR): <0.24 W/kg

More about Shure’s ADX Series

The Axient® Digital Wireless System from Shure is designed to provide pristine audio clarity, advanced connectivity, scalable hardware, network charging, and premium wireless signal stability—all in a system that gives you precise control while offering optimal convenience of use in professional wireless production. ADX models in this series feature integrated Diversity ShowLink, a remote control functionality that allows you to make adjustments to settings in real-time and automatically minimizes interference.

Developed according to the input of top audio professionals, Axient Digital boasts 184 mHz tuning across all receivers and transmitters, up to 47 active transmitters per 6 MHz TV channel, and an industry-leading 2 milliseconds of latency. These features, with flat frequency response, multiple digital audio output options, next-generation digital radio with encryption, and Quadversity and High-Density modes, make the Axient Digital Wireless System a powerhouse for modern broadcast needs no matter how crowded the spectrum environment.

Complex setups, high channel counts, and constrained spectrum are everyday hurdles for today’s major events and tours. Axient Digital was built to tackle these problems head-on to give you ultimate control over professional production and improve every aspect of your workflow. Every component of the Axient Digital Wireless Systems has been stress-tested and fine-tuned for efficiency, durability, and reliability so you get the best results. Choose from a handheld transmitter or a bodypack transmitter, and pair it with a receiver. Offering big sound quality for big audiences, this wireless system is the ideal solution for major award shows, halftime performances, music festivals, and even Broadway.
