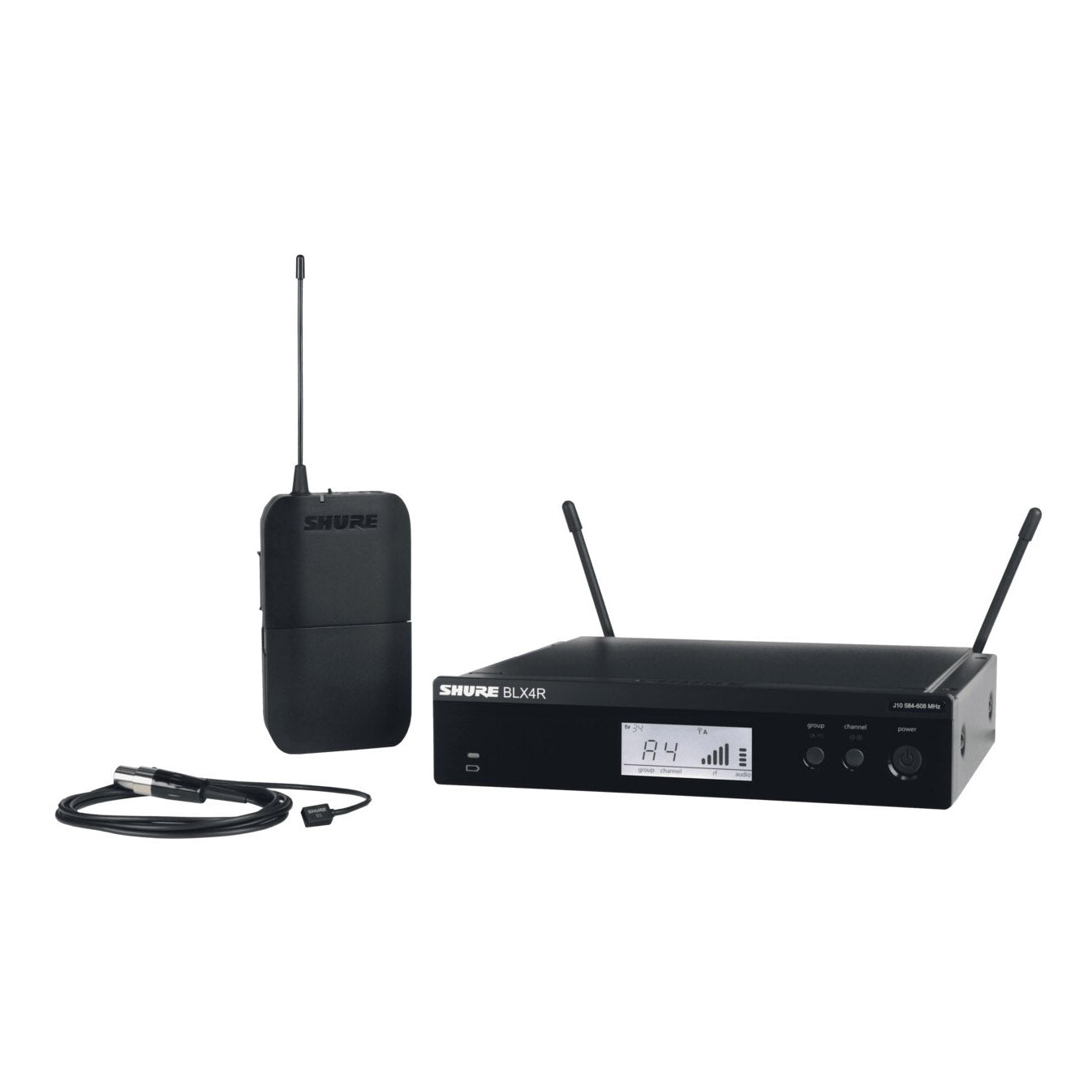

A great choice for theaters, lecture halls, and even TV and film sets, the Shure BLX14R/W93 Wireless Lavalier Microphone System offers powerful, professional audio in a low-profile build.
This system is comprised of a WL93 Lavalier Microphone, a BLX1 Bodypack Transmitter, and a BLX4R Rack Mount Receiver, as well as a Single and Dual Rackmount Kit, two 1/4 Wave Antennas, a power supply and two AA batteries, and a zippered bag for safe storage.
Shure BLX14R/W93 System Features
- Wireless lavalier microphone system delivers powerful, professional audio in a compact build
- A great choice for theaters, lecture halls, and even TV and film sets
- Simple setup and intuitive interface
- Up to 14 hours of battery life
- Single and dual rackmount kit offer flexibility in setup
- Low distortion, wide dynamic range in lavalier microphone
- WL93 Lavalier Microphone1
- BLX1 Bodypack Transmitter1
- BLX4R Rack Mount Receiver1
- Single and Dual Rackmount Kit1
- 1/4 Wave Antennas2
- Zipper Bag1
- Power Supply1
- A Batteries2
- System
- Working Range: 91 m (300 ft) Line of Sight
- Audio Frequency Response: 50 to 15,000 Hz
- Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone: 0.5%, typical
- Dynamic Range: 100 dB, A-weighted, typical
- Operating Temperature: -18°C (0°F) to 57°C (135°F)
- Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
- BLX1 Transmitter
- Audio Input Level
- max: -16 dBVmaximum
- min (0 dB): +10 dBVmaximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 MΩ
- RF Transmitter Output: 10 mW, typical
- Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
- Weight: 2.6 oz. (75 g), without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
- BLX4R Receiver
- Output Impedance
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone
- XLR connector: –20.5 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
- RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 1.65 in. X 7.80 in.X 6.42 in. (42 mm X 198 mm X 163 mm) H x W x D
- Weight without antennas: 2.2 lbs (998 g)
- Housing: Molded ABS, steel
- Power Requirements: 12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
More about the WL93 Lavalier Microphone
This omnidirectional miniature lavalier microphone provides full, clear sound in speech applications.
It features a smooth, tailored frequency response, controlled low-frequency roll-off, and a visually-discreet design that makes it easy to incorporate into body-worn mic applications including broadcasting, public speaking, theatrical performances, and other sound reinforcement projects.
More about the BLX1 Bodypack Transmitter
The lightweight yet rugged build of the BLX1 means you don’t have to worry about damage during everyday use, and it easily clips onto a belt, pocket, or guitar strap for optimal placement.
A TQG connection on this transmitter enables connection with lavalier, headset, earset, and instrument mics, as well as guitar cables.
Turn the transmitter on and off and control your gain with controls on the bodypack itself. Its group and channel selection buttons enable quick frequency matching with the receiver.
More about the BLX4R Wireless Receiver
Boasting a rugged build, optimized linearity and frequency response, and scalable versatility, the BLX4R includes a rack mount kit for permanent installation, allowing it to be easily incorporated into any setup. Its removable antennas enable quick distribution.
It can expand to up to 12 mic channels, making it a great choice to start and grow your sound system.
Setup is quick and easy with QuickScan frequency selection, which also provides improved linearity and frequency response.
More about Shure's BLX Wireless Systems
With consistent reliability across a wide variety of transmitters, receivers, and accessories, you’re sure to find a sound that works for you from this extensive selection of BLX gear.
Go wireless with confidence using this specially engineered system that gives you pristine audio clarity without noise interference or disappointing dropouts.
BLX gives you the versatility and selection to pick and choose precisely the equipment to fit your needs whatever that venue or performance. Whether you’re a performer or presenter, BLX produces stellar, dependable sound.
