Passive wall mount loudspeaker for speech and program audio reproduction in meeting rooms employing enhanced spatial audio. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and amplifiers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-source solution.
- Innovative Balanced Mode Radiator (BMR) driver with two passive radiators is voiced specifically for speech intelligibility in conferencing and meeting applications
- Wide dispersion for complete room coverage and consistent sound quality for every listener
- Flat-disc diaphragm provides more natural sound than conventional cone-shaped diaphragms and a more compact size
- Eliminates the need for a crossover in the critical 1-3 kHz speech frequency range and delivers sound from a single point source for maximum clarity
- Up to four MXP-3 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier
- MXN-AMP provides optimized presets as well as user-configurable EQ for each speaker output
- Shure Audio Encryption protects audio content between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room
- Compact design with only 2.5-inch depth can be wall mounted horizontally or vertically, or on-ceiling with included mounting hardware (Note: Shure recommends the use of an additional safety tether for overhead components.)
- Available in black or white finish, paintable to match room décor
- Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom

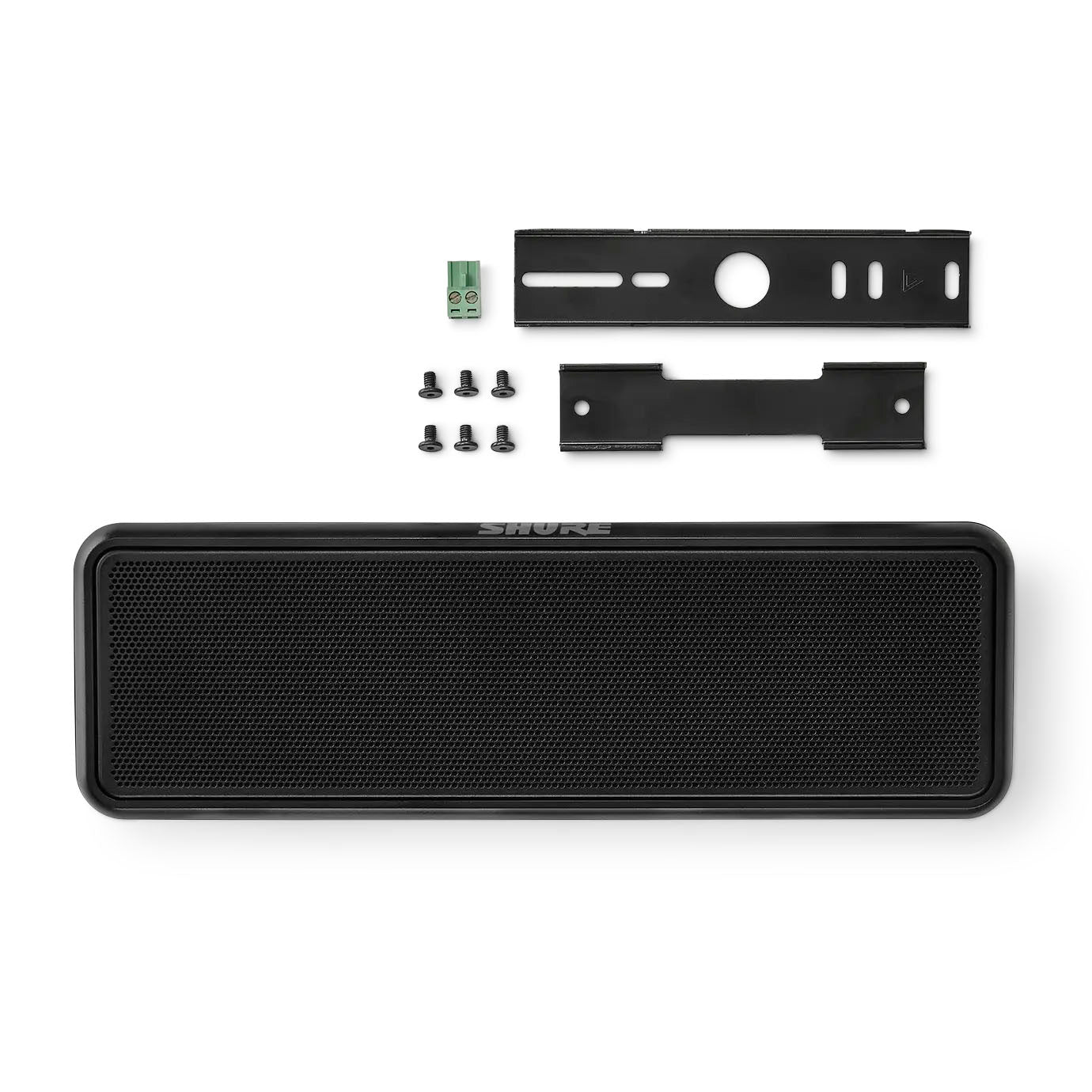

What’s in the Box?
- Microflex® MXP-3 Wall Mount Passive Loudspeaker1
- Loudspeaker bracket with mounting screws1
- Wall mount bracket with screws1
- 2-pin block connector1
- Weight1.34 lbs (0.61 kg)
- Dimensions11.16 x 3.54 x 1.91 in. (283.5 x 90 x 48.5 mm)
- Connector Type2-pin connector, 0.2 in. (5.08 mm) pitch, Jiekle 2EDG-5.08 V/R
- Coverage Angle (Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4)98°
- Frequency Response~120Hz - 20kHz
- Nominal Impedance4Ω
- Maximum Input Power10 W
- Maximum SPL (at an RMS input of 21 dBV, IEC standard 60268-5)AES75 max linear sound levels: 89 dBZ, 108 dBZpk, 89 dBA
- Sensitivity (at 2.83 V): 82 dB SPL 1W/meter
- Operating Temperature Range-7 to 40°C (19.4 to 104°F)
- Storage Temperature Range-29 to 74°C (-20 to 165°F)
