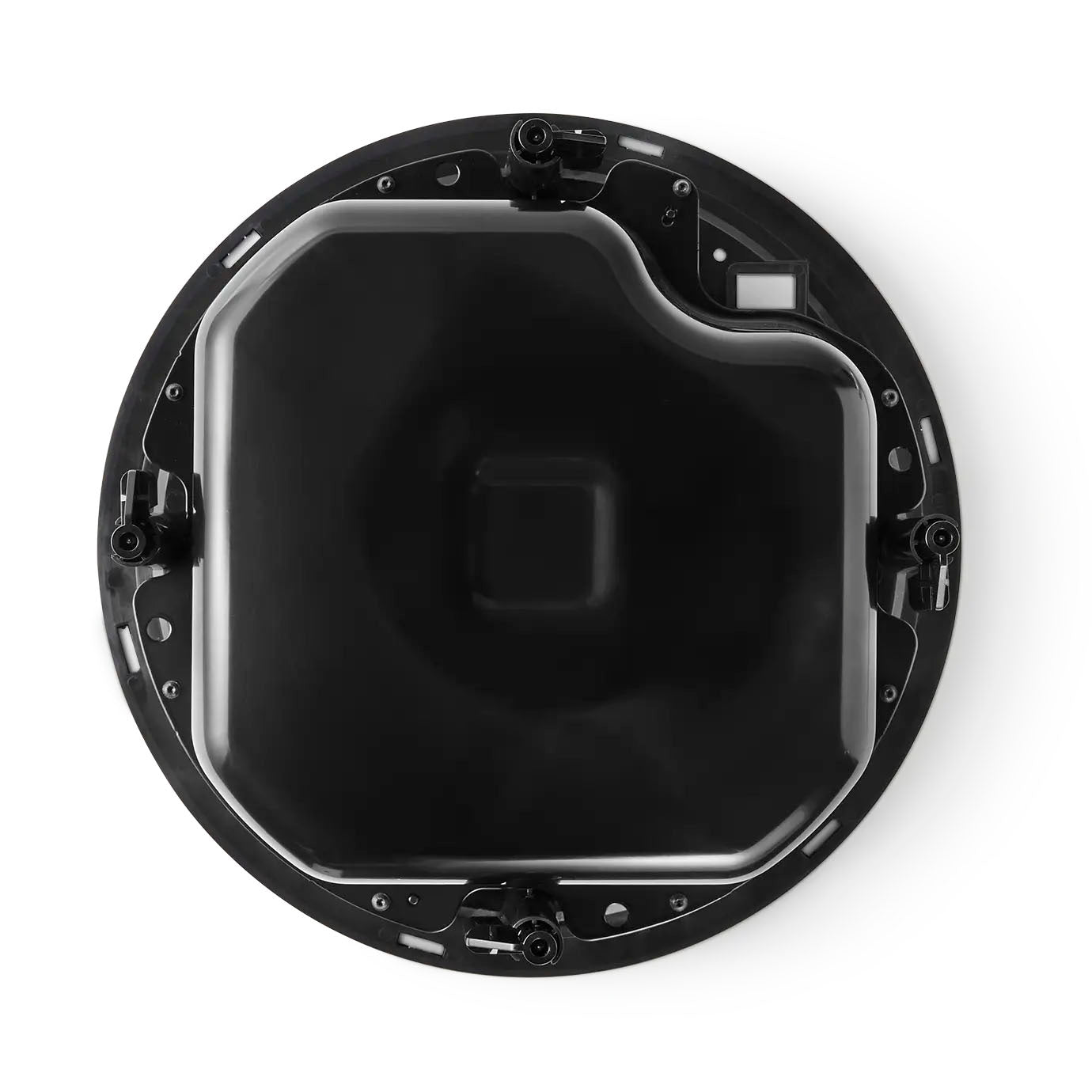

Shure MXP-5 Ceiling-Mount Passive Loudspeaker

Shallow-depth passive ceiling-mount loudspeaker ideal for retrofit in existing in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and amplifiers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-source solution.

• Dual-driver architecture delivers full-fidelity, premium audio reproduction and optimum speech intelligibility.
• 4-inch main driver features large, well-vented motor for increased power handling; 1-inch tweeter features neodymium magnet and heatsink fins for high efficiency.
• Identical voicing to MXP-6 Pendant Loudspeaker for consistent tonality in blended installations.
• Up to eight MXP-5 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier in 70/100V mode.
• MXN-AMP provides optimized presets as well as user-configurable EQ for each speaker output.
• Shure Audio Encryption protects audio content between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room.
• Shallow depth is ideal for retrofit applications or ceilings with limited mounting space.
• Similar diameter to MXA901 ceiling array microphone creates a symmetrical appearance and allows MXP-5 to replace smaller speakers by enlarging mounting hole in existing ceiling tile.
• Switch on front faceplate allows for quick adjustment between 70/100v or 8 ohm operation.
• Available A-MXP-5-TB Tile Bridge and A-MXP-5-NCB New Construction Bracket allow for easy installation. (Note: Shure recommends the use of an additional safety tether for overhead components.)
• Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams

• Weight7.23 lbs (3.28 kg)
• Dimensions13.39 x 13.39 x 4.41 in. (340 x 340 x 111.9 mm)
• Connector Type4-pin connector, 0.2 in. (5.08 mm) pitch
• Coverage Angle (Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4)95°
• Frequency Response~90Hz - 20kHz
• Nominal Impedance4Ω
• Maximum Input Power28 W
• Maximum SPL (at an RMS input level of 23 dBV, IEC standard 60268-5)AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA
• Sensitivity (at 2.83 V): 92 db SPL 1W/m
• Operating Temperature Range-7 to 40°C (19.4 to 104°F)
• Storage Temperature Range-29 to 74°C (-20 to 165°F)
• Transformer Taps
  • 70V: 4Ω, 1.875 W, 3.75 W, 7.5 W, 15 W
  • 100V: 4Ω, 3.75 W, 7.5 W, 15 W

• Microflex® MXP-5 Ceiling Mount Passive Loudspeaker1
• Loudspeaker grille with Shure logo pin1
• 4-pin block connector1
