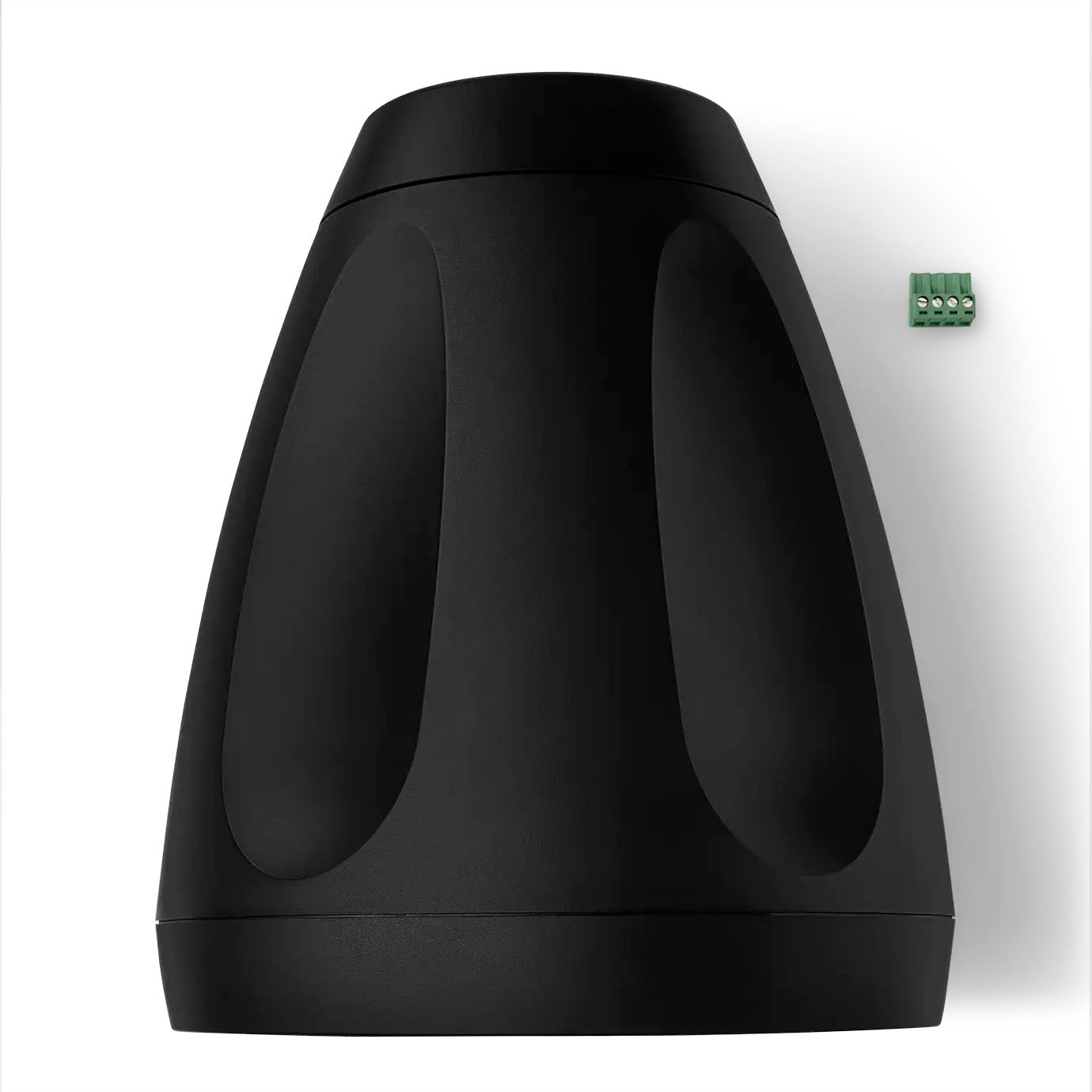

Pendant-style passive loudspeaker for speech and program audio reproduction in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and amplifiers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-source solution.
- Dual-driver architecture delivers full-fidelity, premium audio reproduction and optimum speech intelligibility.
- 4-inch main driver features large, well-vented motor for increased power handling; 1-inch tweeter features neodymium magnet and heatsink fins for high efficiency.
- Identical voicing to MXP-5 Ceiling Loudspeaker for consistent tonality in blended installations.
- Rear switch allows for quick adjustment between 70/100v transformer or 8 ohm operation.
- Utilize multiple pendants to easily meet the audio coverage needs of almost any room size. (Note: Shure recommends the use of an additional safety tether for overhead components.)
- Sleek industrial design available in white or black finish, paintable to match room décor.
- Up to eight MXP-6 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier in 70/100V mode.
- MXN-AMP provides optimized presets as well as user-configurable EQ for each speaker output.
- Shure Audio Encryption protects audio content between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room.
- Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams.
- Weight5.5 lbs (2.5 kg)
- Dimensions10.96 x 9.06 x 9.06 in. (278.5 x 230.2 x 230.2 mm)
- Connector Type4-pin connector, 0.2 in. (5.08 mm) pitch
- Coverage Angle(Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4): 95°
- Frequency Response~90Hz - 20kHz
- Nominal Impedance4Ω
- Maximum Input Power28W
- Maximum SPL (at an RMS input level of 23 dBV)AES75 max linear sound levels: 98 dBz, 113 dbZpk, 97 dBA
- Sensitivity (at 2.83 V/1m): 93 db SPL
- Operating Temperature Range-7 to 40°C (19.4 to 104°F)
- Storage Temperature Range-29 to 74°C (-20 to 165°F)
- Transformer Taps
- 70V: 4Ω, 1.875 W, 3.75 W, 7.5 W, 15 W
- 100V: 4Ω, 3.75 W, 7.5 W, 15 W
- Microflex® MXP-6 Pendant Passive Loudspeaker1
- Shure logo pin1
- 4-pin block connector1
What’s in the Box?
