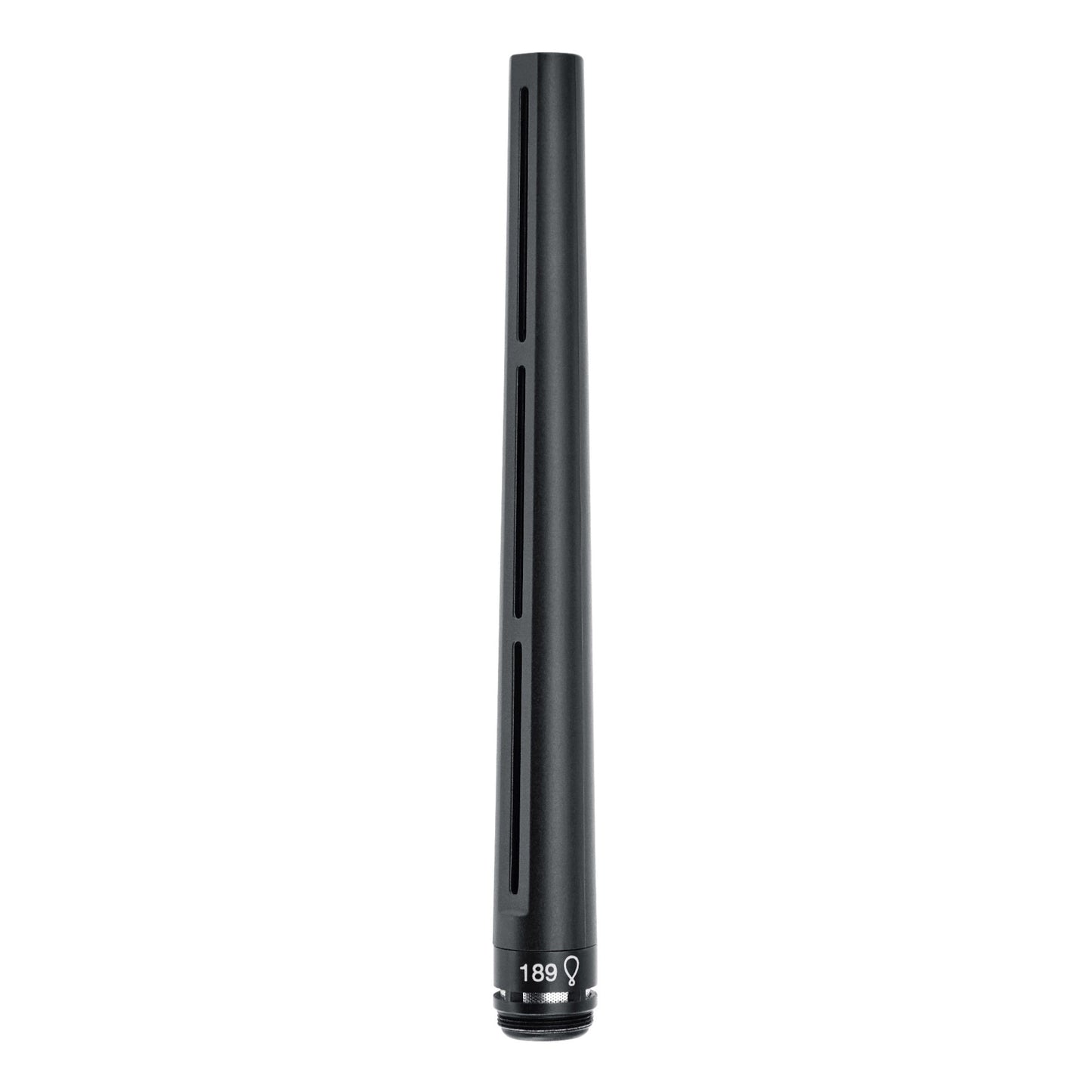

Shure R189 Microflex Mini-Shotgun Microphone Capsule

The Shure R189 mini-shotgun mic cartridge threads onto all Microflex® (MX) gooseneck and overhead mics, including Microflex Wireless and Microflex Complete. The narrow pickup pattern rejects ambient noise and prevents feedback in rooms with sound reinforcement, making it an ideal choice for noisy conference rooms and live presentations.

Shure R189 Features

• Highly directional microphone
• Threads onto all Microflex® (MX) gooseneck and overhead microphones
• Narrow pickup pattern
• Ideal for noisy conference rooms and live presentations

• R189 Microflex mini-shotgun microphone capsule1

• Transducer Typeelectret condenser
• Polar PatternLobar
• Frequency Response50 to 17,000 Hz
• Output Impedance170 Ω
• Sensitivity (open circuit voltage, @ 1 kHz, typical)-33 dBV/Pa (22 mV)a
• Max. SPL (1 kHz at 1% THD)121 dB SPL
• Signal to Noise Ratio68 dB
• Dynamic Range95 dB SPL
• Common Mode Rejection45dB, minimum
• Preamplifier Output Clipping Level-8dBV (0.4V)
• Self Noise (equivalent SPL, A-weighted, typical)36 dB
• Power Requirementsphantom power, 48-52V DC, 8.0mA

More about Shure's Microflex System

The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

Shure’s award-winning Microflex® Advance™ Array Microphones set new standards for corporate AV setups, unified communications, and IT management. Combining beamforming technology with IntelliMix® Digital Signal Processing, the MXA product series delivers unmatched performance for AV conferencing, camera tracking, voice lift, and speech reinforcement. Ideal for corporate offices, educational facilities, and government buildings, MXA equips you to achieve professional results in even the most demanding environments.
