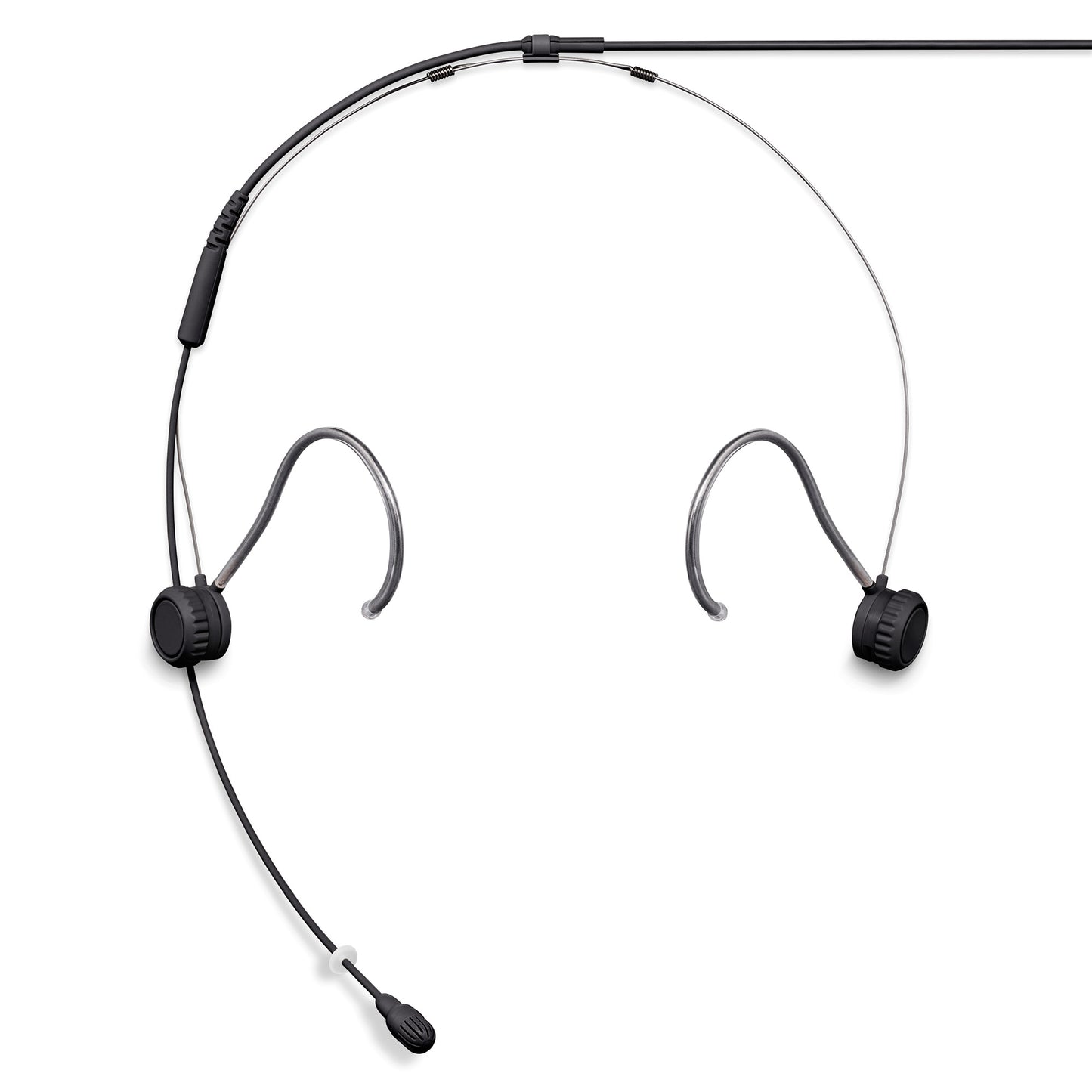

Shure TH53 TwinPlex Subminiature Headset Microphone

The TwinPlex™ TH53 offers the natural sound quality of the new TwinPlex element combined with the ease of a light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch-all with a simple turn of a knob. Plus, switchable sides and a durable 1.6 mm cable with redundant ground round out this professional headset that outperforms the competition in reliability, audio quality, and comfort.

Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package.

The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your headset rises to the challenge, night after night.

Shure TH53 Features

• Comfortable, lightweight, and fully adjustable headset for use in theater, broadcast, and speech applications
• Innovative clutch system allows for fast boom arm length and pitch adjustment
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevents sweat-outs due to an invisible superhydrophobic nanoscopic coating
• Paintable 1.6mm cable that is immune to memory effect and kinks
• Dual redundant ground in cable serves as secondary shield for longevity
• Natural sound signature
• Low sensitivity

• TH53 TwinPlex subminiature headset microphone1

• Transducer TypeCondenser
• Polar PatternOmnidirectional
• Frequency Response20 Hz - 20 kHz
• Sensitivity (at 1kHz)-45.0 dBV (5.62 mV)
• Self Noise (A-weighted, equivalent acoustical)24.5 dB SPL-A
• Signal to Noise Ratio69.5 dB
• Output Clipping Level3 dBV, 1kHz (at 1% THD, typical)
• Max. SPL142 dB SPL (1kHz at 1% THD, typical)
• Dynamic Range117.5 dB typical
• Microphone Current Draw120 to 240 µA, typical
• Bias Voltage (recommended operating voltage)5 VDC
• Housingmolded ABS
• Polaritypositive pressure at diaphragm leads to negative voltage with respect to ground
• Cable Dimensions1.1mm diameter x 66" length
• Microphone Dimensions5.6mm diameter x 13.5mm length
• Weight0.42 oz

More about Shure's Twinplex Microphones

Twinplex™ microphones from Shure provide clean, high-quality audio in five versatile, ultra-compact models. Audio production is clean and pristine, with dynamic ranges from natural, flat high frequencies to robust low frequencies. Each microphone’s off-axis consistency gives you an accurate read that lets the speaker be heard loud and clear with minimal self-noise —even when not speaking directly into the mic.
