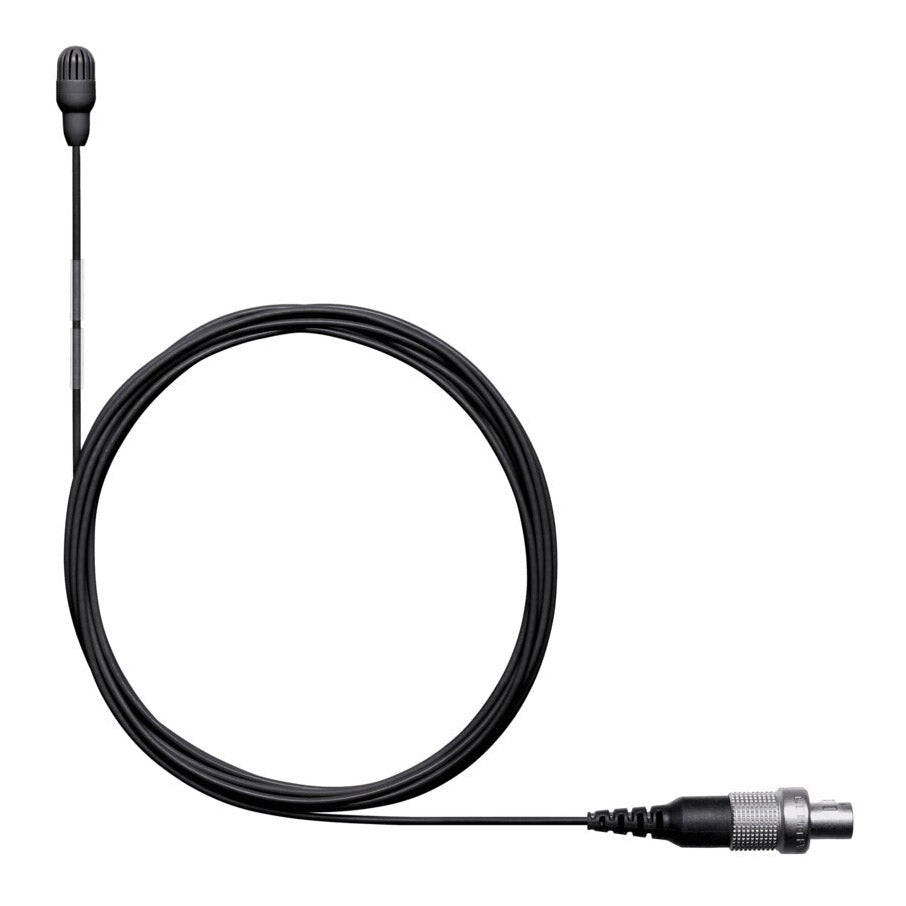

Shure TL45 TwinPlex Subminiature Lavalier Microphone

TL45 microphone only

The ultra-thin 1.1 mm diameter paintable cable of the TwinPlex™ TL45 is terminated with a professional LEMO connector and is easily concealed in a costume or wig. Low sensitivity, high max SPL, and interchangeable sweat-resistant frequency caps all make the TL45 the perfect companion for professional theater applications.

Easily hidden in a costume or wig, the TL45 lavalier mic is the perfect companion for professional theater applications.

Shure TL45 Features

• The TL45 is ideal for use in theater settings
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible superhydrophobic, nanoscopic coating
• Paintable 1.1 mm cable that is immune to memory effect and kinks
• A single medical-grade spiraling conductor in the cable delivers increased flexibility while built-in reinforcing fibers offer additional cable strength for longevity
• Sound signature: Natural
• Sensitivity: Low

• TL45 TwinPlex subminiature lavalier microphone1

• Transducer TypeCondenser
• Polar PatternOmnidirectional
• Frequency Response20 Hz - 20 kHz
• Sensitivity (at 1kHz)-45.0 dBV (5.62 mV)
• Self-Noise (A-weighted, equivalent acoustical)24.5 dB SPL-A
• Signal-to-Noise Ratio69.5 dB
• Output Clipping Level3.0 dBV, 1kHz (at 1% THD, typical)
• Max. SPL142 dB SPL (1kHz at 1% THD typical)
• Dynamic Range117.5 dB typical
• Microphone Current Draw120 to 240 µA, typical
• Bias Voltage (recommended operating voltage)5 VDC
• Housingmolded ABS
• Cable Dimensions1.1mm diameter x 66" length
• Microphone Dimensions5.6mm diameter x 13.5mm length
• Weight0.42 oz (12 g)

More about Shure's TwinPlex Subminiature Lavaliers

Twinplex™ microphones from Shure provide clean, high-quality audio in five versatile, ultra-compact models. Audio production is clean and pristine, with dynamic ranges from natural, flat high frequencies to robust low frequencies. Each microphone’s off-axis consistency gives you an accurate read that lets the speaker be heard loud and clear with minimal self-noise —even when not speaking directly into the mic.
