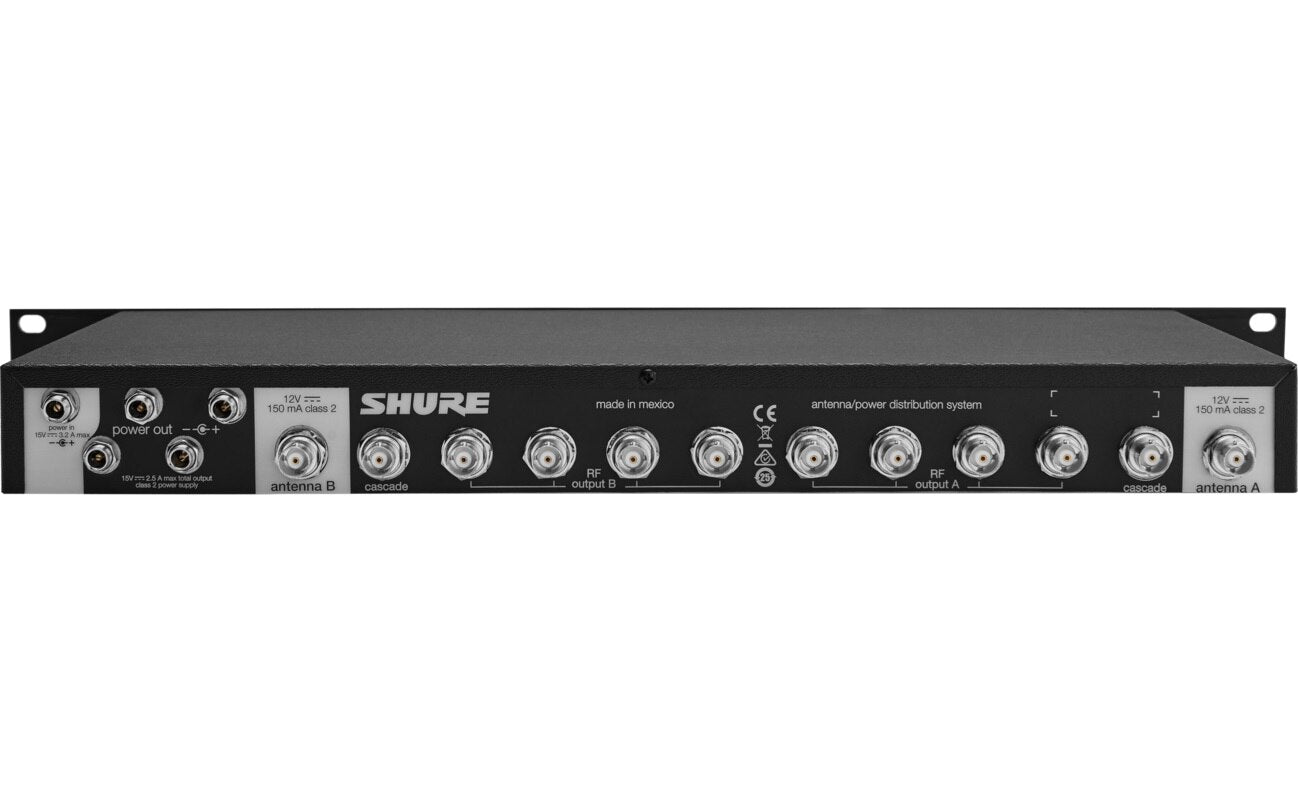

Shure UA844+SWB Antenna Distribution System

UA844+SWB is available with or without cable.

UA844+ replaces UA844. Antenna Splitter and Power Distribution System for receivers, 4-way active antenna splitter plus cascade port, external power supply.

The UA844+ Antenna Distribution System lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time. So you can set it, forget it, and have more flexibility to make sure it all sounds perfect.

UA844+SWB contains:
• 2 - 6 ft. (ca. 1,8 m) BNC cables
• 10 - 22 in. (60 cm) BNC cables
• 4 - Locking DC power cables (for ULX4D, ULXP4)
• 4 - Non-locking DC power cables (for QLXD4, SLX4, BLX4R)
• 2 - Bulkhead adaptors
• 1 - Rack mount Hardware kit
• 1 - PS60 Power supply

UA844+SWB/LC contains:
• 2 - 6 ft. (ca. 1,8 m) BNC cables
• 2 - 22 in. (60 cm) BNC cables
• 4 - Non-locking DC power cables (for QLXD4, SLX4, BLX4R) (for ULX4D, ULXP4)
• 2 - Bulkhead adaptors
• 1 - Rack mount Hardware kit
• 1 - PS60 Power supply

Shure UA844+SWB Features

• Front-mounting antenna hardware
• Rack-mounting hardware
• External power supply
• Antenna cables for receiver connections

• Power requirements14 to 18V DC
• DC output14 to 18 V DC (x4)
• Output current2.5A maximum (combined total from all DC outputs)
• Connector typeBNC
• Bias voltage15 V DC (150mA maximum) (x2)
• Impedance50 Ω
• Output intercept point21dBm, typical
• Output connector isolation30dB, typical
• Gain-1 to +1dB
