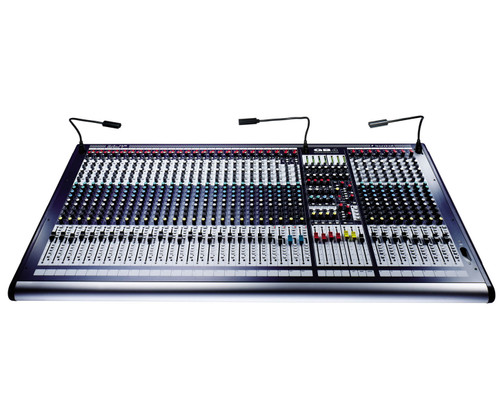

Soundcraft GB2 High Performance Analog Mixer

The GB2 from Soundcraft is a high-performance analog mixer that features 4 group busses configured as 2 stereo subgroups, along with a built-in 6 x 2 matrix. Super compact and streamlined, this member of the GB Series is intended for installations and AV setups that need just the basic mixing functions.

Just because it’s basic doesn’t mean it’s inflexible. Choose from three available frame sizes: 16, 24, or 32 mono inputs. Each variant comes with 2 stereo inputs. GB2 models also boast a GB30 Mic amplifier, enabling high-resolution adjustment over a wide gain range of 55 dB. Other features include 6 Aux busses, 2 stereo input channels with separate mic and line inputs, 4 subgroups for adjusting the width of the stereo signal across the stereo mix, and channel pan settings.

Soundcraft GB2 Features

• Individually switched 48V phantom power on every mono input module
• 6 Aux sends
• 4 Group sends (paired)
• 6 x 2 Output Matrix
• GB30 mic pre-amp
• 4-band GB30 EQ
• Integral power supply, with an external power supply link option
• All metal TRS jacks and Neutrik XLRs
• Direct outputs on all mono input channels

• GB2 Analog Mixer1
• Power cable1

• Noise
  • Measured RMS, 22Hz to 22kHz Bandwidth: -128dBu
  • Mic EIN @ Unity Gain, 150Ω Source Impedance: <-85dBu
  • Mix Output, 32 Inputs Routed to Mix: <-85dBu
  • Group Outputs: <-85dBu
  • Aux Outputs: <-83dBu
  • Matrix Outputs: <-89dBu
• Crosstalk (@1kHz, typical)
  • Input Channel Mute: <-93dBu
  • Input Fader Cut-Off: <-92dBu
  • Pan Isolation: <-70dBu
  • Mix Route Isolation: <-93dBu
  • Group Route Isolation: <-93dBu
  • Adjacent Channel Crosstalk: <-99dBu
  • Group to Mix: <-90dBu
  • Aux Send Pots Offness (typical): <-80dBu
  • Matrix Send Pots Offness (typical): <-80dBu
• Frequency Response (mic/line input to any output, 20Hz - 20kHz)<1 dB
• THD+N (mic sens. -30dBu, +20dBu at all outputs @1kHz)<0.006%
• CMRR (typical @ 1kHz)80 dB
• Input and Output Max. Levels
  • Mono & Stereo Mic Inputs: +15dBu
  • Mono Line Inputs: +30dBu
  • Stereo Line Inputs: +20dBu
  • Insert Returns: +20dBu
  • Any Output: +20dBu
  • Nominal Operating Level: 0dBu
  • Headphone Power: 2x250mW into 200Ω
• Input and Output Impedances
  • Mic Inputs: 2kΩ
  • Line Inputs and Stereo Returns: 10kΩ
  • Input Channels Insert Return: 5kΩ (with EQ in), otherwise 3kΩ
  • Mix, Group, Aux, Matrix & Direct Outputs: 150Ω
  • Insert Sends: 75Ω
  • Recommended Headphone Impedance: 50-600Ω
• Weight
  • 16 Channel: 22 kg
  • 24 Channel: 25 kg
  • 32 Channel: 30 kg

More about Soundcraft’s GB Analog Mixers

Soundcraft’s acclaimed GB Series of analog mixers boasts high-quality engineering, innovative design, and painstaking details.

Rugged and reliable, its mechanical construction has been crafted to endure strenuous conditions, so you get the best performance out of your audio mix no matter how much punishment you give your gear. All input modules are made with individual, vertically mounted PCBs that have been carefully fitted to the front panel of the steel chassis with individually nutted potentiometers.

GB mixers share the stylish aesthetic of Soundcraft’s MH4, MH3, and LX7ii consoles, for a consistent look and feel across their product range. This allows you to get great sound out of great-looking gear.
