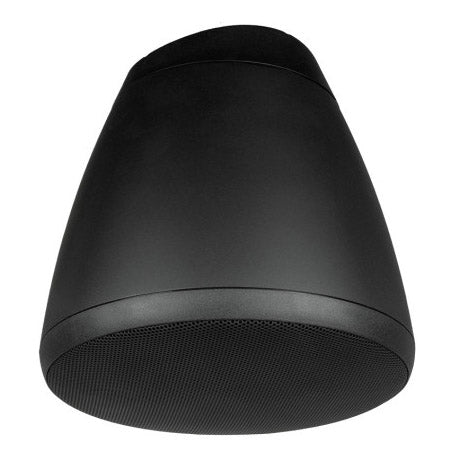

SoundTube HP82-EZ 8-Inch Pendant Speaker

The HP82-EZ from SoundTube is an 8-Inch Pendant Speaker.

One 8.0 inch (203 mm) high power coaxial driver with BroadBeam Ring™ compression driver technology for long throw and smooth directivity. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with fiberglass reinforcement for lasting durability in indoor or outdoor applications. 16 ohm impedance for easy daisy chaining in low voltage systems. Aluminum grille with protective finish. Built-in thermal fuse. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Unit ships in eco-friendly, recyclable packaging. UL 1480 UEAY, UL 2239 and EN54-24 listed. Included accessories: hanging hardware, terminal weather boot, cover plate, and AC-RSEZ-HH-10.

SoundTube HP82-EZ Features

• One 8” (203 mm) high power coaxial driver with BroadBeamHP Ring™ technology for high frequency dispersion
• Safe for indoor and outdoor use
• Includes hanging hardware for fast and secure installation
• Speaker can be hung or mounted direct-to-conduit via locking cover plate
• Enclosure constructed of injection molded ABS with glass fiber reinforcement
• Easy access six-position rotary switch
• Aluminum grille with protective powder-coated finish
• Built-in thermal fuse
• Speaker is paintable

• HP82-EX 8" coaxial high SPL pendant speaker1
• Cover plate1
• Hanging hardware1
• Weather plug1

• Source Inputs4 Pin Ceramic Terminal
• Coverage Angle135° (±6dB @ 2kHz)
• Crossover Frequency2.5 kHz
• Frequency Response
  • ±10 dB: 80 Hz - 22,000 Hz
  • ±3 dB: 110 Hz - 22,000 Hz
• Max Continuous Power RMS64 W
• Max Program Power128 W
• Nominal Impedance16 Ω
• Low Frequency Voice Coil1.5"
• Tweeter Driver1.38" Titanium Compression Driver w/ Waveguide
• Woofer Driver8" Treated Paper Cone w/ Cloth Surround
• Tap Selectorrotary switch
• Transformer Taps (25V/70V/100V)8W/64W/64W
• Grille Propertiesaluminum, powder-coated
• Enclosure PropertiesPorted, Reinforced ABS
• Height12.9"
• Width12.83"
