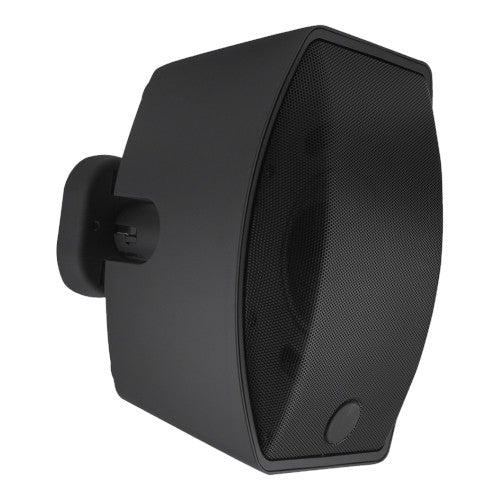

SoundTube SM500i-II-WX 5.25-Inch Surface Mount Speaker

The SoundTube SM500I-II-WX has one 5.25 inch (133 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with FerroFluid™ cooling.

SoundTube®'s WX Weather Guard technology utilizes a dual layer hydrophobic material inside the speaker grille to keep water from the drivers and internal electronics in even the most extreme weather conditions. The SM500I-II-WX utilizes the patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity as well as BroadBeam® waveguide technology to deliver a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker. The speaker's 86.0 dB average sensitivity offers high output capabilities and reduced amplification costs and the six-position selectable tap switch for 25-, 70.7- and 100-volt applications provides easy access. The included SM500i-II-WX Stealth™ bracket mounting system with vertical and horizontal pivoting allow the SM500i-II-WX to be aimed anywhere within the installation space and the low profile enclosure design keeps the speaker close to the wall. Safety cable with speaker mounting bolt, Euroblock connector, wall mount bracket and terminal weather boot are included. IP-Rating: IP44.

SoundTube SM500i-II Features

• 5.25 inch (133 mm) polypropylene woofer
• 1.0 inch (25 mm) convex titanium tweeter
• 86.0 dB average sensitivity
• 6-position selectable tap switch for 25-, 70.7- and 100-volt applications

• SM500i-II 5.25" Coaxial Surface Mount Speaker1
• Euroblock1
• Mounting Hardware1
• Safety Cable1
• Terminal Weather Boot1

• UPC 644216203505
• Manufacturer SoundTube
• Manufacturer's Category SMi Surface Mount
• Height 11.4 in / 289.6 mm
• Width/Diameter 8.36 in / 212.3 mm
• Shipping Weight 10.5 lbs / 4.76 kg
• Carton Height 12.25 in / 311.15 mm
• Carton Length 13.5 in / 342.9 mm
• Carton Width 10.5 in / 266.7 mm
• Certifications CE, RoHS, UL1480A
• Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
• Enclosure Volume 349.6 cu in / 5728.92 cu cm
• Source Inputs 4 Pin 5.08mm Euroblock
• Crossover Frequency 3.0 kHz
• Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 4.6 and 9.8
• Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 5.6dB and 9.9dB
• Frequency Response (± 10 dB) 60 Hz - 22 kHz
• Frequency Response (± 3 dB) 86 Hz - 22 kHz
• Grille Properties Aluminum, Powder-Coated, Weatherproof
• Low Frequency Voice Coil 1 in / 25.4 mm
• Low Pass Crossover 12 dB per octave 2nd order
• Max. Continuous Power RMS 75W
• Max. Program Power 150 W
• Minimum Impedance (Ω Ohms) 4 Ω
• Mounting Depth 10.48 in / 266.2 mm
• Network Type: High Pass 12 dB per octave 2nd order
• Nominal Impedance (Ω Ohms) 4 Ω
• Tweeter Driver 1" Convex Aluminum w/ BroadBeam® Waveguide
• Woofer Driver 5.25" Polypropylene
• Sensitivity dB @ 1W/1M 83 dB
• Sensitivity dB @ 2.83V/1M 86 dB
• Tap Selector Rotary Switch
• Transformer Options 25 / 70.7 / 100 V, 4 Ohm direct
• Transformer Taps (25V/70.0V/100V) 8W/64W/64W
