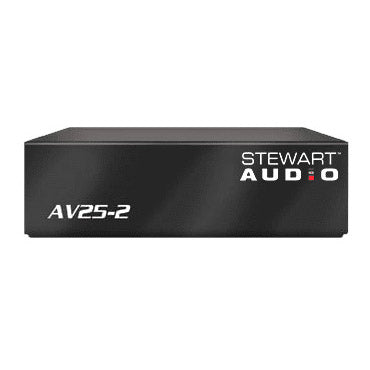

The sub compact AV25 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV25 allows amplification to be located in places off limits to normal amplifiers without compromising sound or power. Like all Stewart products, the AV25 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology™ (SSPT™) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.
2 channel stereo amplifier in a subcompact, 1/4 rack form factor. This amplifier is plenum rated for above-ceiling applications and uses our Signal Sense Technology for Energy Star compliance.
Stewart Audio AV25-2 Features
- Music and fire alarm muting
- Clean full-range dynamic power
- Signal Detect trigger for sleep & wake up
- Multiple mounting options
- External inline power supply
- AV25-2 2-Channel Subcompact Amplifier1
- Three Year Warranty1
- 4 Ohm Stereo Power35W
- 8 Ohm Stereo Power 25W
- Frequency Response (+0, -3dB, 1W) 30Hz – 20kHz
- Power Bandwidth (+3, -3 dB) 30Hz – 30kHz
- THD+N <.1% @ Full Power
- Signal to noise ratio >100dB
- External Mute +5 to +12VDC
- Slew Rate 30V/microsecond
- Input Sensitivity .5V (-6 dBV)
- Standard Voltage Gain 28X (26.5dB)
- Input Impedance (Balanced/Unbalanced) 20kΩ/10kΩ
- Standby, Idle Current Draw, 1/8 Power Draw 0.005/0.01/0.15 Amps)
- Class D
- Input Connectors Euro Block
- Output Connectors Euro Block
- Power Supply External in-line 48VDC (Included)
- Cooling Convection-Cooling (No fans)
- Controls Level
- LED Indicators Power, Signal Present, & Clip
- Construction Aluminum Chassis
- Dimensions (HxWxD) 1.25″H x 4.35″W x 3.2″D
- Weight <.37 lbs (0.16kg)
- Plenum Rating UL 2043 Approved
