For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.
Symetrix xIn 4 Features
- Designed for Use with Symetrix Dante-enabled DSPs
- Software Setup Using Composer
- Low Cost Way to Increase System Analog I/O Capacity
- Ultra Low Latency – No Audible Delays
- Top of the Line Specifications

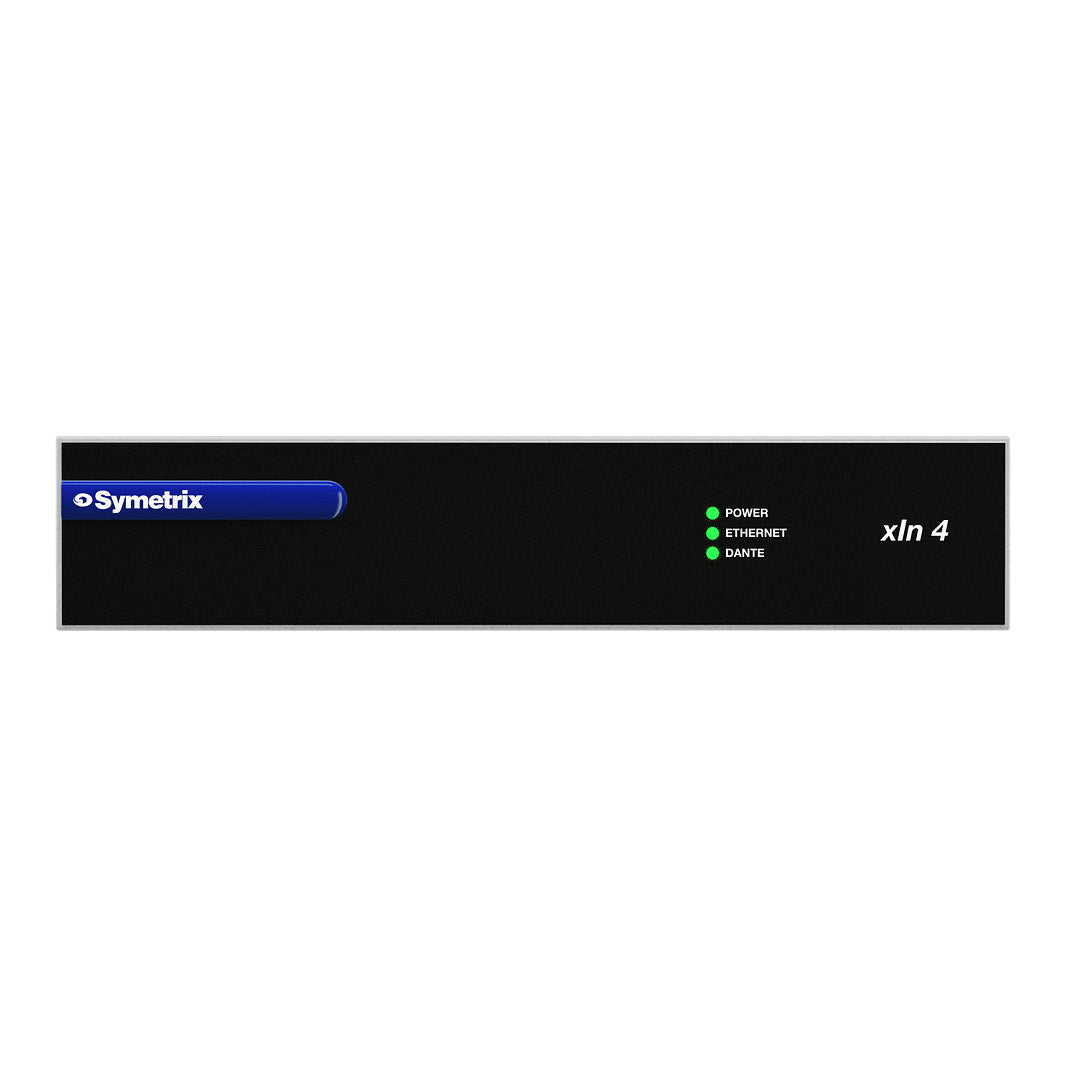

- xIn 4 Dante I/O Audio Expander1
- Analog Inputs
- Frequency Response: 20 Hz – 20 kHz, ± 0.5 dB.
- Channel Separation: > 111 dB @ 1 kHz, +24 dBu.
- Connectors: 3.5 mm Phoenix® connectors.
- Number of Inputs: Four (4) switchable balanced mic or line level.
- Nominal Input Level: +4 dBu with 20 dB of headroom.
- Maximum Input Level: +23 dBu.
- Mic pre-amp gain: 0, 11.8, 24, 44 or 54 dB switchable.
- Mic pre-amp EIN: < -127dB with 150 ohm source impedance.
- CMRR: > 76 dB @ 1 kHz, unity gain.
- Input impedance: 8k Ohms balanced, 4k Ohms unbalanced.
- Phantom power (per input): +48 VDC @ 10 mA maximum.
- Dynamic range: > 116 dB, A-weighted.
- THD + Noise: < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
- Latency: 0.28 mS.
- System
- Sampling Rate: 48 kHz, ± 100 ppm.
- Dante Cable: Standard CAT6, maximum device-to-device length = 100 meters.
- Mechanical
- Space Required: Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
- Electrical: PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz).
- Ventilation: Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
- Certifications or Compliance: UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS.
- Shipping Weight: 4.4 lbs. (2.0 kg)
