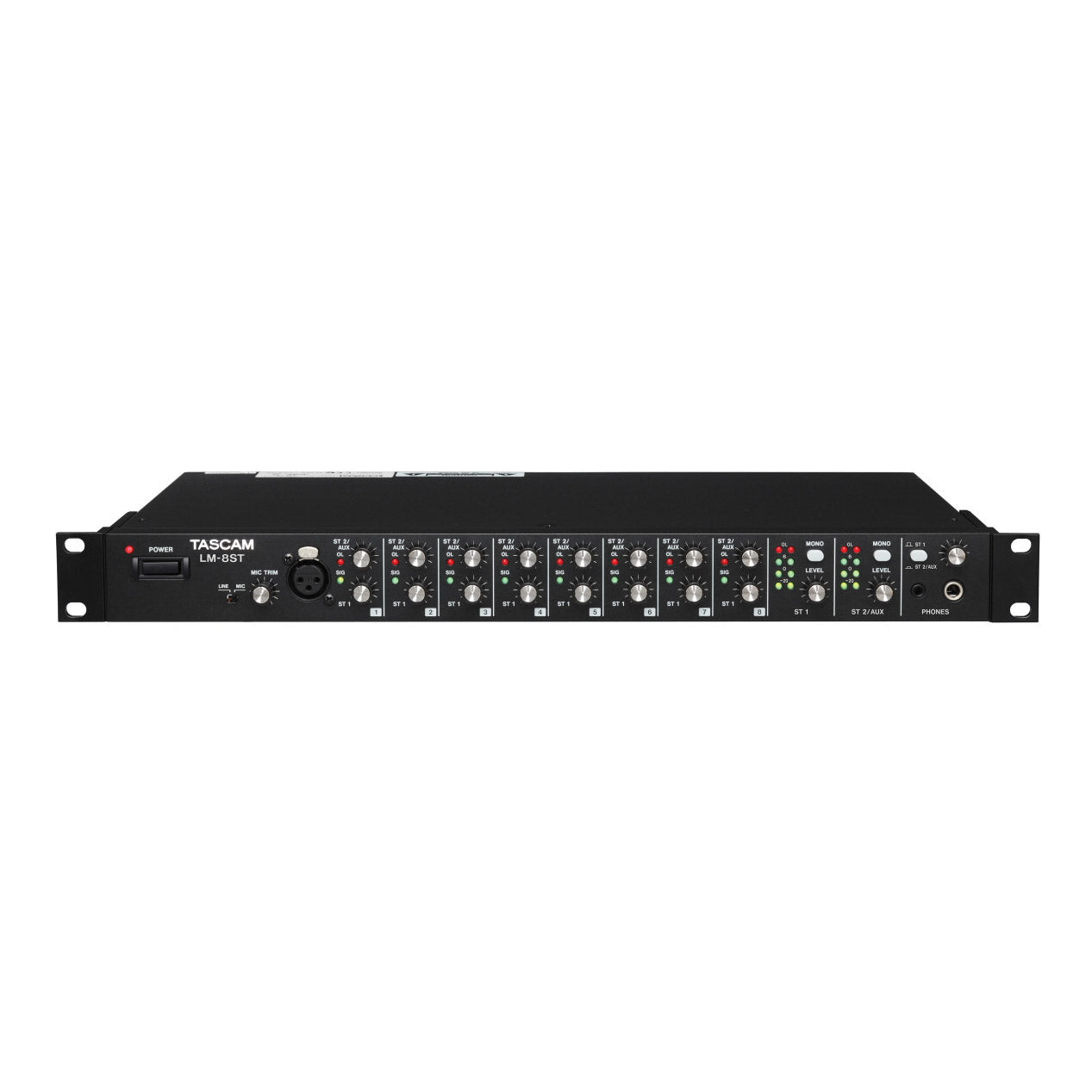

The TASCAM LM-8ST is a 1-space rackmountable line mixer for installation, studio submixing, keyboardists or anyone looking for a great-sounding mix. Eight pairs of balanced 1/4" TRS inputs - switchable from +4 or -10dB - can be bussed to a pair of XLR balanced outputs, labeled ST1 and ST2/AUX. Pre or post-fader bussing is available for the alternate buss, and master output level controls and metering keep signals under control. A microphone input is also provided for announcements or performance.
Packed with high-quality audio components, the TASCAM LM-8ST is perfect for any live performance or installation.
TASCAM LM-8ST Features
- 8 stereo channel / 4-buss line mixer
- (8) stereo 1/4" TRS balanced inputs with -10/+4dB switch
- 1U rack mountable
- Mic input with trim control on front panel
- 2-segment LED meter per channel
- ST1 and ST2/AUX level control per channel
- ST1 and ST2/AUX master level controls
- Each channel switchable to ST2 (pre fader) or AUX (post) output
- 1/4" and 1/8" stereo headphone outputs
- XLR balanced ouptuts for ST1 and ST2/AUX
- Stereo balanced buss output/input for cascade
- Ground lift switch and terminal
- LM-8ST Stereo 8-Channel Line Mixer1
- Power cord1
- Rackmounting screw kit1
- Owner's manual (with warranty)1
- Audio Inputs/Outputs
- MIC IN
- Connector: XLR-3-31 (1: GND, 2: HOT: 3: COLD) × 1
- Input impedance: 2.4kΩ
- Nominal input level: –58dBu (1mV) to –12dBu (195mV)
- Maximum input level: +10dBu (2.45V)
- STEREO IN
- Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 8 pairs
- Input impedance: 16kΩ
- Nominal input level: +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- MASTER BUSS IN
- Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair
- Input impedance: 16kΩ
- Nominal input level: +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- ST1, ST2/AUX OUT
- Connector: XLR-3-32 Phone jack (1: GND, 2: HOT, 3: COLD) × 2 pairs
- Input impedance: 94Ω
- Nominal input level: +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- ST1, ST2/AUX OUT
- Connector: RCA Pin jack × 2 pairs
- Input impedance: 200Ω
- Nominal input level: –10dBu (0.3V)
- Maximum input level: +10dBu (3.16V)
- BUSS OUT
- Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair
- Input impedance: 94Ω
- Nominal input level: +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- PHONES OUT
- Connector: 1/4" (6.3mm) Stereo Phone jack × 1
- Maximum output level: 250mW + 250mW (32Ω)
- MIC IN
- PowerAC 100 - 240V, 50/60Hz
- Power Consumption15W
- Dimensions (WxHxD)19×1.73×11" (482×44×280 mm)
- Weight8.4 lbs (3.8 kg)
