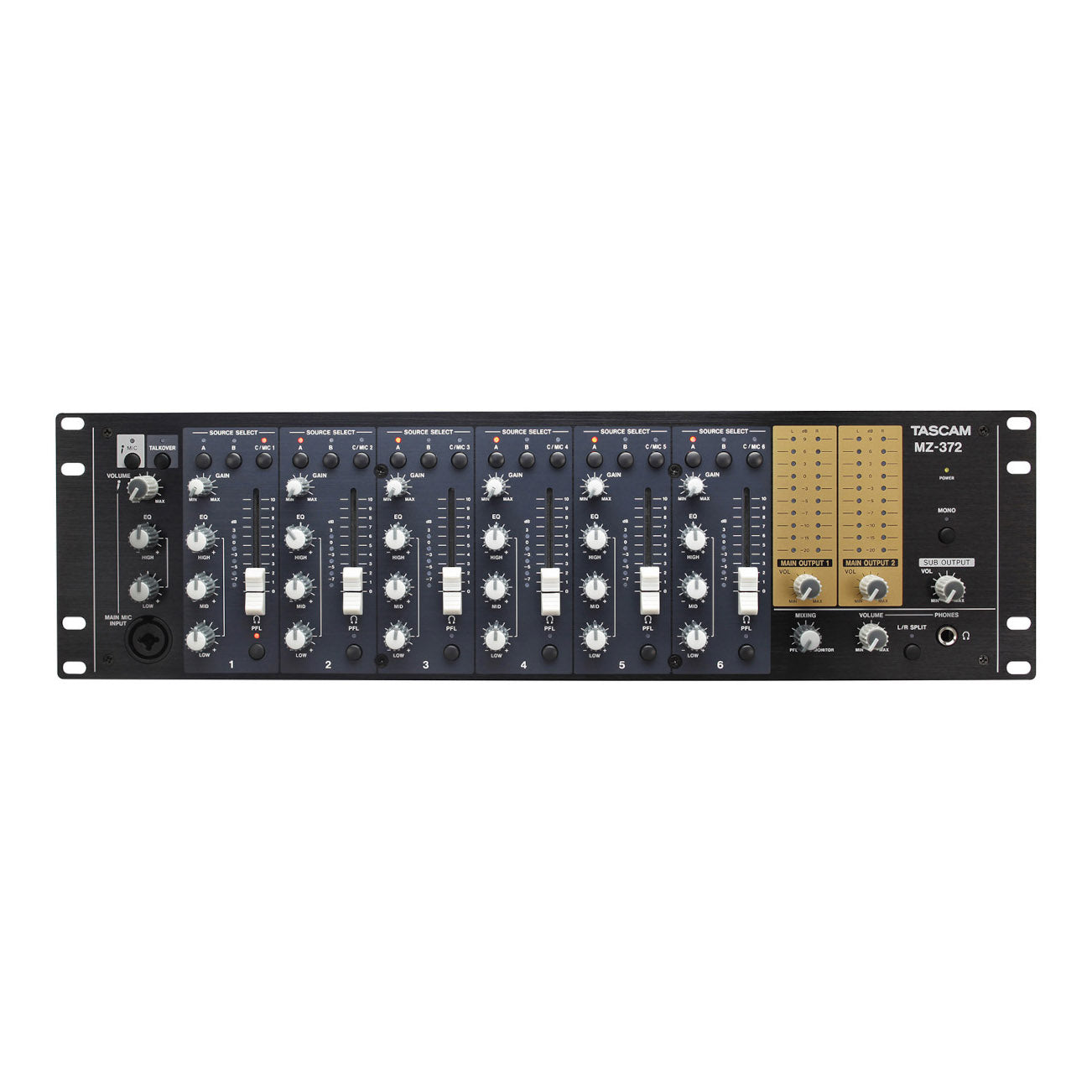

TASCAM MZ-372 Industrial-grade Audio Zone Mixer

The MZ-372 allows multiple audio sources (19 total) to be mixed, muted, and routed to 2 redundant outputs, controlled by familiar volume sliders and assignment buttons. Input signals can be inserted via 6 audio channels, each consisting of 2 sets of unbalanced RCA stereo pairs, and 6 XLR inputs for a total of 12 sets of RCA inputs and 6 XLR inputs. In addition, channels 2/3/4 can be set to accommodate phono-level signals for use with a turntable. Lastly, and located conveniently on the front panel, one additional XLR input is available driving a studio quality mic preamp and ducking circuit for easy voiceover and announcement work.

Twin outputs each feature a combination of balanced XLR or RCA unbalanced connectors for easy integration into virtually any audio system. This flexibility allows combinations of microphones, CD/DVD/Blu-ray players, instruments - or any other audio source - to be selected or muted, and sent simultaneously to the dual outputs, each with it’s own volume control. Finally, the convenient "Talkover" function will automatically lower any mixed channel source so the microphone connected to the front panel can easily be can be heard in whichever zones you choose.

Familiar volume sliders, switches/buttons, EQ knobs, and mute buttons make the MZ-372 simple and fast to operate and set up. There is even a master recording stereo output, which can send audio to an external recorder which makes event or music performance capturing easy. The Booth outputs provide another stereo feed with independent control for additional monitoring.

TASCAM MZ-372 Features

• Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
• Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input "sets"
• Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
• Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
• Separate stereo booth, recording, and headphone outputs each with independent control
• One additional mic-compatible XLR input on the front panel with "Talkover" function automatically lowering source audio
• Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
• Compact 3U rack mount design

• MZ-372 Industrial-grade Audio Zone Mixer1
• AC adapter (TASCAM PS-M1524)1
• Cord for AC adapter (JAPAN USA/EUROPE)1
• Rackmount screw kit1
• Owner's Manual (including warranty)1

• Audio inputs
  • MAIN MIC INPUT (Balanced)
    • Connectors XLR 3-31 / 1/4" (6.3mm) TRS combo jack × 1; (1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)
    • Nominal input level
      • VOLUME knob at MAX: –65dBu
      • VOLUME knob at MIN: –30dBu
    • Input impedance: 33kΩ
  • MIC INPUTS (Balanced)
    • Connectors: XLR 3-31 × 6 (1: GND, 2: HOT, 3: COLD)
    • Set to MIC
      • Maximum input level: –30dBu
      • Minimum input level: –65dBu
    • Input impedance: 33kΩ
    • Set to LINE
      • Maximum input level: –1dBu
      • Minimum input level: 20dBu
    • Input impedance: 22kΩ
  • LINE INPUTS (Unbalanced)
    • Connectors: RCA Pin jack × 12 pairs
    • Nominal input level: –10dBV
    • Maximum input level: 10dBV
    • Input impedance: 22kΩ
• Audio outputs
  • MAIN OUTPUTS (Unbalanced)
    • Connectors: RCA Pin jack × 2 pairs
    • Rated output level: –10dBV
    • Maximum output level: 6dBV
    • Output impedance: 200Ω
  • MAIN OUTPUTS (Balanced)
    • Connectors: XLR 3-31 × 2 pairs (1: GND, 2: HOT, 3: COLD)
    • Rated output level: 4dBu
    • Maximum output level: 24dBu
    • Output impedance: 200Ω
  • SUB OUTPUT
    • Connectors: RCA Pin jack × 1 pair
    • Rated output level: –16 dBV
    • Maximum output level: 0dBV
    • Output impedance: 200Ω
  • MONITOR OUT
    • Connectors: RCA Pin jack × 1 pair
    • Rated output level: –16 dBV
    • Maximum output level: 0 dBV
    • Output impedance: 200Ω
  • PHONES
    • Connectors: 1/4" (6.3mm) Stereo phone jack × 1
    • Maximum output: 50mW + 50mW (into 32Ω load）
• Power
  • Dedicated AC adapter: (TASCAM PS-M1524)
  • Input voltage: AC 100 - 240V, 50/60Hz
  • Output voltage: DC 15V
  • Output current: 2.4A
• Power consumption35W
• Dimensions (W×H×D)19x5.2x3.7" (482x132x93.2mm)
• Weight7.1 lbs (3.2 kg)
• Audio performance
  • Frequency response: 20Hz to 20kHz
  • Distortion: 0.03% or less
  • S/N Ratio: 80dB
  • Crosstalk: 65dB
