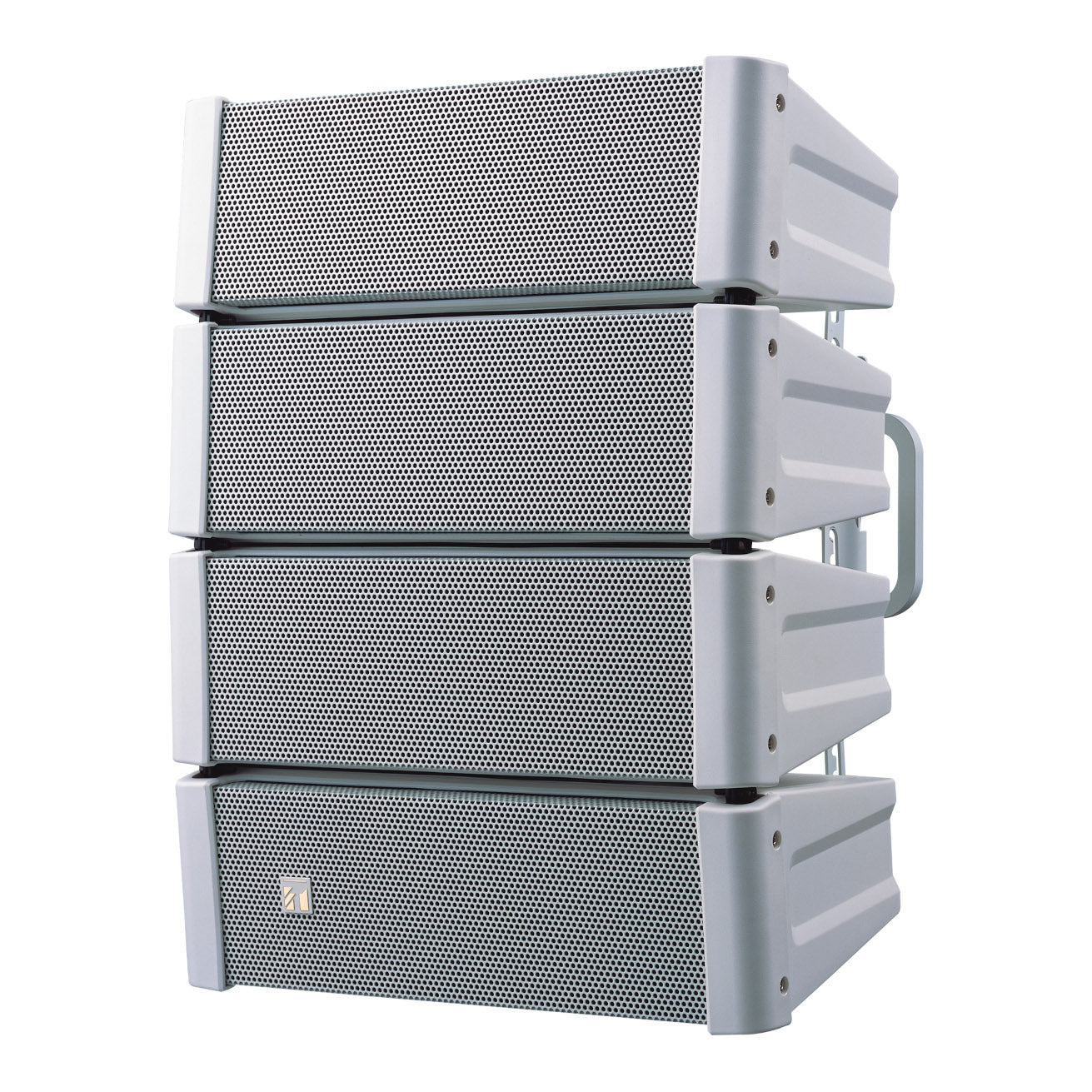

TOA HX-5W Variable Dispersion Speaker

The HX-5W from TOA is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5W is designed for indoor use.

TOA HX-5W Features

• 2-way compact speaker system
• Permits both constant directivity control over a wide frequency range and changes in directivity
• Creates clear sound even in difficult audio environments

• HX-5W variable dispersion speaker1

• Enclosurebass-reflex type
• Power Handling Capacity
  • Continuous Pink Noise: 200W
  • Continuous Program: 600W
• Rated Impednace8 Ω
• Sensitivity96 dB (60° mode), 97 dB (45° mode), 98 dB (30° mode), 99 dB (15° mode)
• Frequency Response
  • 70 Hz - 20 kHz (-10 dB) (60%%d mode), 75 Hz - 20 kHz (-10 dB) (45%%d mod]e)
  • 80 Hz - 20 kHz (-10 dB) (30%%d mode), 85 Hz - 20 kHz (-10 dB) (15%%d mode)
• Crossover Frequency4 kHz
• Directivity Angle
  • Horizontal: 100゜ (2 kHz or more)
  • Vertical: 60° (800 Hz or more), 45° (1.2 kHz or more), 30° (1.6 kHz or more), 15° (3.2 kHz or more) variable
• Speaker ComponentLow frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12
• Input TerminalSpeakon NL4MP × 2 and M4 screw terminal
• Dimensions (WxHxD)16.06" x 21.49" x 13.46"
• Weight35.27 pounds
