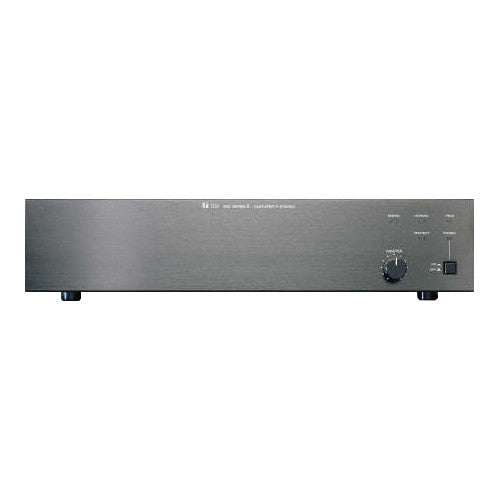

The P-906MK2 Power Amplifier delivers up to 60 watts of output power. The power amplifier has an input port to accept one plug-in module.
TOA P-906MK2 Features
- Power Amplifier
- Delivers up to 60W of output power
- Input port acceps one plug-in module
- Volume control cover included
- TOA P-906MK2 Single-Channel 60W Power Amplifier1
- Volume control cover (YA-920)1
- TypePower amplifier
- Power RequirementAC mains, 120 V, 60 Hz
- Power Consumption100 W
- Output Power60 W RMS
- Power Band Width
- (D) 20 〜 20,000 Hz, 0.5% THD
- (T) 50 〜 20,000 Hz, 0.5% THD
- Frequency Response
- (D) 20 〜 20,000 Hz, ±1 dB
- (T) 20 〜 15,000 Hz, ±1 dB, (T) 20 〜 20,000 Hz, +1 dB, -3 dB
- T.H.D0.01% at 1 kHz, rated output
- Inputs
- One Input Port : Port accepts any input module expect T-01.
- One Direct Input
- ※ Use of direct input prohibits use of modular input port
- Input Sensitivity /Impedance
- Input Port : 100 mV or 1000 mV (switchable)/10 kΩ
- Direct Input : 100 mV or 1000 mV (switchable)/10 kΩ
- Outputs(T)=Transformer (D)=Direct
- Main (T) : 8 Ω, 25 and 70 volts, balanced
- Main (D) : 4 Ω, unbalanced
- Output Regulation(1kHz)
- (D) Less than 0.5 dB, no load to full load
- (T) Less than 1.0 dB, no load to full load
- S/N Ratio(Band Pass 20 〜 20,000 Hz)
- Input level switch in 0 dBV (1000 mV) position : 108 dB
- Input level switch in -20 dBV (100 mV) position : 90 dB
- Controls
- 1 Input gain control 1 Input level switch
- 1 Power ON/OFF switch 1 Low-Cut switch
- Indicators1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
- ProtectionSelf-protection, with AC fuse (inside)
- Connectors
- Input : Card-edge connector and screw-terminal strip
- Output : Screw-terminal strip
- AC outlet : 3-pin grounding type
- AC power cord/plug : SJT, 3-prong type
- Temperature Range-10℃ 〜 +60℃ (12゜F 〜 140゜F)
- FinishBlack
- Dimensions(W×H×D)420(16.54") × 99.1(3.90") × 358(14.09") mm
- Weight9.1 kg (20.06 lb.)
