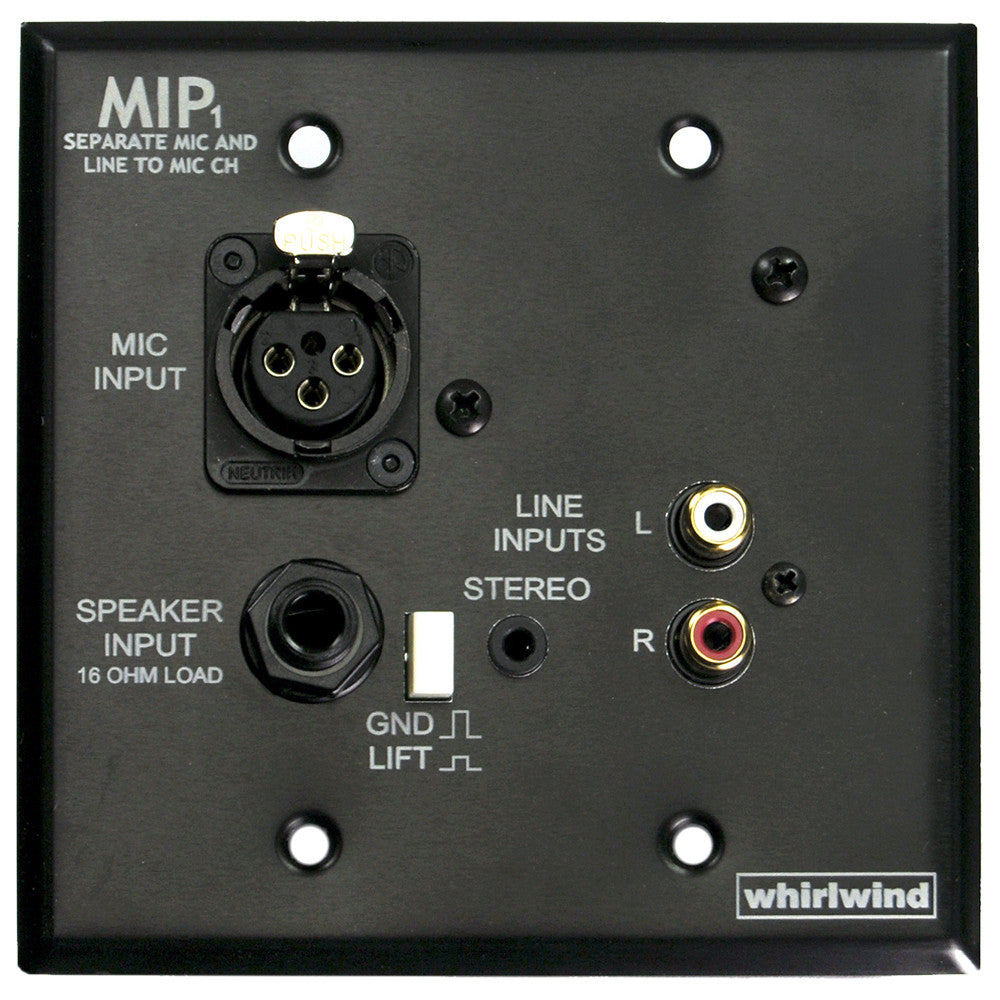

The MIP1 Media Input Wall Plate accepts stereo RCA, 3.5mm TRS inputs (summed to mono) or a low Wattage power amplifier output i.e. projector’s speaker out. A 16 Ohm 5 Watt load resistor is provided. The signal is converted with a Whirlwind DImax transformer to Low-Z mic level and is output via rear mounted screw terminals. A ground lift is provided to break the ground connection from the line in to the output. Additionally a female XLR is provided with rear screw terminals.
Whirlwind MIP1 Features
- Available in black and white finish (white not pictured)
- 16 Ohm 5 Watt load resistor
- DImax transformer
- Ground lift
- Female XLR with rear screw terminals
- MIP1 Media Input Wall Plate1
